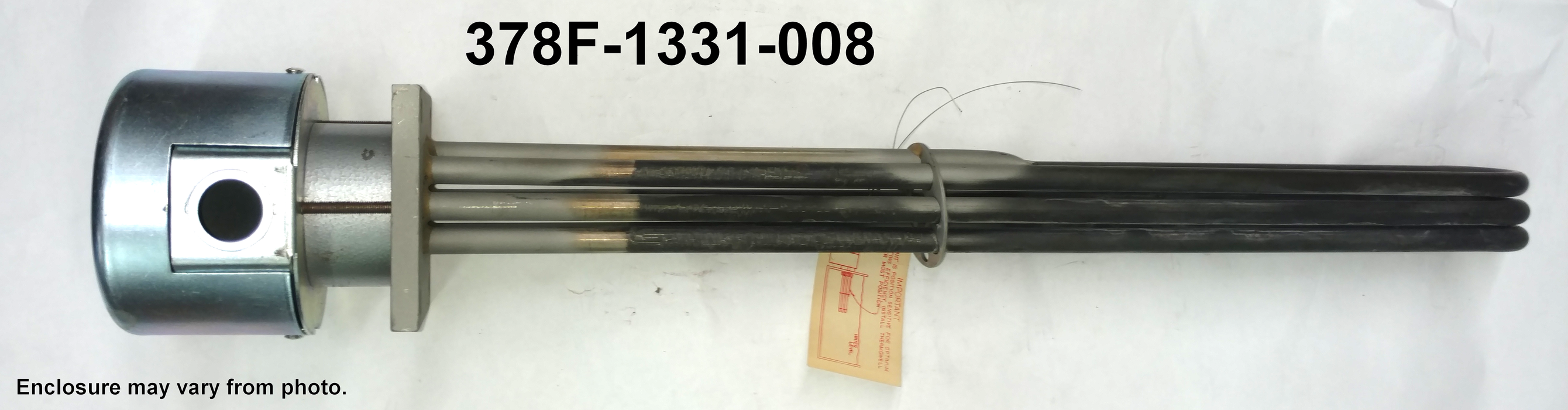

FA-7543 Hobart 7500W 240V Commercial Dishwasher Equivalent Replacement Element

List price $ 373.55

Therm Coil Drawing No.: 378F-1331-008 Therm Coil Model No.: FA-7543

Description

7.5KW @ 240V, 3-Phase
Immersion Length = 20"
3-1/2" SQ. Steel Flange, Un-regulated (no thermostat)
General Purpose Enclosure
#10-32 Stud Terminals
Stainless Steel Thermowell For 3/8" I.D. Thermosta bulbs
Gasket included.

Therm Coil MFG. Co. is not affiliated with Hobart Corporation, or any other listed manufacturers or their affiliates.

We do not assert nor imply that any product sold on this page is in any way an OEM product.

Note: Image may not represent exact item.
