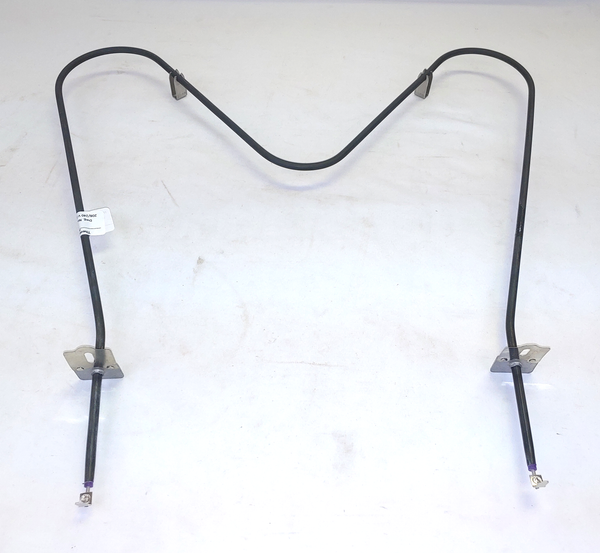

Model TC-775: .260" DIA. Frigidaire / Kelvinator / Kenmore 5303051519 & Whirlpool WP865940 Equivalent Range/Oven Bake Replacement Element, 2,400/1,800W @ 240V/208V

Call for Availability
Original price $ 73.20
Original price $ 73.20 - Original price $ 73.20
Original price $ 73.20
Current price $ 62.22
$ 62.22 - $ 62.22
Current price $ 62.22
Call for Availability

Therm Coil Drawing No.: 366R-3056-003      Therm Coil Model No.: TC-775


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Frigidaire / Kelvinator / Kenmore: 5303051519, 1312853, 1311298, 1312852, 1312854, 08002858, 09990061, 3051519, 316075101, 3467, 8002858

Whirlpool: WP865940, 865940, 14210578, 4165288, 4165317, 4371352, 4371426, 868963, 868964, 261913

Other: CH775, TJ90CH775, TJCH775, 455988, 458855, CH775, ERB775, RP775, TS775, YCH775, AP6326742, AP4502600, AH453960, EA453960, F83-446, K001311298, K001312853, K1311298, K1312852, K1312853, PS453960, PS11746803, Q000212004, RP775, TS775, AP4601463, AP4601462, AP6013577, AP2136868.

  • NOTE: Element TC-775 Is A .260" DIA. Element.  If You Would Prefer The .315" DIA. Element, Please See: TC-4878 / 366R-3014-003.  These Two Units Are Functionally Interchangeable For The Appliances That They Are Compatible With, Though The .315" DIA. Unit Has A Higher Wattage Rating.
  • 2400 W / 1800 W @ 240 V / 208 V Rating

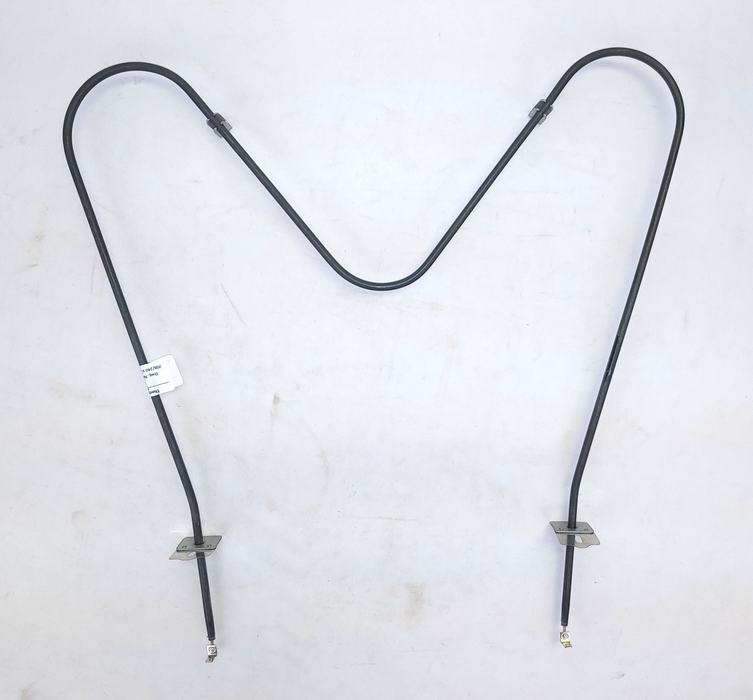

  • Approximate Overall Size: 19-1/4" Width* x 15" Length From Back Of Element To Mounting Brackets x 3-3/4" Insert From Bracket To Terminal Ends x 13" Center-to-Center Terminal Width* (*Due to the flexible nature of this element, the dimensions marked may vary by up to ±1" but are readily restored during installation).

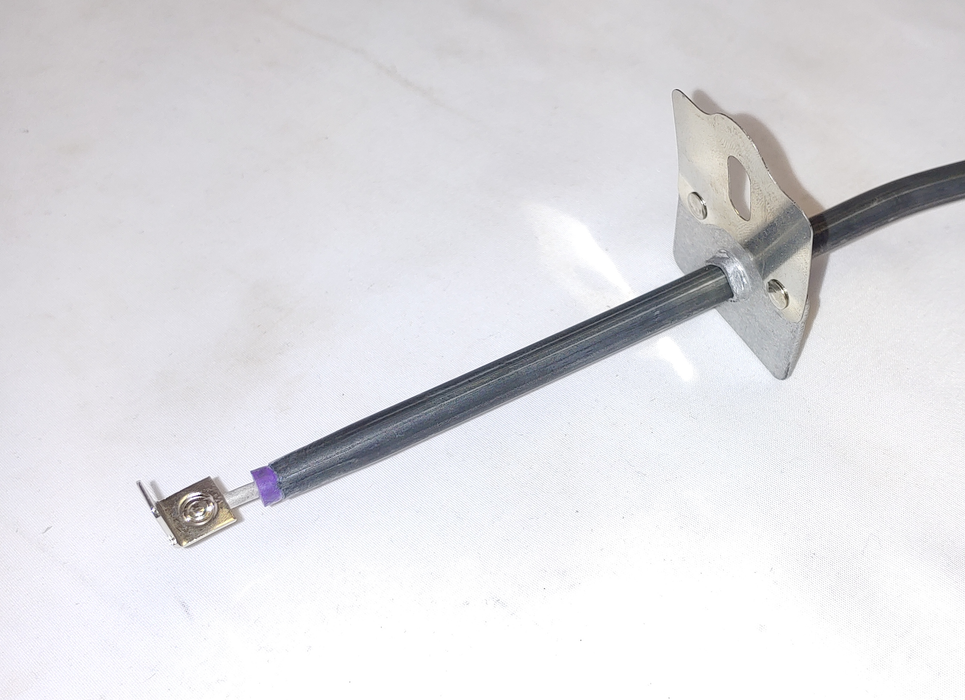

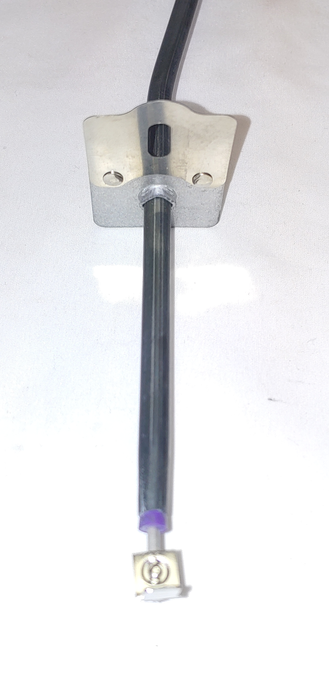

  • Right-Angle Male Quick-Connect Push-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - it is used on hundreds of models.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
