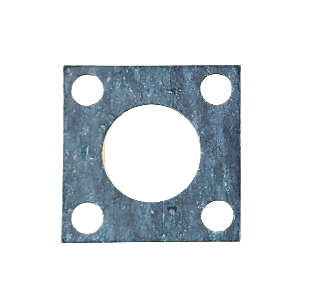

Garlock 3000 Gasket (12 Pack) For 378F-1417 Hubbell-Equivalent Boiler Replacement Elements

These replacement gaskets may be used with our 378F-1417 Series boiler elements, which are equivalent replacements for Hubbell elements.

These replacement gaskets are available for purchase in both 6 pack and 12 pack quantities.

• Outer Diameter: 2-1/2" Square
• Inner Diameter: 1-3/8"
• Thickness: 1/8"
• (4x) Bolt Holes: 29/64" Diameter Holes Spaced 90° Apart on a 2-1/2" Diameter Bolt Circle.
• Material: Garlock BLUE-GARD 3000

Material Properties

• Color: Blue

• Composition: Aramid fibers with a nitrile binder

• Fluid Services: Water, aliphatic hydrocarbons, oils and gasoline
• Minimum Temperature: -100°F (-73°C)
• Continuous Maximum Temperature: 400°F (205°C)
• Maximum Temperature: 700°F (371°C)
• Pressure Maximum: 1000 psig (70 bar)
• P x T Maximum: 250,000 psig x °F (8,600 bar x °C)
• Meets Specifications: ABS (American Bureau of Shipping) and BS 7531 Grade Y

Technical Specification Sheet For Garlock BLUE-GARD 3000
