GE/Hobart CF-series Equivalent Replacement Food Warmer Elements

Therm Coil Drawing No. Series: 384M-1164

Product Description

• These alloy elements are used as OEM-equivalent replacements in various food warmers including Hobart/GE models, such as CF11A, CF12, CF12A CF12B, CF13, CF701, CF711, and wherever else part numbers are applicable - See specific model part number cross reference information below!
• 1,000W to 1,600W models for 120V, 208V, and 240V Applications
• Durable Incoloy Alloy Sheath Material
• #10-32 Lug Terminals (Screws Included)

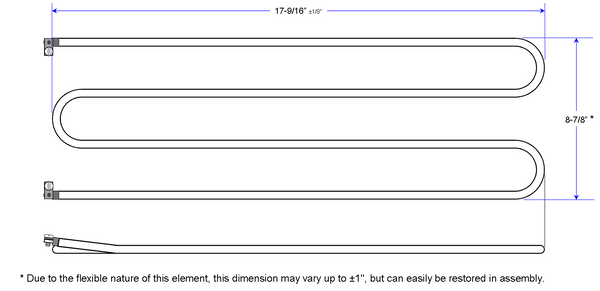

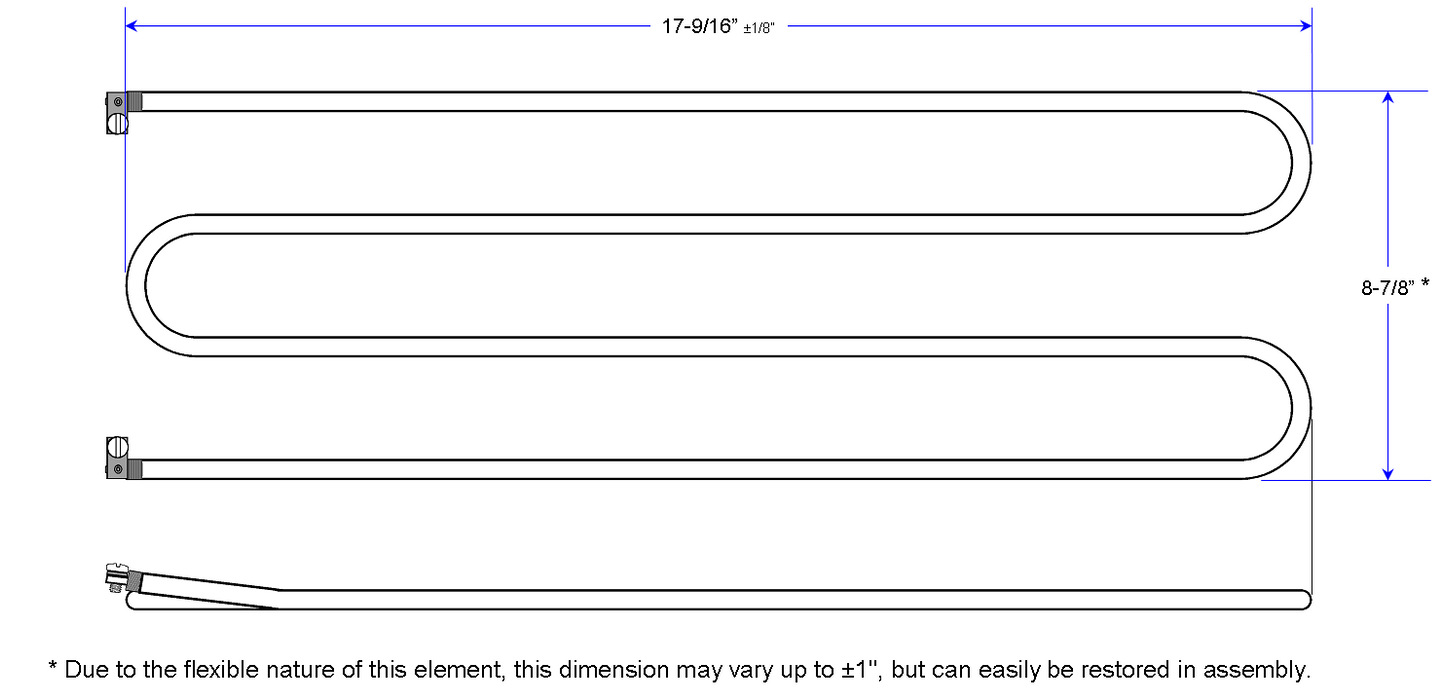

• Approximate Overall Dimensions: 18" x 8-7/8" Width* (Flexible ±1").

* Due to the flexible nature of this element, this dimension may vary up to ±1", but can easily be restored in assembly.

Please see individual Models listed below with their equivalent OEM cross-reference part numbers and specified ratings:

HELPFUL HINT: Use CTRL+F to use the search function for your part number.

Specific Model Info & Part Number Cross-Reference

Therm Coil Drawing No.: 384M-1164-001

• Rating: 1,000W @ 120V (115V)


384M-1164-001 Replaces The Following OEM Part Numbers:

General Electric (GE):

Hobart:

Teledyne Stillman:

Therm Coil Drawing No.: 384M-1164-003

• Rating: 1,000W @ 240V


384M-1164-003 Replaces The Following OEM Part Numbers:

 General Electric (GE):

Hobart:

Therm Coil Drawing No.: 384M-1164-004

• Rating: 1,600W @ 120V (115V)


384M-1164-004 Replaces The Following OEM Part Numbers:

 General Electric (GE):

Hobart:

Therm Coil Drawing No.: 384M-1164-006

• Rating: 1,600W @ 240V


384M-1164-006 Replaces The Following OEM Part Numbers:

 General Electric (GE):

Hobart:

Therm Coil Drawing No.: 384M-1164-007

• This element is dual-rated to function as an equivalent replacement in various food warmers, including many GE/Hobart models - See part number cross reference information below!
• Rating: 1,000W / 1,300W @ 208V / 240V

384M-1164-007 Replaces The Following OEM Part Numbers:

General Electric (GE):

Hobart:

Disclaimers: Hobart is a registered trademarks of Hobart Corporation and GE is a registered trademark of General Electric Company.

  Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or affiliates, and do not assert nor imply that the product sold on this page is OEM parts.  Therm Coil MFG. Co. parts are compatible with various brand name warmers.
