GSU-502-208: 5,000 W @ 208 VAC, Single-phase, Copper Urn Heater (No Cutout)

Therm Coil Model No: GSU-502-208       Therm Coil Drawing No.: 379C-2016-003

Product Description

• Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
• 5,000W (5kW) @ 208VAC, Single-Phase (24.04A)
• Copper Sheath Elements

• Bottom Mounted
• Round Brass Flange
• General Purpose Enclosure
• Without Integral Thermal Cutout
• 2-7/16” Diameter Opening In The Bottom Of The Tank Is Required To Insert The Urn Heater (Wall Thickness of Up to 1/4").

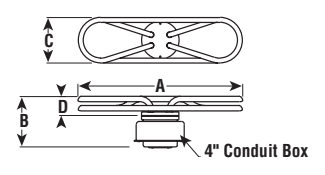

• Dimensions (See Diagram): 10" (A) x 3-11/16" (B) x 4" (C) x 1-11/32" (D)

“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”
