IMPORTANT NOTE - This element is 0.260" diameter which is larger than the OEM diameter of 0.200". This will not fit the OEM equipment unless the enclosure mounting holes are enlarged accordingly, which is why the price on these units is so low and affordable! Additionally, the larger diameter lowers the watt density, resulting in longer expected life of the element!

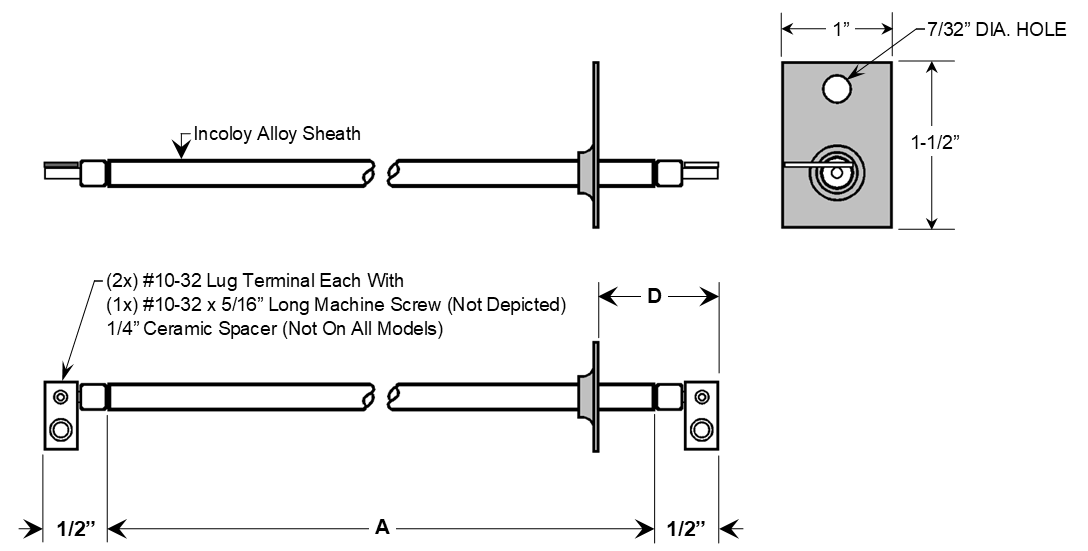

1100 Watt 115 Volt replacement element for a Hatco® warmer, with a 44" sheath length (A) and 1/2" (±1/16") sheath end to bracket (D).
Drawing Number: 374I-1001-059
Therm Coil MFG. Co. is not affiliated with Hatco Corporation, or any other listed manufacturers or their affiliates.
We do not assert nor imply that any product sold on this page is in any way an OEM product.
