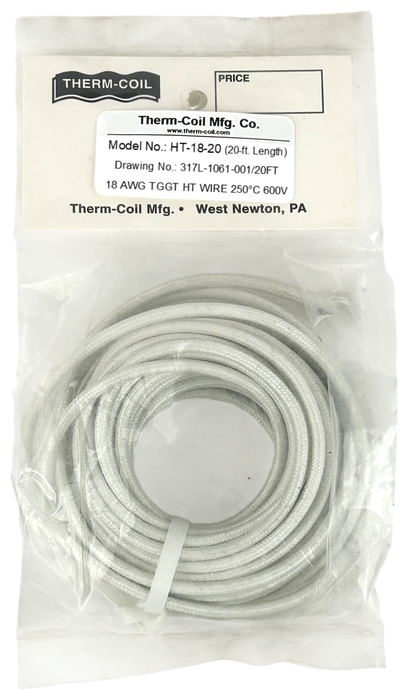

HT-18-20: 20-ft. #18 AWG TGGT High-Temperature Appliance & Industrial Wire, 600 Volts, 250°C (482°F) (Copy) (Copy)

Therm Coil Drawing No.: 317L-1061-001/25FT

Therm Coil Model No.: HT-18-20

Description

• This listing is for (1x) 20-foot length of #18 AWG TGGT High-Temperature Wire (Tan Color).
• Rated For 600V and 250°C (482°F)
• Please call 724-872-5007 to get a quote on custom lengths.

Application

• TGGT type wire is suited for use in severe, hot spot locations including industrial, commercial, and household ovens and cooking appliances and drying equipment, commonly for internal wiring.  TGGT may be used in both dry and wet applications

Features

• Crucial, High-Temperature Performance
• Superior Resistance to Abrasion, Chemicals, and Moisture
• Designed to Be Flexible Easy Routing

Conductor

• TGGT wire features a flexible, single conductor comprised of stranded, nickel-plated, annealed copper.

Insulation

• Layers of PTFE Teflon tapes covered by wrapped fiberglass yarns

Jacket

• Braided fiberglass jacket infused with a high-temperature, abrasion-resistant , and moisture-resistant saturant treatment
• Natural color is tan

Technical Information*

• Size: 18 AWG

• Voltage: 600 Volts

• Maximum Temperature: 250°C (482°F)

• Number of Conductor Strands/Strand DIA: 10/.0100"
• Insulation Thickness: .011"
• Fiberglass Serve: .008"
• Braid Thickness: .005"
• Overall Outside Diameter: .102"
• Weight: .013 lb. per ft.
• Braid Color: Tan
• U.L. Style Listed and C.S.A. Certified AWM Class I - Group A/B
• Therm Coil Drawing No.: 317L-1061-001 (25-ft., Model HT-18-25)

*Data provided on this page is subject to change based on different manufacturers' variances.
