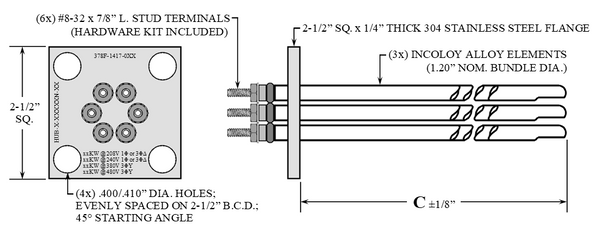

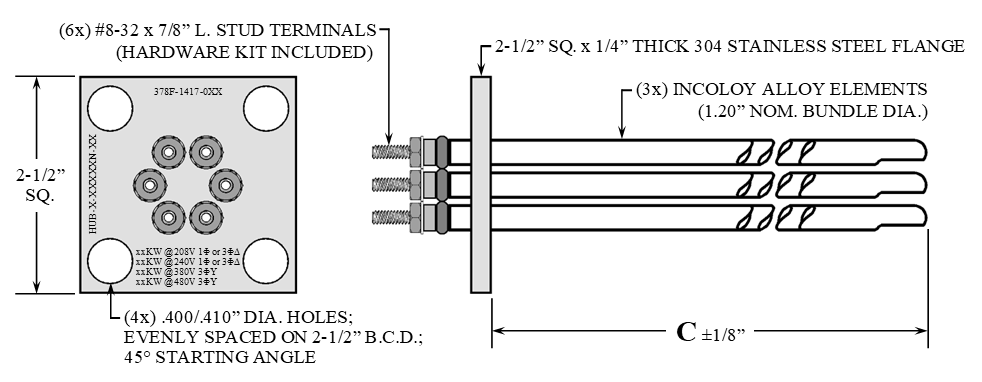

Therm Coil Drawing No.: 378F-1417-007 Therm Coil Model No: HUB-7-38683N
This Hubbell 7-38683N equivalent replacement element has a 13" immersion length (C DIM.), a 2-1/2" square by 1/4" thick stainless steel flange, Incoloy alloy sheath, and an electrical rating of:
- 8,000 Watts at 208 Volts when when Single Phase or Three Phase Delta
- 10,000 Watts at 240 Volts when when Single Phase or Three Phase Delta
- 8,500 Watts at 380 Volts when Three Phase Wye
- 12,000 Watts at 480 Volts when Three Phase Wye
This replacement element is fully compatible with Hubbell electric water heaters that require OEM part number 7-38683N and have an immersion length of 13".
NOTE: Photos are representative of this element series but the immersion length depicted (C DIM.) may differ from individual model immersion lengths.
Disclaimers: Hubbell is a registered trademarks of Hubbell Incorporated Corporation. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts. Therm Coil MFG. Co. parts are compatible with many brand name water heaters, electric boilers, steam generators, sterilizers, pressure vessels, and more.
