Jenn-Air Y707709 / Whirlpool Element G Equivalent Cooktop Grille Replacement Element, 2,800 W @ 240 V

List price $ 0.00

**(42) IN-STOCK! - Call For Quote On Price and To Order!**

Therm Coil Drawing No.: 366H-4308-001

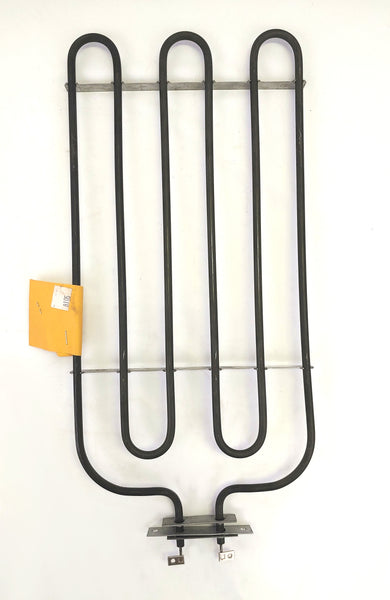

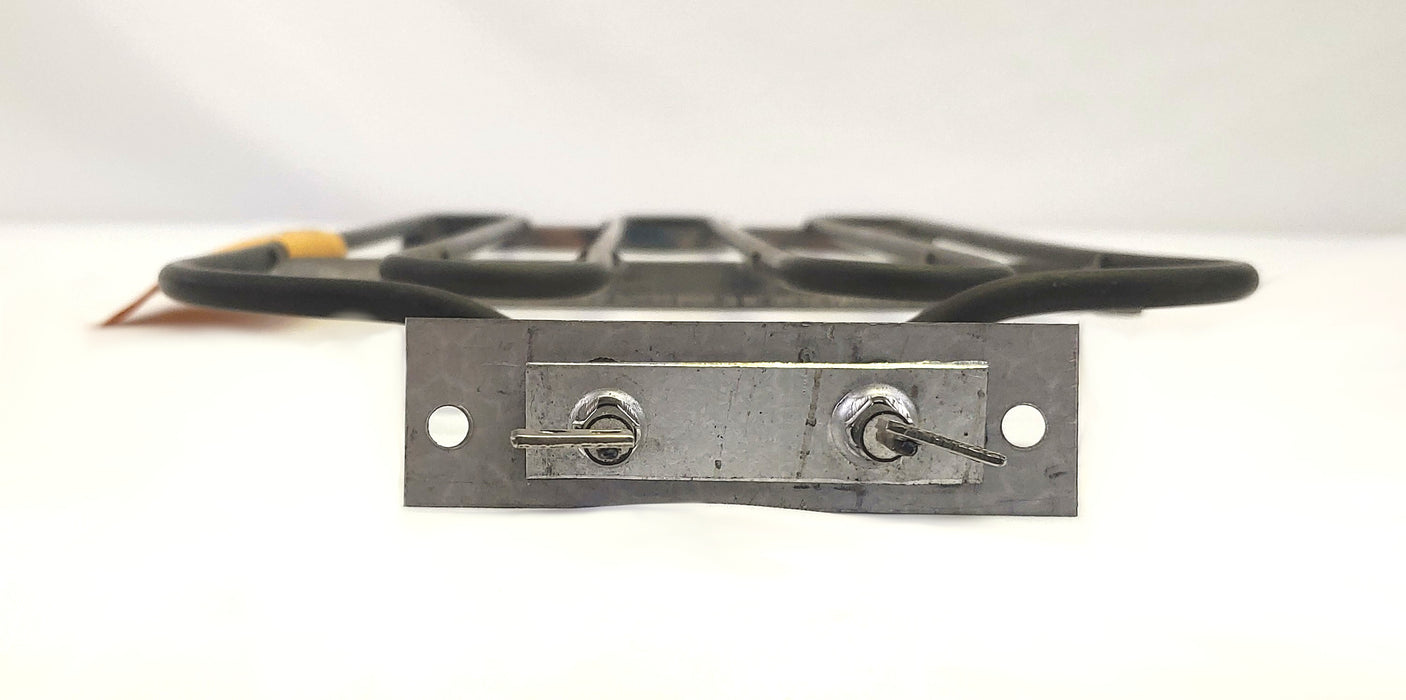

This is a replacement element used in various commercial range grills or griddles and rated 2,800W @ 240V.  This unit has screw-in lug terminals (also known as flag terminals)

  • Replacement For Part Numbers:

Jenn-Air / Whirlpool: Y707709, 7-7709, 700058, 707709

Whirlpool: Element G

Other: AP4292562, 1246994

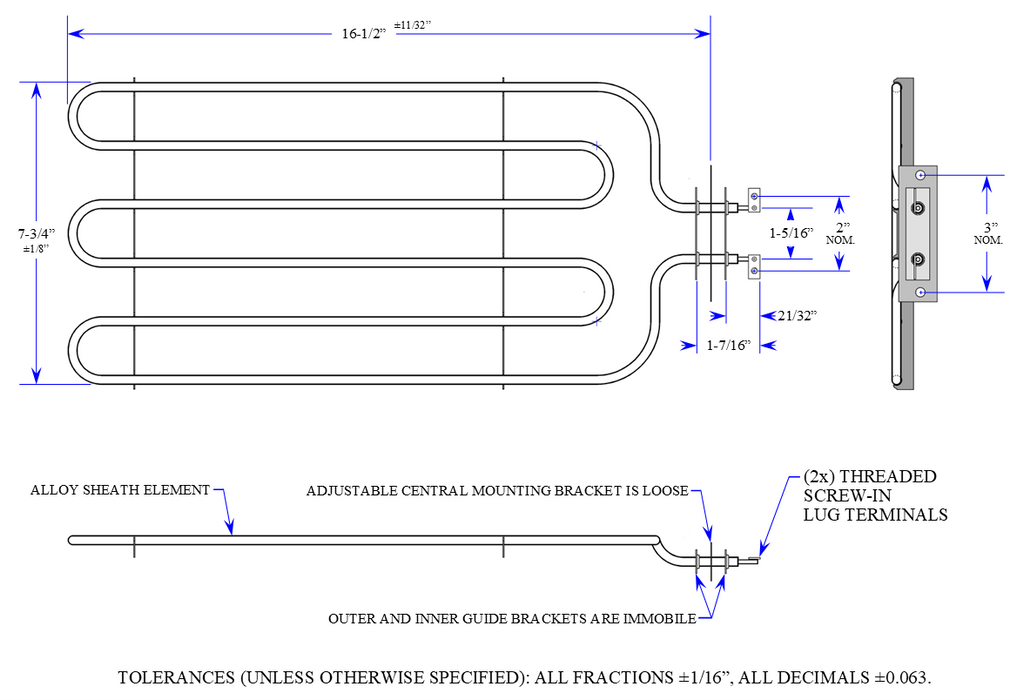

Approximate Dimensions:

  • Overall Length: 22"
  • 7-3/4" Element Width / 8" Width With Support Bracket
  • 16-1/2" to 16-3/4" Length From Front of Element to Adjustable Mounting Bracket
  • 1" Insert From Front-most Fixed Mounting Bracket to Terminal End
  • 1-7/16" Center-to-Center Terminal Distance

Used In the Following Appliance Models:

Jenn-Air 2360, 2361







Disclaimers: Jenn-Air is a registered trademark of Maytag Properties, LLC.  Whirlpool is a registered trademark of Whirlpool Properties, Inc..  Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name appliances.
