Therm Coil Drawing No.: 337T-3004-004

Therm Coil Model No: 1A22-7

TPI / Columbus Electric Model No.: 1A22-7

Description

The model 1A22-7 thermostat is for use with single-stage attic fans to regulate the temperature for the upper levels of a building.  These controls can help save energy by reducing total air conditioner usage via air circulation and cooling.

Features

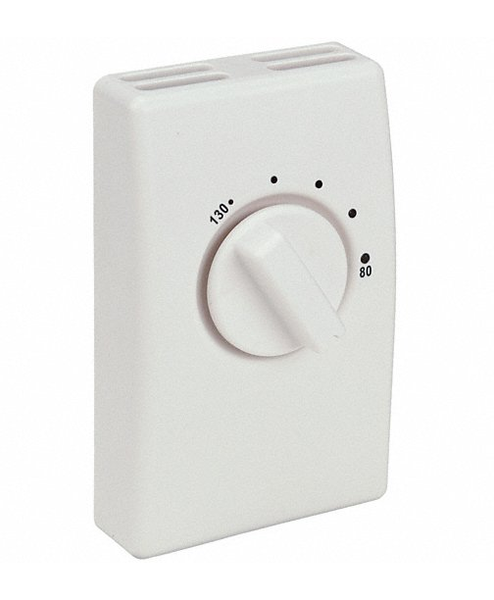

• 80°F to 130°F Temperature Range
• For Cool Only Attic Fan Applications
• Bi-Metal Temperature Sensor
• SPST Switch Action
• Junction Box Mounting Type


Specifications

• Range: 80°F - 130°F Cool Only

• Voltage: 120VAC to 240VAC
• Electrical Ratings:  7.5 Amps @ 120 VAC Full Load
                                  13.8 Amps @ 120 VAC Inductive
                                  82.8 Amps @ 240 VAC, Locked Rotor
                                  10 Amps @ 240 VAC Full Load
                                  10 Amps @ 240 VAC Inductive
                                  60 Amps @ 240 VAC, Locked Rotor
• Switch: SPST

• Switch Action: Close on Temperature Rise
• Temperature Sensor: Bi-Metal

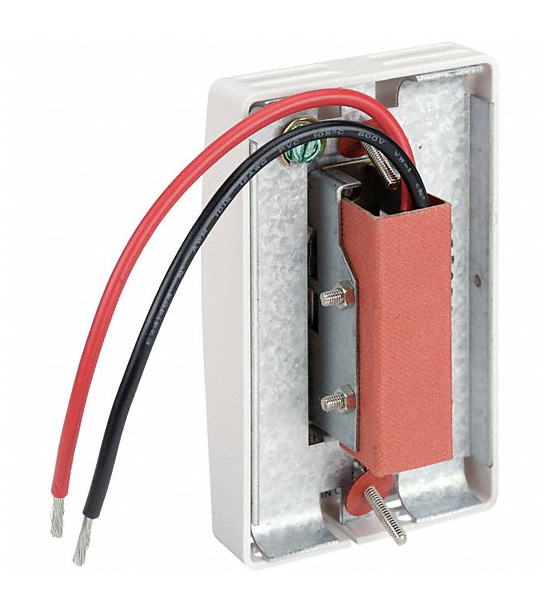

• Connections: B & R Lead Wires
• Scale: Fahrenheit

• Differential: ±4-6°F
• Control: Analog

• Dimensions, Approximate: 4-9/16" H x 2-13/16" W x 1-1/2" D
• Mount Type: Recessed, For Standard Junction Box
• Application: Residential, Commercial, and Industrial Applications

• Approvals: cETLus

Equivalent to Part Numbers:

TPI / Columbus: 1A22-7

Fantech: 1A22-7
