Model B-200A-1: Bilbee B200 Conduction Type Bi-metal Thermostat With 1-1/2" Total Height (1" Shaft Height), OFF(50°F) to 525°F

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

Therm Coil Drawing No. 337T-1601-004

Description

This conduction type thermostat has a total overall height of 1-1/2" ±1/16" (shaft height 1" ±1/16") and an operational temperature range of OFF (50°F) to 525"F. This is a non-stock item - please call 724-872-5007 to get a quote and place an order!

If you need an adjust knob for this thermostat, we carry the Eagle Plastic Devices 45KN012-GRX Knob/Dial For Bilbee B200 Series Thermostats (Drawing No. 337T-1054-002).

This type of thermostat has a heat-sensitive base that screws flush onto the heated surface, allowing it to sense the temperature through thermal conduction.  The mounting surface needs to be smooth and flat to allow for an accurate temperature reading. The temperature is controlled via an adjustment stem which in application generally have an end-user knob attached.

There is no bonded bimetal strip - instead, contacts are opened and closed by expansion of the base plate and resulting vertical movement of a thermal spring.  Along with a flush mounting to the heating surface, this ensures quick temperature response, minimal differential, and calibration stability.

Conduction type thermostats are used in many applications including hot plates, waffle irons, sandwich grills, griddles, flatirons, roasters, deep fryers, solder pots, sealing irons, casseroles, fudge cups, ovens, ironers, vulcanizers, sealing machines, and other industrial, household, and laboratory applications.

Specifications

  • Application: Heat Only
  • Maximum Voltage: 230VAC
  • Maximum Wattage: 1,600W (Wattage = Volts x Amps)
  • Calibration Tolerance: ±5°
  • Switch Type: SPST, contacts open on temperature rise
  • Temperature Range: OFF (50°F) to 525°F
  • "OFF" Minimum Control Temperature: At extreme counterclockwise stem position the unit is "OFF" and contacts will remain open in this position at temperatures down to approximately 50°F.
  • Electrical Connection Type: (2x) #6-32 Tapped Rivet Terminals

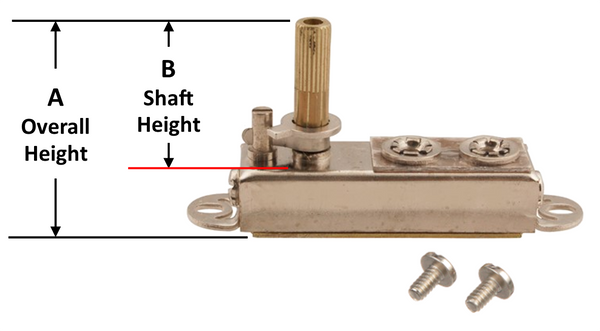

  • Overall Height (DIM. A on Diagram): 1-1/2" (±1/16")
  • Shaft Height (DIM. B on Diagram): 1" (±1/16")
  • Overall Length: 2.885"
  • Overall Width: 0.656"
  • Mount Type: Flush Mount To Surface
  • Mounting Hole Center-to-Center: 2.58" (±1/32")
Equivalent to Part Numbers of the Same Rating and Shaft Length:

Bilbee: B200 or B-200 (1-1/2" Overall Height, OFF-525°F)





Note: Image may not represent exact item.

Disclaimers:  Bilbee is a registered trademark of Bilbee Controls Inc.. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, affiliates, manufacturers, or their subsidiaries.
