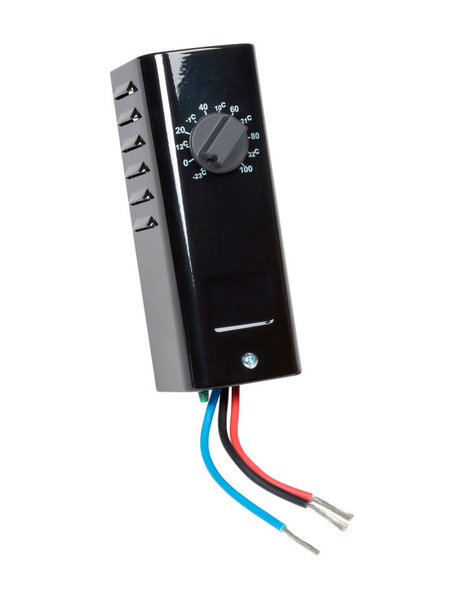

Model KTD-110: TPI KTD110 Rugged SPDT Heat or Cool Hard-Wire Bi-Metal Thermostat, -10°F to 100°F, 22 Amps @ 125-250 VAC Res.

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

Therm Coil Drawing No.: 337T-3001-001

Therm Coil Model No: KTD-110

TPI Model No.: KTD110

Features

  • -10°F to 100°F Temperature Range
  • For Heat or Cool Applications
  • Bi-Metal Temperature Sensor
  • SPST or SPDT Switch Action
  • 6" Lead Wires For Hard-Wired Installation
  • Rugged Steel Case

Specifications

  • Range: -10°F - 100°F Heat & Cool
  • Rating: 22 Amps @ 125-250 VAC Res.
                 3/4 HP @ 125 VAC
                 1-1/2 HP @ 250/277 VAC
                 82.8 LRA @ 125 VAC
                 60 LRA @ 240 VAC
                 13.8 LRA @125 VAC
                 19 FLA @ 250 VAC

  • Switch: SPST or SPDT Action
  • Temperature Sensor: Bi-Metal
  • Connections: 6-Inch Lead Wires
  • Scale: Celsius or Fahrenheit
  • Differential: ±6-8°F
  • Control: Analog
  • Dimensions: 5.5" H x 2.13" W x 2.63" Deep From Back of Case to Front of Knob
  • Application: Commercial and Industrial Applications
  • Approvals: U.L. Approved & C.S.A. Certified; RoHS2 Compliant

Equivalent to Part Numbers:

TPI / Columbus: KTD110







Disclaimers: TPI and Columbus Electric are registered trademarks of TPI Corporation. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
