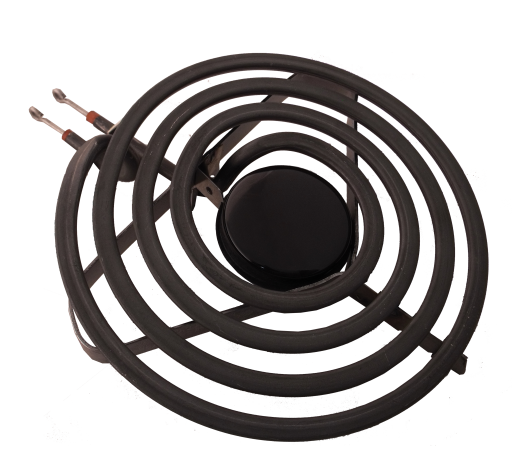

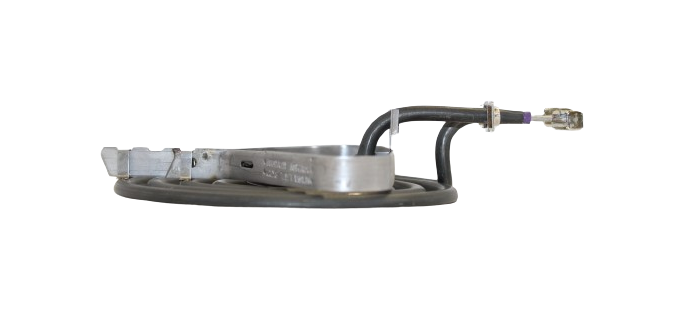

Model MP-15MA: Whirlpool WPY04100165 Equivalent Replacement 6" Surface Element For Ranges/Ovens, 1,500W / 1,125W @ 240V / 208V

List price $ 0.00

Therm Coil Drawing No.: 370D-1003-006      Therm Coil Model No.: MP-15MA

Description

  • Small 6" Surface Element Replacement With (4) Turns: Directly replaces hundreds of models.
  • Rating: 1500 W @ 240 V or 1125 W @ 208 V
  • Bracket Style:  Heavy-Duty D Style (Delta)
  • Terminals: Push-In  Nickel Over Steel "Looped Ends"
  • Used In Numerous Whirlpool Ranges and Stoves And Others With Push-In Terminal Style Burners: Whirlpool Brands may include Whirlpool, Maytag, Kenmore, Crosley, Vesta, KitchenAid, Admiral, Amana, Caloric, Jenn-Air, Roper, Inglis, Estate, Magic Chef.
  • NOTE: Does Not Fit GE/Hotpoint Ranges.

 HELPFUL HINT: Use CTRL+F to use the search function for your part number.

Replacement For Part Numbers:

  • Whirlpool Brands (Including Jenn Air, Maytag, and Maycor):  WPY04100165, Y04100165, 326787, 112696, 14210966, 19950010, 263090, 263140, 263375, 263564, 299466, 299685, 301412, 303251, 319266, 325507, 325510, 403512, 403870, 4164320, 42384, 4328008, 4352630, 4352854, 4353015, 4354408, 4354458, 4354460, 4355039, 4355055, 4355461, 550071, 715927, 74005446, 7406P048-60, 80326787, 834646, 834812, 865601, 879065, F80-205
  • Supco / Chromalox / Emerson-Backer: MP15MA, 404777, 44195, 405032
  • Gemline: SU303, SU304
  • Zoppas / Teledyne-Stillman: TS4D6212, TS4D6212LM, TS4D6215, TS4D6215LM, TS4D6215PB, TS4D6215SR, TS4D6215WI
  • Other: ERS46D12, AP6024130, 1242501, PD00003241, TJ90MP15MA , TJMP15MA, AP4502985, 2219714, AP6326903, 832337, AP4283500, MEP15MA, PS2195245, PT12849234

 HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model number.

Used In Appliance Model Numbers:

C202, C201, A100, C206, JED8130ADB, AC110B, C203, JEA7000ADS, CVE4180W, JED8130ADW, C206B, 88890, CVE4180B, 89890, CDE852, RC8700EDB0, C200, CVE4180S, JEA7000ADB, KECS1040WH, 2300, R201, RC8720EDB0, GO106B, N9457L3, JEA7000ADW, GO106, 22305, 2380EGS, LCRE300, RS310PXBH0, 2480, C201-C, CRE300, DCSE600, LCSE601, C206W, LCRE700, R200, 2300ERS, 2323W0A, 629.42015, A100-C, A100B, RC8700EDW0, RM988PXPW0, RS385PCBN0, 629.42865, .42869, C202-C, C203-C, CAE1000ACB, CDE850, CRE350, CRE600, CVE4180B-C, F9257W1, F9757W1, KECG260SWH1, LCRE650, RC8720EDW0, RS310PXEB0, RS385PCBW0, RS385PXBH0, 2570B00, A100L-C, A100W, C206B-C, CRE350B, CSE600, CVE407W, CVE4180W-C, F5108L0, KECS100SWH1, N9457X3, N9457X4, RE953PXKT0, RE960PXPW0, RM955PXLW0, RM973PXLT0, RM978BXPW0, RS3025XBW1, RS385PXBQ0, RS385PXEQ0, 103.4326720, 103.4326740, 103.4327000, 103.4327020, 103.4327040, 103.4327060, 103.4327080, 103.4327200, 103.4327201, 103.4327202, 103.4327203, 103.4327211, 103.4327212, 103.4327213, 103.4327221, 103.4327222, 103.4327223, 103.4327241, 103.4327242, 103.4327243, 103.4327261, 103.4327262, 103.4327263, 103.4327280, 103.4327281, 103.4327282, 103.4327283, 103.4327510, 103.4327520, 103.4327540, 103.4327560, 103.4327580, 103.4327610, 103.4327611, 103.4327810, 103.4327910, 103.4327911, 103.4327912, 103.4347510, 103.4347520, 103.4347540, 103.4347560, 103.4347580, 103.4347610, 103.4347710, 103.4347711, 103.4347810, 103.4347910, 103.4347911, 103.4347912, 103.4348210, 103.4348610, 103.4358210, 103.4358290, 103.4367510, 103.4367520, 103.4367540, 103.4367560, 103.4367580, 103.4367610, 103.4367710, 103.4367711, 103.4367810, 103.4367910, 103.4367911, 103.4367912, 103.4368110, 103.4368190, 103.4368191, 103.4368210, 103.4368290, 103.6208511, 103.6268412, 103.6348412, 103.6408412, 103.6408413, 103.6408710, 103.6417610, 103.6417611, 103.6417612, 103.6427610, 103.6427611, 103.6427612, 103.6428412, 103.6428413, 103.6437710, 103.6447710, 103.9257312, 103.9257322, 103.9257342, 103.9257362, 103.9278412, 103.9307810, 103.9307913, 103.9317100, 103.9317120, 103.9317140, 103.9317160, 103.9327610, 103.9327611, 103.9327612, 103.9327613, 103.9327640, 103.9327660, 103.9327810, 103.9328112, 103.9336700, 103.9336701, 103.9336740, 103.9336741, 103.9336760, 103.9336761, 103.9336800, 103.9336840, 103.9336860, 103.9337310, 103.9337311, 103.9337312, 103.9337314, 103.9337320, 103.9337321, 103.9337322, 103.9337324, 103.9337340, 103.9337341, 103.9337342, 103.9337344, 103.9337360, 103.9337361, 103.9337362, 103.9337364, 103.9337610, 103.9337611, 103.9337710, 103.9337711, 103.9337810, 103.9346602, 103.9346603, 103.9346642, 103.9346643, 103.9346662, 103.9346663, 103.9346700, 103.9347610, 103.9347611, 103.9347612, 103.9347613, 103.9347810, 103.9348112, 103.9357310, 103.9357311, 103.9357313, 103.9357320, 103.9357321, 103.9357323, 103.9357340, 103.9357341, 103.9357343, 103.9357360, 103.9357361, 103.9357363, 103.9357510, 103.9357520, 103.9357540, 103.9357560, 103.9366600, 103.9366602, 103.9366640, 103.9366642, 103.9366650, 103.9366652, 103.9366660, 103.9366662, 103.9366690, 103.9366692, 103.9366700, 103.9366701, 103.9366740, 103.9366741, 103.9367510, 103.9367520, 103.9367540, 103.9367560, 103.9367610, 103.9367611, 103.9367612, 103.9367613, 103.9367614, 103.9367620, 103.9367640, 103.9367660, 103.9368011, 103.9368112, 103.9368410, 103.9376700, 103.9376701, 103.9376740, 103.9376741, 103.9378410, 103.9386700, 103.9386740, 103.9396700, 103.9396730, 103.9396740, 103.9396760, 103.9396790, 103.9406700, 103.9406740, 103.9406760, 103.9426700, 103.9426701, 103.9426730, 103.9426740, 103.9426741, 103.9426760, 103.9426761, 103.9426790, 103.9446740, 103.9466600, 103.9466602, 103.9466640, 103.9466642, 103.9466650, 103.9466652, 103.9466660, 103.9466662, 103.9466663, 103.9466690, 103.9466692, 103.9547617,   103.9567810, 103.9567812, 103.9568111, 103.9706700, 103.9706705, 103.9706740, 103.9706760, 103.9707100, 103.9707120, 103.9707140, 103.9707160, 103.9727410, 103.9727420, 103.9727440, 103.9727460, 103.9746700, 103.9746740, 103.9747310, 103.9747311, 103.9747320, 103.9747321, 103.9747340, 103.9747341, 103.9747360, 103.9747361, 103.9747410, 103.9747411, 103.9747413, 103.9747420, 103.9747421, 103.9747423, 103.9747440, 103.9747441, 103.9747443, 103.9747460, 103.9747461, 103.9747463, 103.9767310, 103.9767311, 103.9767320, 103.9767321, 103.9767340, 103.9767341, 103.9767360, 103.9767361, 103.9767410, 103.9767413, 103.9767420, 103.9767423, 103.9767440, 103.9767443, 103.9767460, 103.9767463, 103.9767610, 103.9767620, 103.9767640, 103.9767660, 103.9777710, 103.9806700, 103.9806701, 103.9806740, 103.9806741, 103.9846700, 103.9846730, 103.9846740, 103.9846760, 103.9846790, 103.9857310, 103.9857311, 103.9857320, 103.9857321, 103.9857340, 103.9857341, 103.9857360, 103.9857361, 103.9857810, 103.9858010, 103.9858011, 103.9867311, 103.9867312, 103.9867313, 103.9867314, 103.9867321, 103.9867322, 103.9867323, 103.9867324, 103.9867341, 103.9867342, 103.9867343, 103.9867344, 103.9867361, 103.9867362, 103.9867363, 103.9867364, 103.9867510, 103.9867520, 103.9867540, 103.9867560, 103.9867610, 103.9867611, 103.9867620, 103.9867621, 103.9867640, 103.9867641, 103.9867660, 103.9867661, 103.9867810, 103.9877310  , 103.9877320, 103.9877340, 103.9877360, 103.9877710, 103.9877810, 103.9877811, 103.9877812, 103.9877910, 103.9877912, 103.9877913, 103.9877914, 1213Z2A, 1213Z3A, 1233W0A, 1233Z1A, 1233Z2A, 1303W0A, 1313W0A, 1313W1A, 1313W2A, 1333W0A, 1333W1A, 1433W0A, 1433W1A, 1433W2A, 1444W0A, 1444W1A, 1453W0A, 1463W0A, 1463W1A, 1463W2A, 1463W3A, 1743W0A, 1833W0A, 1872W0A, 1872W1A, 1873W0A, 1873W1A, 2216W00, 2216W10, 2216W20, 22305 (1988), 22313 (1988), 2233W0A, 2233Z1A, 2236W00, 2236W10, 2236W20, 2336W0A, 2406W0A, 2406W1A, 2406W2A, 2406W3A, 2413W0A, 2426W0A, 2426W1A, 2426W2A, 2453W0A, 2453W9A, 2453WAA, 2454X0A, 2454X1A, 2454X2A, 2454X3A, 2496X0, 2496X1, 2496X2, 2496^0A, 2496^1A, 2496^2A, 2513, 2514, 2514A, 2514B, 2515, 2570B10, 2733W0A, 278.4528811, 278.4538811, 278.4548811, 278.4558814, 278.4558815, 2843W0A, 2872W0A, 2893W0A, 911.4308610, 911.4337910, 911.4337991, 911.4348211, 911.4348214, 911.4348291, 911.4348294, 911.4348610, 911.4348690, 911.4358291, 911.4368211, 911.4368214, 911.4368291,       911.4368292, 911.4368413, 911.4368490, 911.4368493, 911.4528610, 911.4528611, 911.4528810, 911.4528812, 911.4528813, 911.4538611, 911.4538612, 911.4538690, 911.4538692, 911.4538810, 911.4538812, 911.4538813, 911.4538892, 911.4538893, 911.4548611, 911.4548612, 911.4548690, 911.4548691, 911.4548692, 911.4548810, 911.4548812, 911.4548813, 911.4548814, 911.4558610, 911.4558611, 911.4558690, 911.4558810, 911.4558811, 911.4558812, 911.4558813, 911.4558816, 911.4558817, 911.4558818, 911.4558819, 911.455881A, 911.455881B, 911.4558890, 911.4558899, 911.4618810, 911.4618811, 911.4618890, 911.4628611, 911.4628690, 911.4628691, 911.4628710, 911.4628711, 911.4628791, 911.4628810, 911.4628811, 911.4628812, 911.4638611, 911.4638690, 911.4638710, 911.4638711, 911.4638790, 911.4638791, 911.4638810, 911.4638811, 911.4648891, 911.4658610, 911.4658690, 911.4658710, 911.4658711, 911.4658790, 911.4658791, 911.4658810, 911.4658811, 911.4658812, 911.4658813, 911.4658814, 911.6198010, 911.6198011, 911.6198110, 911.6198111, 911.6198112, 911.6198113, 911.6198114, 911.6208010, 911.6208011, 911.6208111, 911.6208112, 911.6208113, 911.6208114, 911.6208410, 911.6208411, 911.6208510, 911.6208511, 911.6208512, 911.6208710, 911.6208810, 911.6208811, 911.6217414, 911.6217415, 911.6217416, 911.6217417, 911.6217424, 911.6217425, 911.6217426, 911.6217427, 911.6217444, 911.6217445, 911.6217446, 911.6217447, 911.6217464, 911.6217465, 911.6217466, 911.6217467, 911.6217510, 911.6217520, 911.6217540, 911.6217560, 911.6217610, 911.6217611, 911.6217640, 911.6217660, 911.6218010, 911.6218011, 911.6218111, 911.6218210, 911.6218211, 911.6218310, 911.6227414, 911.6227415, 911.6227416, 911.6227417, 911.6227424, 911.6227425, 911.6227426, 911.6227427, 911.6227444, 911.6227445, 911.6227446, 911.6227447, 911.6227464, 911.6227465, 911.6227466, 911.6227467, 911.6227510, 911.6227520, 911.6227540, 911.6227560, 911.6227610, 911.6227611, 911.6227640, 911.6227660, 911.6228010, 911.6228011, 911.6228111, 911.6228112, 911.6228210, 911.6228211, 911.6228310, 911.6228410, 911.6228411, 911.6228610, 911.6228710, 911.6238310, 911.6238511, 911.6248310, 911.6248410, 911.6248411, 911.6248810, 911.6248811, 911.6257415, 911.6257416, 911.6257417, 911.6257425, 911.6257426, 911.6257427, 911.6257445, 911.6257446, 911.6257447, 911.6257465, 911.6257466, 911.6257467, 911.6257510, 911.6257520, 911.6257540, 911.6257560, 911.6257610, 911.6257611, 911.6258010, 911.6258012, 911.6258110, 911.6258111, 911.6258210, 911.6258211, 911.6258310, 911.6258610, 911.6267415, 911.6267416, 911.6267417, 911.6267425, 911.6267426, 911.6267427, 911.6267445, 911.6267446, 911.6267447, 911.6267465, 911.6267466, 911.6267467, 911.6267510, 911.6267520, 911.6267540, 911.6267560, 911.6267610, 911.6267611, 911.6267620, 911.6267640, 911.6267660, 911.6268010, 911.6268012, 911.6268110, 911.6268111, 911.6268112, 911.6268210, 911.6268211, 911.6268310, 911.6268410, 911.6268411, 911.6268412, 911.6268610, 911.6277414, 911.6277415, 911.6277416, 911.6277417, 911.6277424, 911.6277425, 911.6277426, 911.6277427, 911.6277444, 911.6277445, 911.6277446, 911.6277447, 911.6277464, 911.6277465, 911.6277466, 911.6277467, 911.6287414, 911.6287415, 911.6287416, 911.6287417, 911.6287424, 911.6287425, 911.6287426, 911.6287427, 911.6287444, 911.6287445, 911.6287446, 911.6287447, 911.6287464, 911.6287465, 911.6287466, 911.6287467, 911.6288410, 911.6288411, 911.6288610, 911.6288710, 911.6298710, 911.6317414, 911.6317415, 911.6317416, 911.6317417, 911.6317424, 911.6317425, 911.6317426, 911.6317427, 911.6317444, 911.6317445, 911.6317446, 911.6317447, 911.6317464, 911.6317465, 911.6317466, 911.6317467, 911.6317510, 911.6317520, 911.6317540, 911.6317560, 911.6327414, 911.6327415, 911.6327416, 911.6327417, 911.6327424, 911.6327425, 911.6327426, 911.6327427, 911.6327444, 911.6327445, 911.6327446, 911.6327447, 911.6327464, 911.6327465, 911.6327466, 911.6327467, 911.6327510, 911.6327520, 911.6327540, 911.6327560, 911.6327610, 911.6327640, 911.6327660, 911.6348410, 911.6348411, 911.6348412, 911.6348413, 911.6348610, 911.6348710, 911.6348711, 911.6348910, 911.6357415, 911.6357416, 911.6357417, 911.6357425, 911.6357426, 911.6357427, 911.6357445, 911.6357446, 911.6357447, 911.6357465, 911.6357466, 911.6357467, 911.6357510, 911.6357520, 911.6357540, 911.6357560, 911.6357610, 911.6357611, 911.6367415, 911.6367416, 911.6367417, 911.6367425, 911.6367426, 911.6367427, 911.6367445, 911.6367446, 911.6367447, 911.6367465, 911.6367466, 911.6367467, 911.6367510, 911.6367520, 911.6367540, 911.6367560, 911.6367610, 911.6367611, 911.6377414, 911.6377415, 911.6377416, 911.6377417, 911.6377424, 911.6377425, 911.6377426, 911.6377427, 911.6377444, 911.6377445, 911.6377446, 911.6377447, 911.6377464, 911.6377465, 911.6377466, 911.6377467, 911.6377610, 911.6377611, 911.6377640, 911.6377660, 911.6387414, 911.6387415, 911.6387416, 911.6387417, 911.6387424, 911.6387425, 911.6387426, 911.6387427, 911.6387444, 911.6387445, 911.6387446, 911.6387447, 911.6387464, 911.6387465, 911.6387466, 911.6387467, 911.6387610, 911.6387611, 911.6387640, 911.6387660, 911.6408410, 911.6408411, 911.6408412, 911.6408414, 911.6408610, 911.6408710, 911.6428410, 911.6428411, 911.6428412, 911.6428413, 911.6428414, 911.6428610, 911.9107810, 911.9107910, 911.9107911, 911.9107912, 911.9108010, 911.9108110, 911.9108111, 911.9108610, 911.9108710, 911.9108810, 911.9117510, 911.9118710, 911.9118810, 911.9119180, 911.9127510, 911.9127610, 911.9127611, 911.9127612, 911.9127810, 911.9128010, 911.9128011, 911.9137510, 911.9137540, 911.9137560, 911.9137810, 911.9137910, 911.9138010, 911.9138011, 911.9138110, 911.9138111, 911.9147810, 911.9147910, 911.9147911, 911.9147912, 911.9147913, 911.9147914, 911.9147915, 911.9147916, 911.9148411, 911.9148610, 911.9148710, 911.9158110, 911.9158111, 911.9158211, 911.9158310, 911.9158410, 911.9158411, 911.9168710, 911.9177710, 911.9177910, 911.9177911, 911.9177912, 911.9178010, 911.9179180, 911.9188710, 911.9188810, 911.9188811, 911.9189180, 911.9198710, 911.9207315, 911.9207316, 911.9207317, 911.9207510, 911.9207540, 911.9207560, 911.9207610, 911.9207640, 911.9207660, 911.9217310, 911.9217311, 911.9217312, 911.9217313, 911.9217314, 911.9217810, 911.9217910, 911.9218010, 911.9218011, 911.9227410, 911.9227440, 911.9227460, 911.9227510, 911.9227540, 911.9227560, 911.9227810, 911.9227910, 911.9228110, 911.9228111, 911.9228112, 911.9237314, 911.9237324, 911.9237344, 911.9237364, 911.9237410, 911.9237440, 911.9237460, 911.9237510, 911.9237540, 911.9237560, 911.9237610, 911.9237640, 911.9237660, 911.9237910, 911.9247410, 911.9247411, 911.9247420, 911.9247421, 911.9247440, 911.9247441, 911.9247460, 911.9247461, 911.9247810, 911.9247910, 911.9248010, 911.9248011, 911.9248310, 911.9248410, 911.9248411, 911.9248610, 911.9249180, 911.9257410, 911.9257411, 911.9257420, 911.9257421, 911.9257440, 911.9257441, 911.9257460, 911.9257461, 911.9257510, 911.9257520, 911.9257540, 911.9257560, 911.9257610, 911.9257611, 911.9257620, 911.9257640, 911.9257660, 911.9258211, 911.9267410, 911.9267411, 911.9267412, 911.9267420, 911.9267421, 911.9267422, 911.9267440, 911.9267441, 911.9267442, 911.9267460, 911.9267461, 911.9267462, 911.9267810, 911.9267910, 911.9268211, 911.9268310, 911.9268410, 911.9268411, 911.9268610, 911.9268710, 911.9277410, 911.9277411, 911.9277412, 911.9277420, 911.9277421, 911.9277422, 911.9277440, 911.9277441, 911.9277442, 911.9277460, 911.9277461, 911.9277462, 911.9278310, 911.9278410, 911.9278411, 911.9278412, 911.9278610, 911.9278710, 911.9307811, 911.9307812, 911.9307910, 911.9307912, 911.9318610, 911.9318611, 911.9318710, 911.9318810, 911.9327811, 911.9327812, 911.9328010, 911.9328710, 911.9337811, 911.9337812, 911.9337910, 911.9337912, 911.9347811, 911.9347910, 911.9347911, 911.9348010, 911.9348110, 911.9359180, 911.9368010, 911.9368110, 911.9368410, 911.9368411, 911.9368412, 911.9368413, 911.9368610, 911.9368710, 911.9369180, 911.9369181, 911.9378010, 911.9378410, 911.9378411, 911.9378412, 911.9378413, 911.9378610, 911.9378710, 911.9388410, 911.9388411, 911.9388412, 911.9388610, 911.9388710, 911.9388810, 911.9389180, 911.9808510, 911.9808512, 911.9808513, 911.9808710, 911.9858511, 911.9858710, 917.4348212, 917.4348213, 917.4348292, 917.4348293, 917.4368212, 917.4368491, 917.4368492, A100B-C, A100L, A100S-C, A100W-C, AC110S, AC110W, C206-C, C206W-C, C3257W0, CAE1000ACE, CCE1400W, CCE1400W-C, CCE407W, CCE407W-C, CDE820, CDE851, CLE700, CNE200, CRE200, CRE200B, CRE300B, CRE400, CRE400B, CRE500, CRE500B, CRE600B, CRE650, CRE682, CRE682B, CRE700, CRE750, CRE750B, CSE601, CSE7000ADE, CU230, CUE840, CVE407W-C, CVE4180S-C, D-170, D-445, D-456, D5257X0, D5257X2, D5757X0, D9757W5, D9757W6, DCSE601, ED1-76W19, ED9-71A539R, ED9-71W539R, EPD8-69KY919A, EPD8-69KY919W, EPD9-79KA659A , EPD9-79KW659A, F5007W1, F5108G0, F5108W0, F5907W0, F5908W0, F7107W1, F7108L0, F7108W0, F7907W0, F7908L0, F7908W0, F9157W1, F9257W0, F9858L0, F9858W0, F9858X0, GCLE700, GCNE200, GCRE200, GCRE300, GCRE350, GCRE400, GCRE600, GCRE650, GCRE682, GCRE700, GCRE750, GCSE600, GO106B-8, KECG260SAL1, KECG260SBC1, KECG260SOB1, KECS-1040WH, KECS100SWH0, KECS160SWH0, KECX160SWH0 , KECX260SWH1, LCLE700, LCNE200, LCRE200, LCRE350, LCRE400, LCRE600, LCRE682, LCRE750, LCSE600, N3157W1, N3257W1, N9157L0, N9157L1, N9157X0, N9257L1, N9257L2, N9257X0, N9257X1, N9357L0, N9357L2, N9357L3, N9457X2, N9457X5, NER1360AGH, R201-C, RC8536XTB0, RC8536XTH0, RC8536XTN0, RC8536XTW0, RE953PXPT0, RE953PXPT1, RE960PXKW0, RE960PXKW1, RE960PXKW2, RE960PXPW1, RE963PXKT0, RE963PXKT1, RE963PXPT0, RE963PXPT1, RF0100XKW0, RF0100XKW1, RF010ESPW0, RF010EXPW0, RHM973PP0, RHM975PW, RHM975PW1, RHM988PW, RHM988PW1, RM955PXKW0, RM955PXLW1, RM955PXLW2, RM955PXPW0, RM973BXPT0, RM973PXKT0, RM973PXLT1, RM973PXLT2, RM975PXKG0, RM975PXKN0, RM975PXKW0, RM975PXLW0, RM975PXLW1, RM975PXLW2, RM988PXKW0, RM988PXLW0, RM988PXLW2, RM988PXLW9, RS3025XBN0, RS3025XBN1, RS3025XBW0, RS310PXEB1, RS385PXEB0, RS385PXEB1, RS385PXEQ1, S5007W0, S9507W2






Therm Coil MFG. Co. is not affiliated with House of Webster, Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
