Model No. STH-341-7-SS: 300W @ 240V 1-1/2" Wide X 7-1/2" Length Stainless Steel Channel Strip Heaters With Mounting Tabs and (2) #10-32 or #10-24 Screw Terminals Offset (Diagonal) At One End

Save 15% Save 15%
Original price $ 83.00
Original price $ 83.00 - Original price $ 83.00
Original price $ 83.00
Current price $ 70.55
$ 70.55 - $ 70.55
Current price $ 70.55
in stock, ready to be shipped

Therm Coil Drawing Number: 394A-2001-014

Model Number: STH-341-7-SS

General Product Description

Channel Strip heaters are most commonly used in the surface heating of tanks and in industrial ovens as the heat source via flat-surface mounting and have hundreds of commercial and industrial applications.

Channel strip heaters differ from regular strip heaters in that their housing is constructed from a singular piece of rectangular tubing which makes them moisture-resistant.

  • Whenever the voltage to ground exceeds 300V, secondary insulators must be used.
  • All strip heaters may be used at voltages lower than rated for reduced wattage.
  • NOTE: For Units With Mounting Tabs: When supported by mounting tabs, the terminal end should be secured firmly. The opposite end should be loose to allow for thermal expansion.

Series Description

  • 304 Stainless Steel Sheath: Superior corrosion protection for long life and clean appearance.  Suitable for applications where the sheath temperature does not exceed 1200°F MAX.
  • Moisture-Resistant Housing: this channel strip heater's housing is comprised of a stainless steel rectangular tubing and is moisture-resistant.
  • Mounting Tabs
  • (2x) At One End & Offset (Diagonal) Positioning: #10-32 or #10-24 Screw Terminals

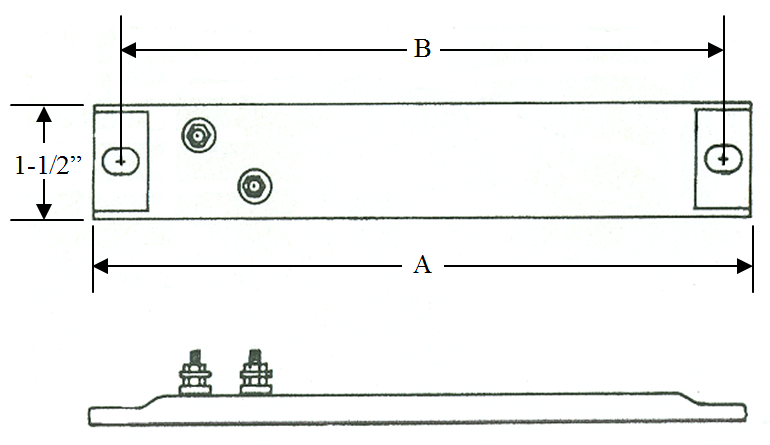

  • 1-1/2" Width x 7-1/2" Length: Total Length Is (A) DIM. On Diagram
  • Mounting Hole Center-to-Center: 1" Less Than Total Length
  • 300 Watts
  • 240 Volt
