Model No. RC-136-120V: Broan / NuTone C-15928 / 15943 / 1-87945 Equivalent Replacement Circular Down Flow Heating Elements, 650W @ 120V

Original price $ 25.00 - Original price $ 25.00
Original price
$ 25.00
$ 25.00 - $ 25.00
Current price $ 25.00
16 in stock, ready to be shipped
Therm Coil Drawing No.: 366H-5300-001
Therm Coil Model No.: RC-136-120V

These are replacement down flow heating elements rated 650W and 120V.  These units have threaded screw-in lug terminals (also called flag terminals).  These elements replace the OEM rated element of 1kW @ 120V with lower watt density and thus longer life expectancy.

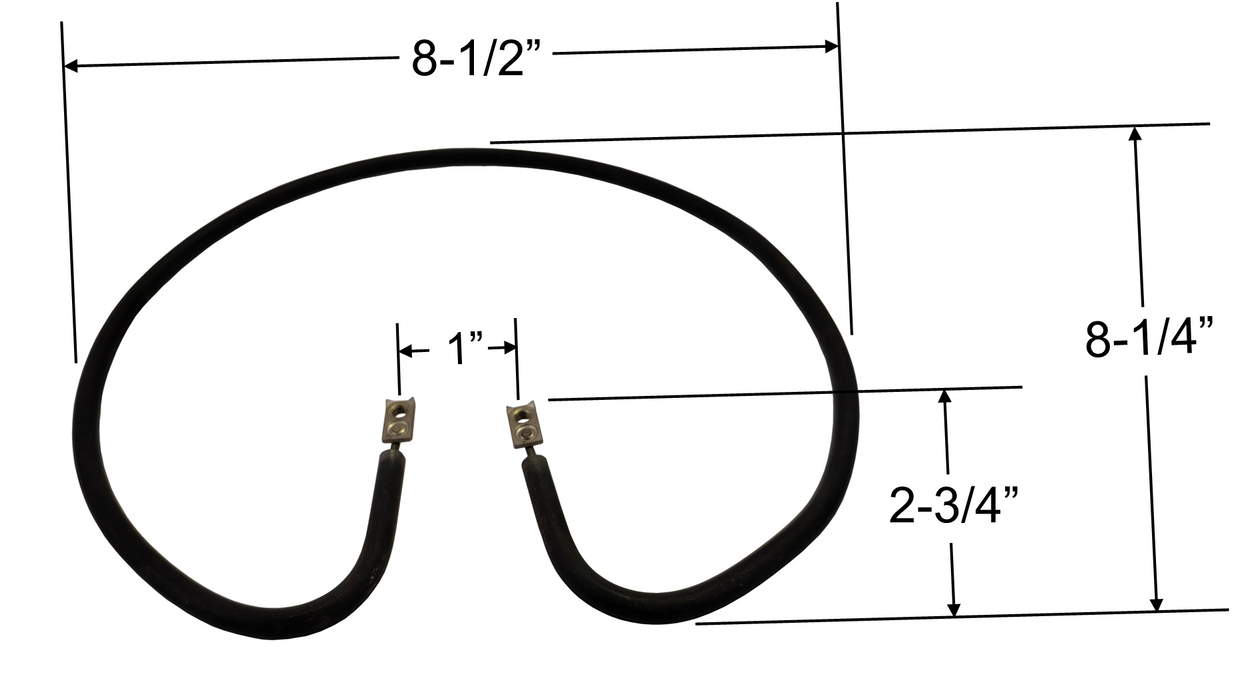

Approximate Dimensions:

  • Width: 8-1/2"
  • Outside of Element to Terminal End: 2-3/4"
  • Terminal Center-to-Center: 1" (Flexible)
  • This element is flat and the terminal ends are not raised.

366H-5300-001 Is a Replacement For Part Numbers:

Broan / NuTone: C-15928, 15943. 1-87945

Chromalox / Emerson: CH136, 453940

Southeastern Electric (SE) / Southeast Specialties, Inc.: RC136

Disclaimers: Broan and NuTone are registered trademarks of Broan-NuTone LLC.  Chromalox and Emerson are registered trademarks of or copyrights of Emerson Electric CO..  Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name appliances.
