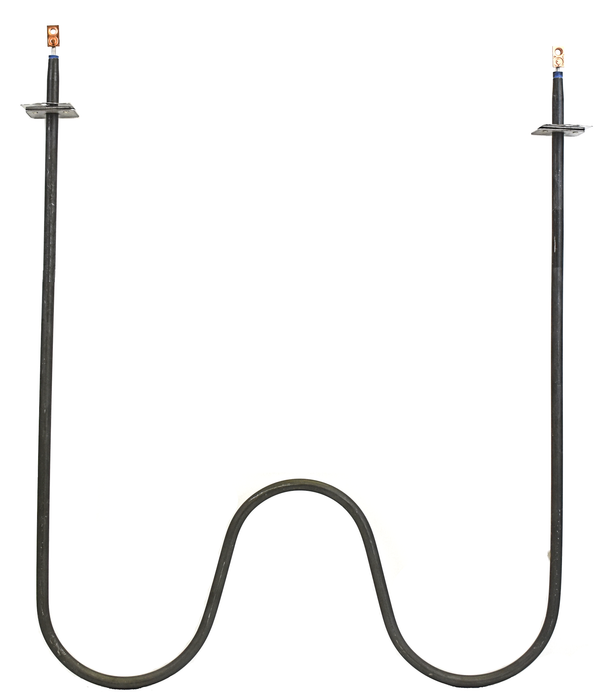

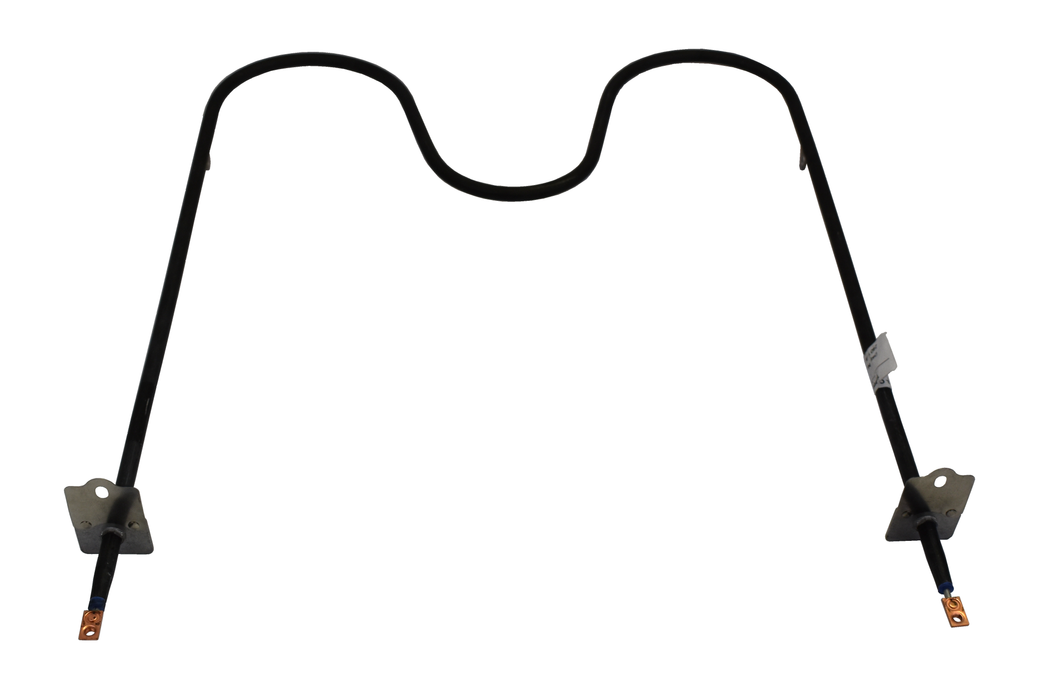

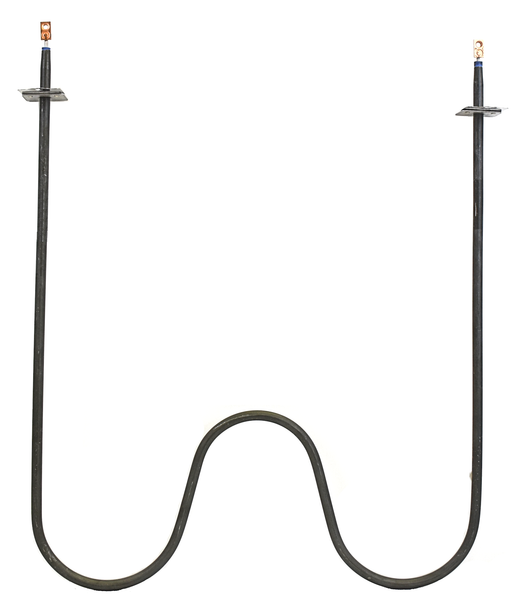

Model TC-1037: Enterprise: 150610, 150624 Equivalent Range/Oven Bake Replacement Element, 2,000W @ 240V

Discounted price $ 90.10 List price $ 106.00

Therm Coil Drawing No.: 366R-4136-003      Therm Coil Model No.: TC-1037

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Gray & Dudley / Royal Chef: 8743, C-8478, 1533

Enterprise: 150610, 150624

Other: CH1037, 115440, 453641, TS1037, TS1037/752, YCH1037, AP3389041, 115440

  • 2000 W @ 240 V Rating

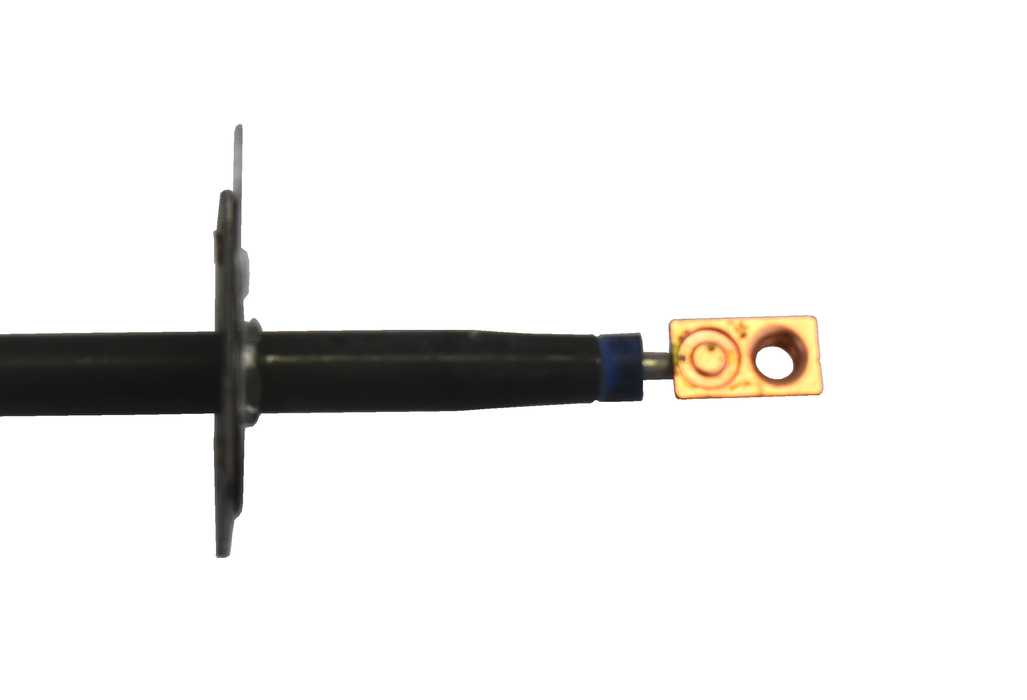

  • Threaded Screw-In Terminals

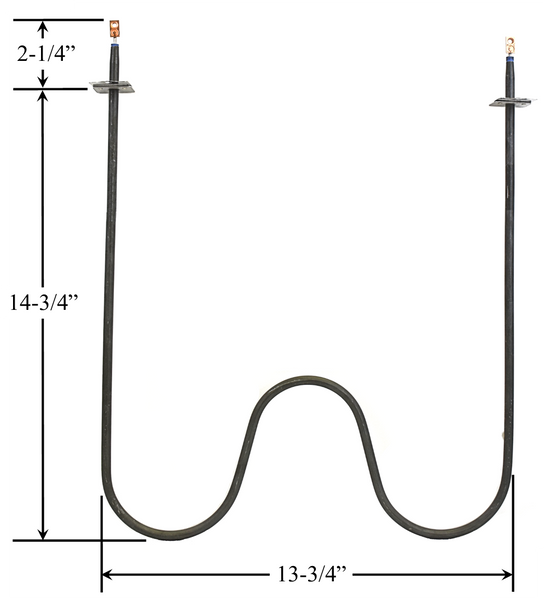

  • Approx. Overall Size: 13-3/4" Width x 14-3/4" Length From Back Of Element To Mounting Brackets x 2-1/4" Insert From Bracket To Terminal Ends.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.

 HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

45EA-2W, 45EA-3CLW, 45EB-3CLW, 45EG-3CLW, 45EN-2W, 45EN-3CLW, 45EY-2W, 45EY-3CLW, CEA6C6CW, CEA6D6W, CEW6C6CW, CEW6D6W, NEA6G6CLW, NEA6H6CLW, NEW6G6CLW, NEW6H6CLW



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
