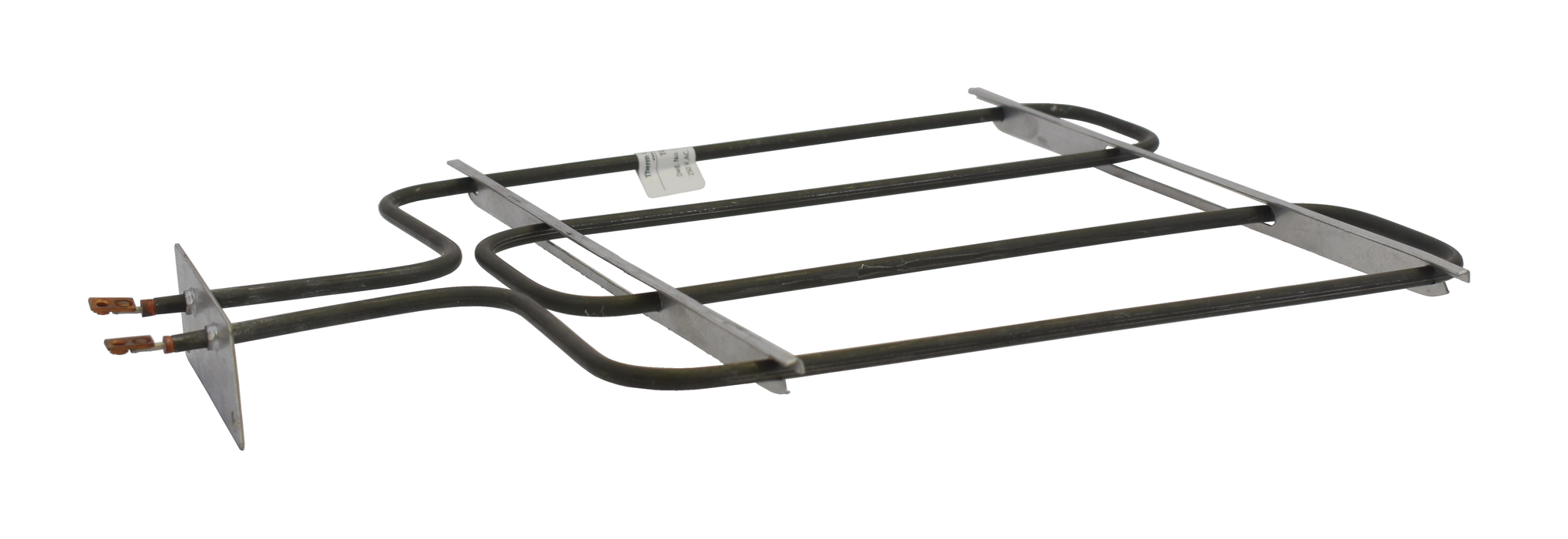

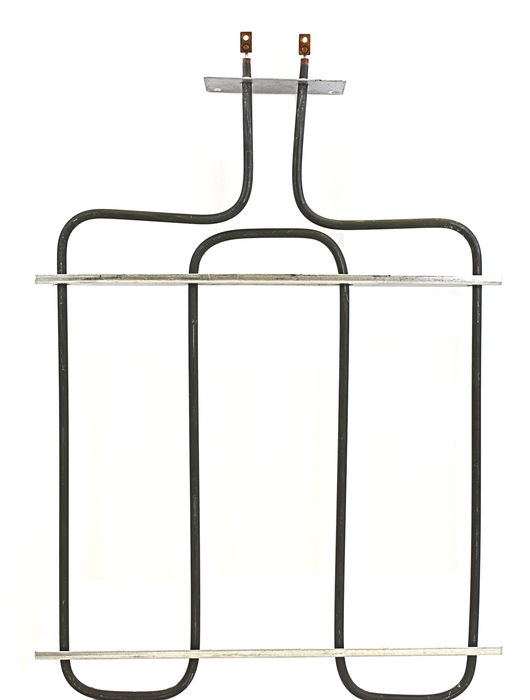

Model TC-1044: Frigidaire/Tappan 03-233-9 Equivalent Range/Oven Broil Replacement Element, 2,200W @ 250V

Discounted price $ 68.26 List price $ 80.30

Therm Coil Drawing No.: 366R-4142-003      Therm Coil Model No.: TC-1044

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire / Tappan: 01-233-9

Other:  CH1044, 029-871892-003, 871892-003, 453712, RP751, TS1044, TS1044/751, TS751, TS751/1044, YCH1044, 115445, AP2592279, AP3768888

  • 2200 W @ 250 V Rating

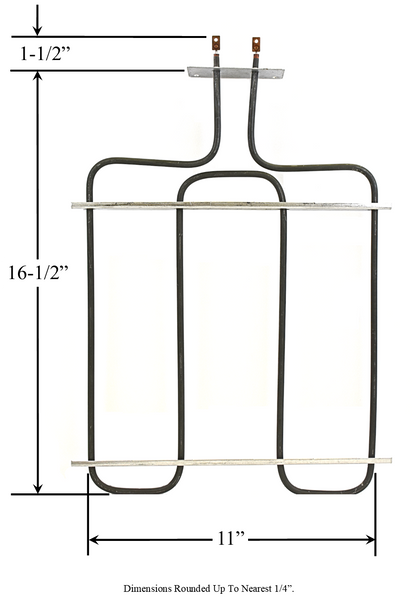

  • Approximate Overall Size: 11" Wide x 16-1/2" Length From Back Of Element To Mounting Bracket x 1-3/8" Insert From Bracket To Terminal Ends x 1-1/2" Center-to-Center Terminal Width.

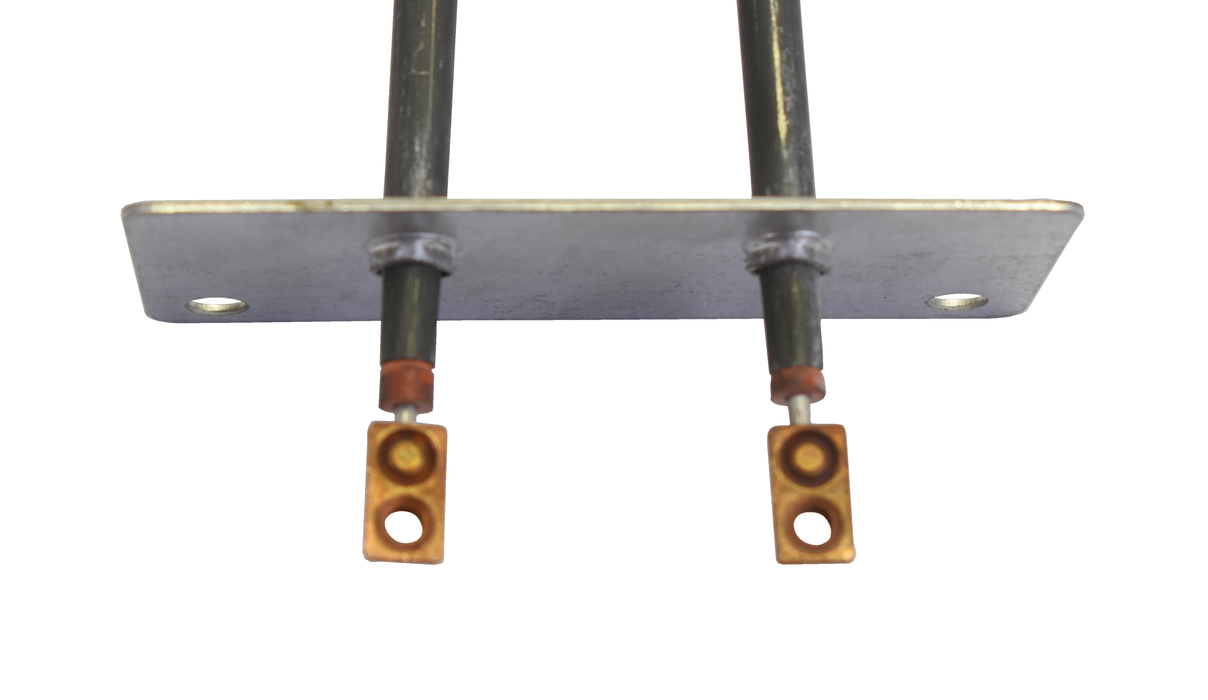

  • Screw-In Terminals
  • Used in various models of Tappan, Whirlpool, Frigidaire, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
