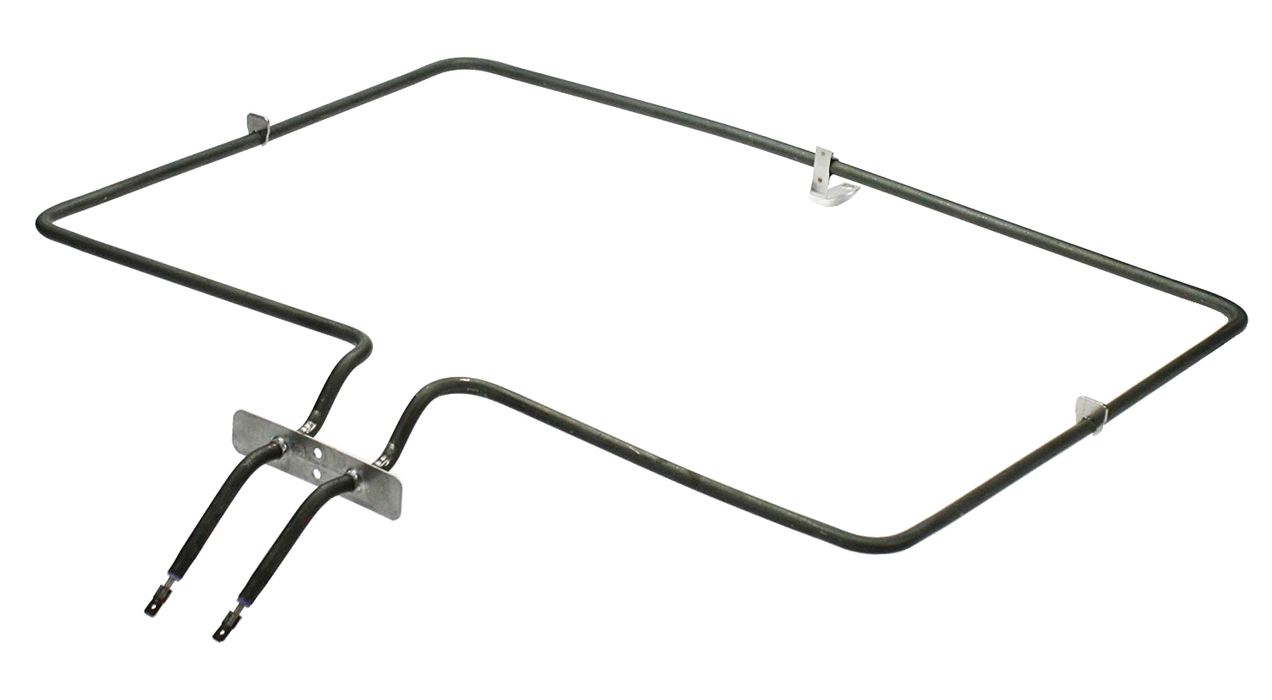

Model TC-10779716: Whirlpool: W10779716 Equivalent Range/Oven Bake Replacement Element, 3,600W @ 240V

Discounted price $ 60.78 List price $ 71.50

Therm Coil Drawing No.: 366R-4231-003      Therm Coil Model No.: TC-10779716


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Whirlpool: W10779716, W10289097, PS11703285, W10774342

Other: CH9716, 460082, 501684, AP5970727, 4161369

  • 3600 W @ 240 V Rating
  • Male Quick-Connect Push-In Terminals

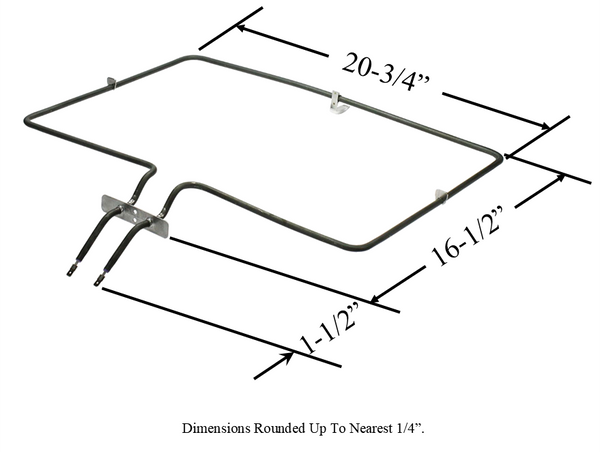

  • Approx. Overall Size: 20-9/16" Width x 16-1/2" Length From Back Of Element To Mounting Brackets x 3-5/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
