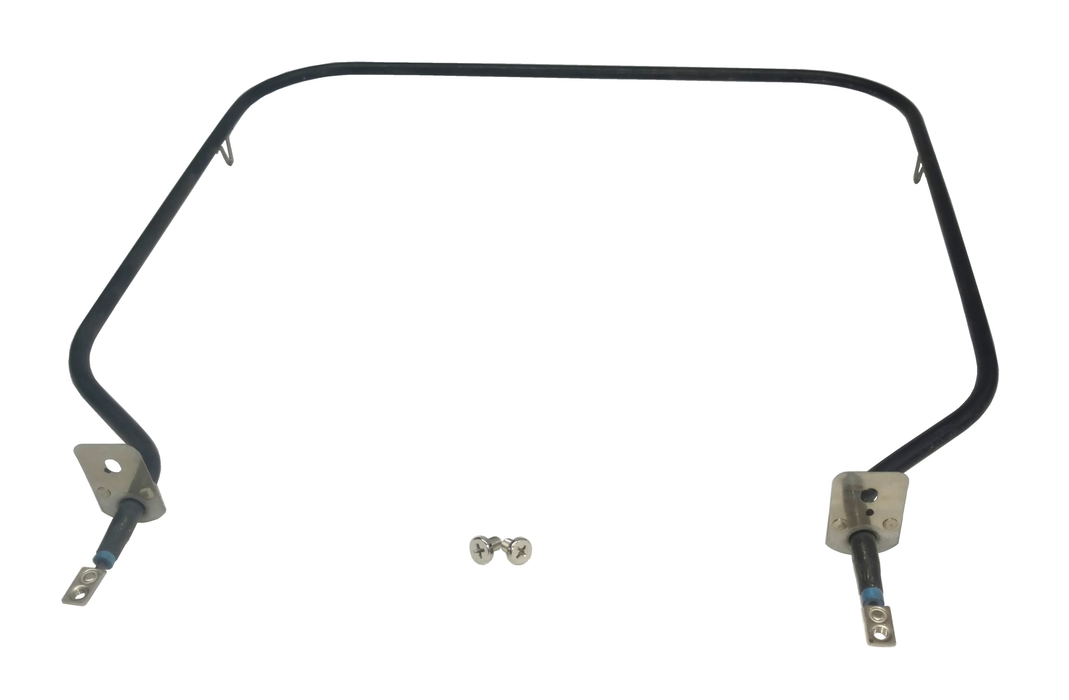

Model TC-10871408: House of Webster 10871408 Equivalent Range/Oven Bake (Bottom For Stand-Alone Stove) Replacement Element, 2,100W @ 240V

Therm Coil Drawing No.: 366R-3012-003      Therm Coil Model No.:TC-10871408

Description

• Replacement For Part Numbers:

House of Webster: 10871408, SP2177

Other: CH202-871408-001, 871408, 202-871408, 871408-001, 871408001

• 2100W @ 240V
• Bake Oven Element (Bottom) Used In Stand-Alone Country Charm Stoves: Model R59 is an example of a stand alone stove which has a range cooktop and an oven.
• Approximate Overall Size:  15-5/16" Wide 14-7/8" From Back Of Element To Mounting Brackets x 10-1/2" Center-to-Center Of Terminals (Varies due to flexibility of the element design) x 1-3/4" Insert From Mounting Bracket To End of Terminal

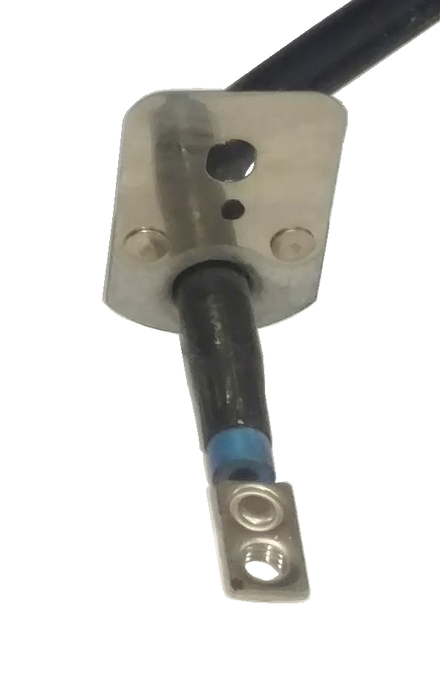

• Threaded Screw-In Terminals
• Used In: House of Webster Country Charm Cast Iron Electric Stove

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
