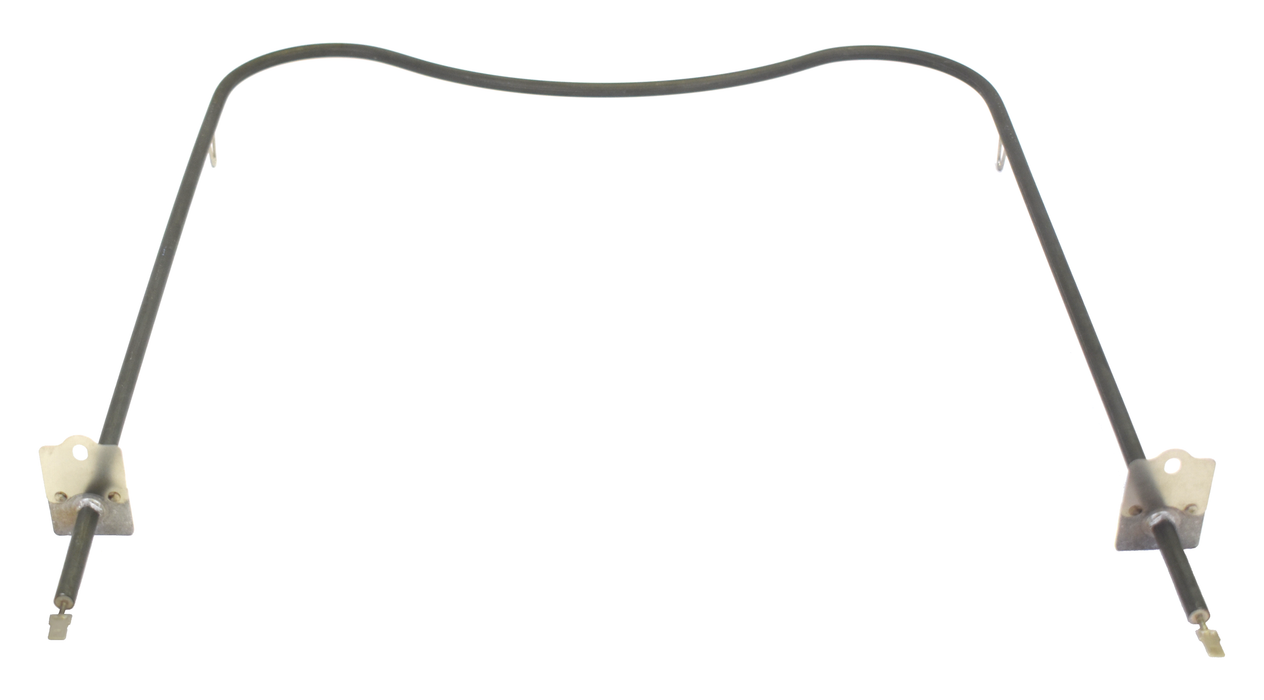

Model TC-2836: Chambers 14114 / CH2836 Equivalent Range/Oven Bake Replacement Element, 2,000 / 1,500 W @ 240 / 208 V

Discounted price $ 79.90 List price $ 94.00

Therm Coil Drawing No.: 366R-4178-003      Therm Coil Model No.: TC-2836


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Chambers: 14114

Other: CH2836, 115504, 456260, TS781, YCH2836, AP3389556

  • 2000 / 1500 W @ 240 / 208 V Rating

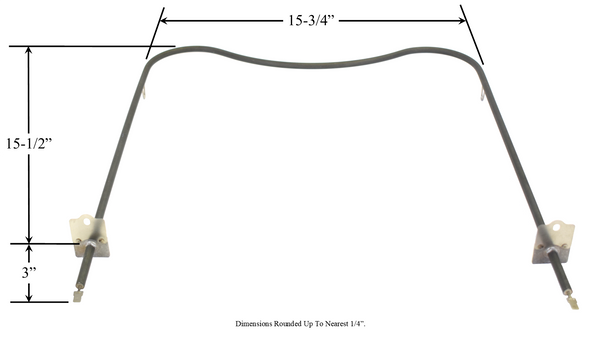

  • Approx. Overall Size: 15-3/4" Width x 15-3/8" Length From Back Of Element To Mounting Brackets x 2-7/8" Insert From Bracket To Terminal Ends.

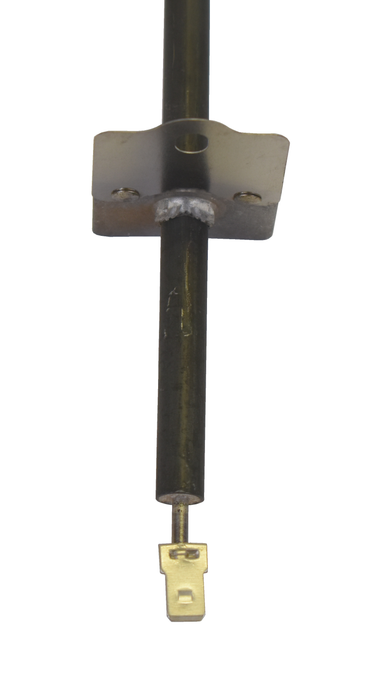

  • Male Quick-Connect Push-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.


Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
