Model TC-2846: Hardwick OE-001-045-99 Equivalent Range/Oven Bake Replacement Element, 1,800W / 1,350W @ 240V / 208V

Discounted price $ 47.26 List price $ 55.60

Therm Coil Drawing No.: 366R-4183-002      Therm Coil Model No.: TC-2846

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Hardwick / Whirlpool:  OE-001-045-99, OE-001-042-99, OE-001-016-99

Other:  CH2846, 456340, AP3956065 , 115511

  • 1800 W / 1350 W @ 240 V / 208 V Rating.

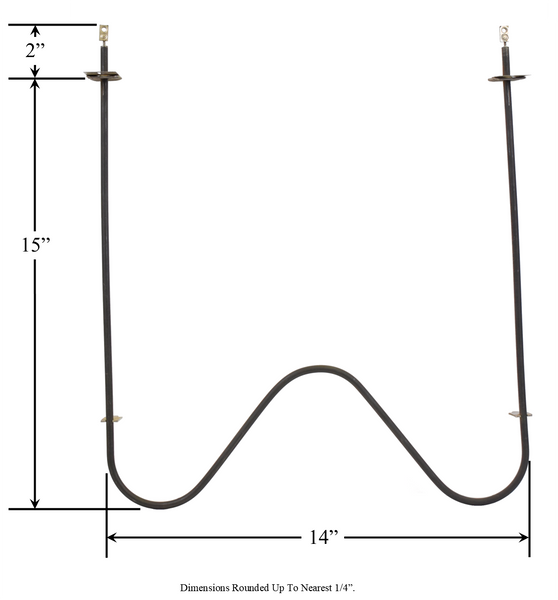

  • Approx. Overall Size: 14" Width x 14-7/8" Length From Back Of Element To Mounting Brackets x 1-7/8" Insert From Bracket To Terminal Ends

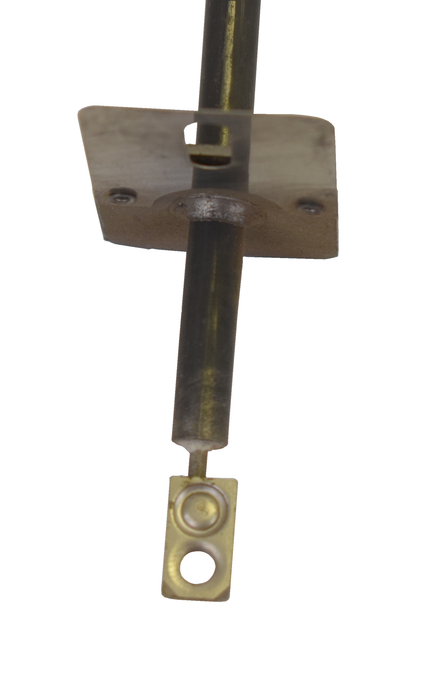

  • Threaded Screw-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this bake element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
