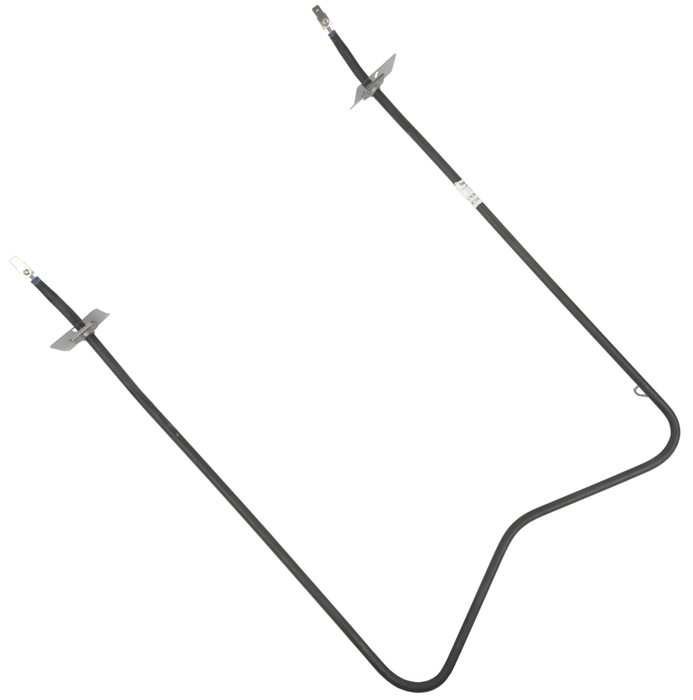

Therm Coil Drawing No.: 366R-3075-003 Therm Coil Model No.: TC-2851
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
- Replacement For Part Numbers:
7406P008-60, CH2851, CH2852, 7406P00860, 106A-153M, 106A-155M, 106A-15AM, 1938-296, 1938-326, 1938-364, 1938276, 1938296, 1938326, 1938349, 1938364, E1345-26, 219715, 115517, 2218999, TJ90CH2851, 454854, RP799, TS2851, TS2851/799, TS799, TS799/2851, YCH2851, YCH2852, 705327, EA2089580, PS2089580, AH2089580, AP4502538, AP4101750
- 2100 W @ 250V Rating

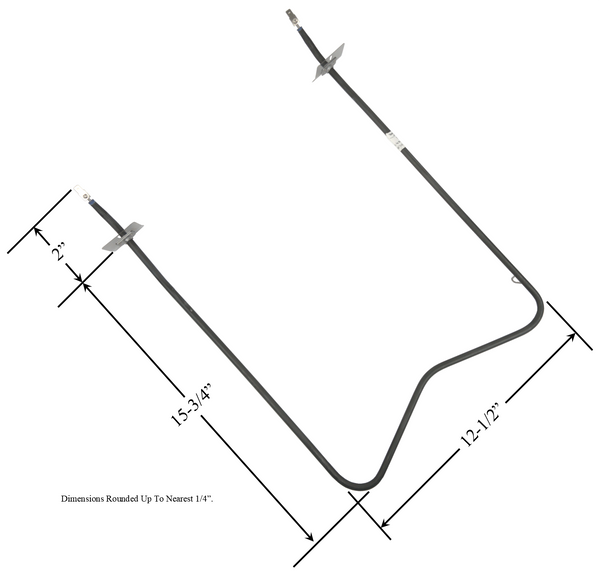

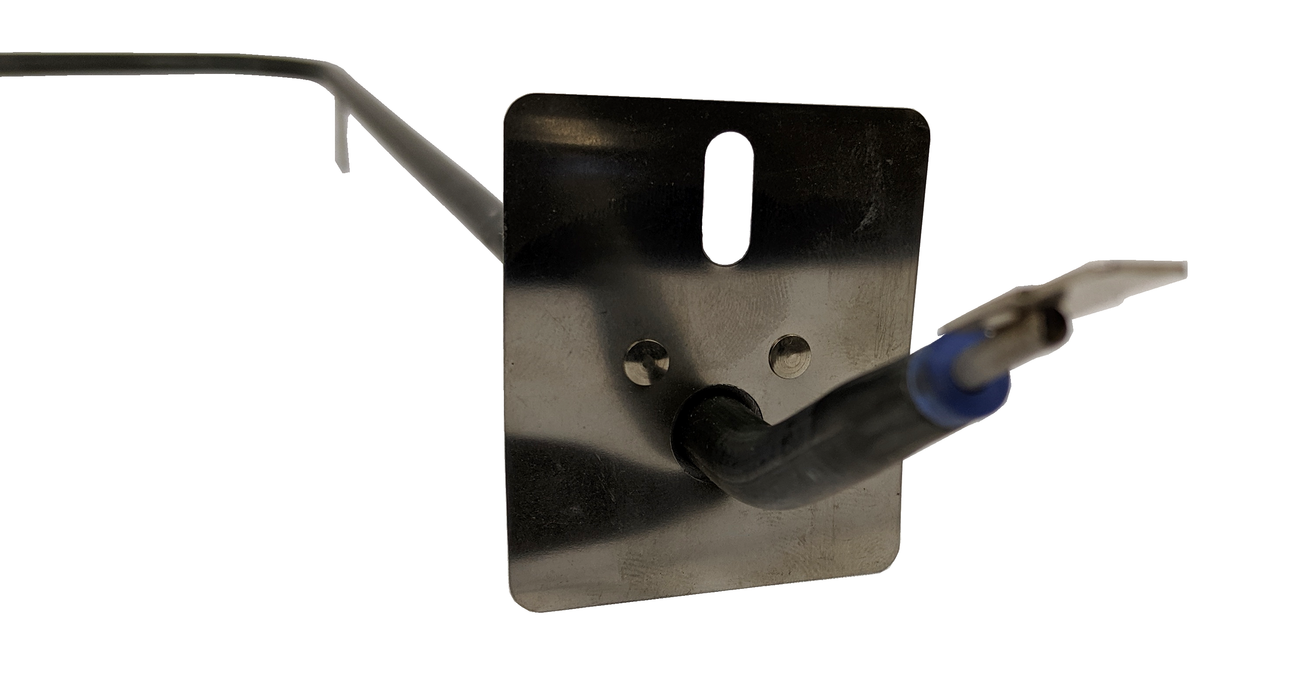

- Approximate Overall Size: 12-1/2" Width x 15-5/8" Back Of Element To Mounting Brackets x 2-7/8" Insert (Mounting Bracket-to-Terminal End) with 12-3/16" Center-to-Center Terminal Width (NOTE - Due to the flexible nature of this element, this dimension may vary up to ±1", but can be easily restored in assembly.)

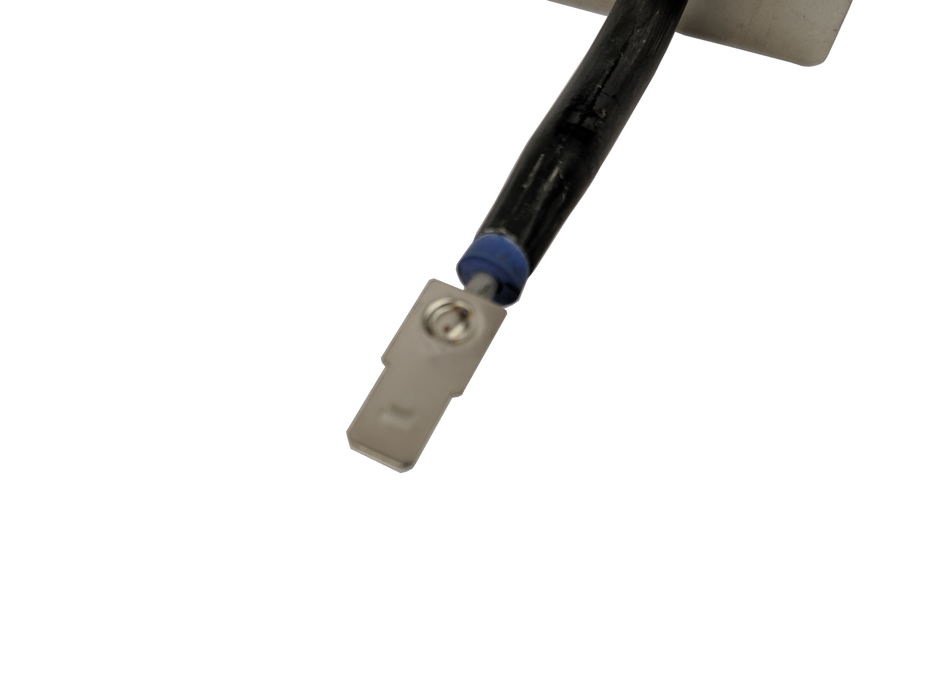

- Male Quick-Connect Push-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
- Used In Norge Oven/Range Model Numbers:
