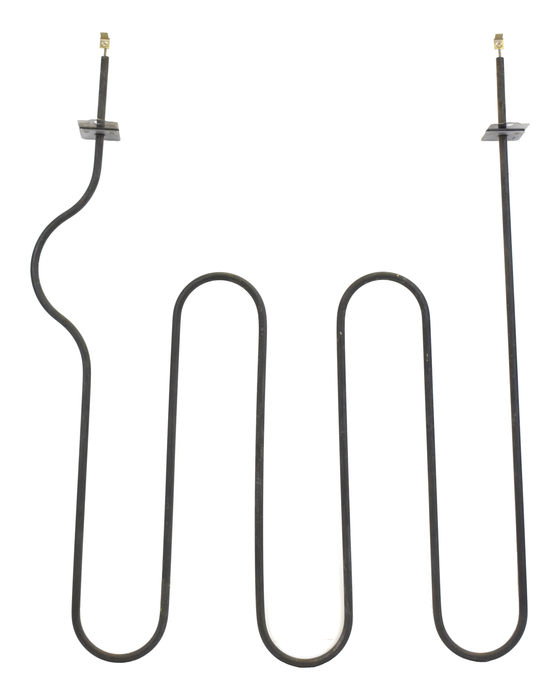

Model TC-2862: Hardwick OE-002-168-99 Equivalent Range/Oven Broil Replacement Element, 3,000W / 2,250W @ 240V / 208V

Discounted price $ 23.80 List price $ 28.00

Therm Coil Drawing No.: 366R-4185-003      Therm Coil Model No.: TC-2862


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Hardwick Whirlpool:  OE-002-168-99, OE-002-159-99

Other:  CH2862, 456358, AP3771494

  • 3000 W / 2250 W @ 240 V / 208 V Rating.

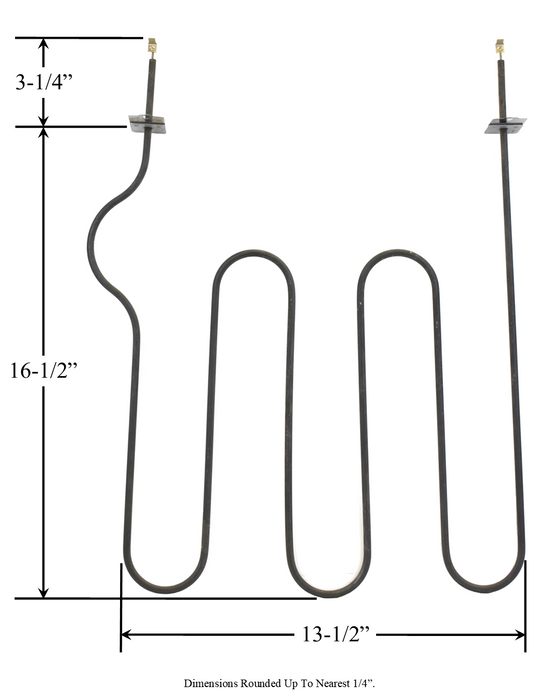

  • Approx. Overall Size: 13-1/2" Width x 16-1/2" Length From Back Of Element To Mounting Brackets x 3-1/8" Insert From Bracket To Terminal Ends

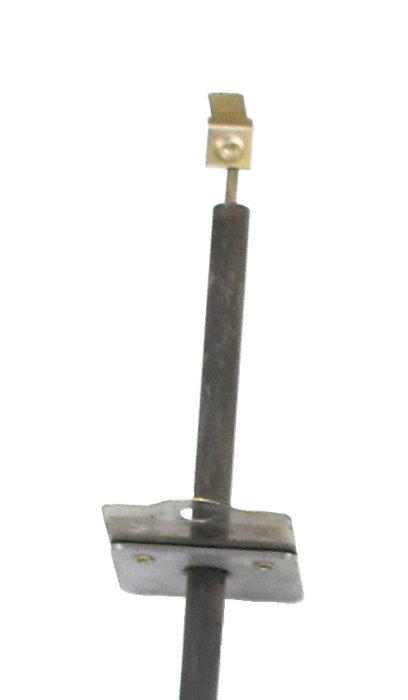

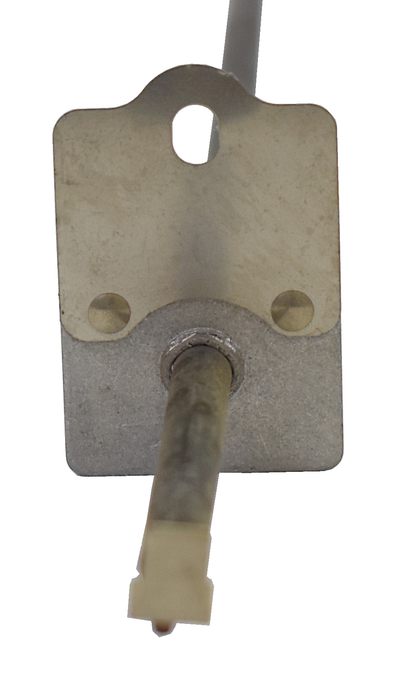

  • Male Right-angle Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this broil element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
