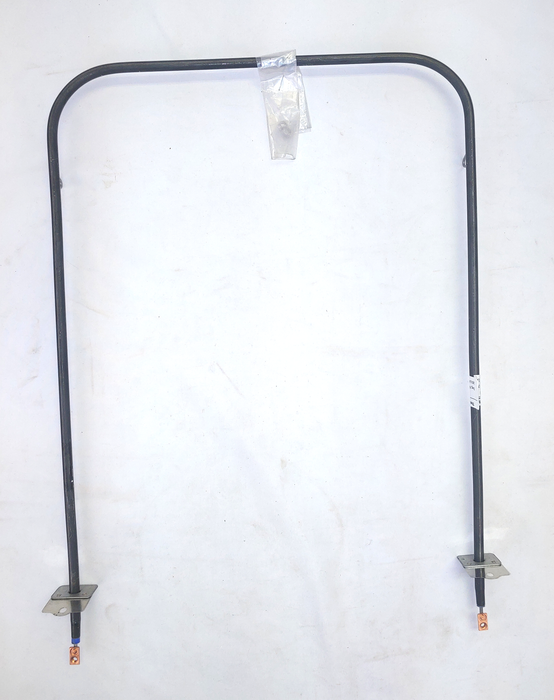

Therm Coil Drawing No.: 366R-1310-003 Therm Coil Model No.: TC-310
HELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
Gray & Dudley / Royal Chef: 1533
Other: CH2857, 115521, 454918, CH752, RP752, TS752, TS752/1037, YCH2857, AP3389375
- 2000W @ 240V Rating
- Approximate Overall Size: 13-3/4" Width* x 16-3/4" Back Of Element To Mounting Brackets x 2-1/4" Insert* (Brackets to Terminal End) (* Due to the flexible nature of this element, these dimensions may vary up to ±1", but can easily be restored in assembly.)

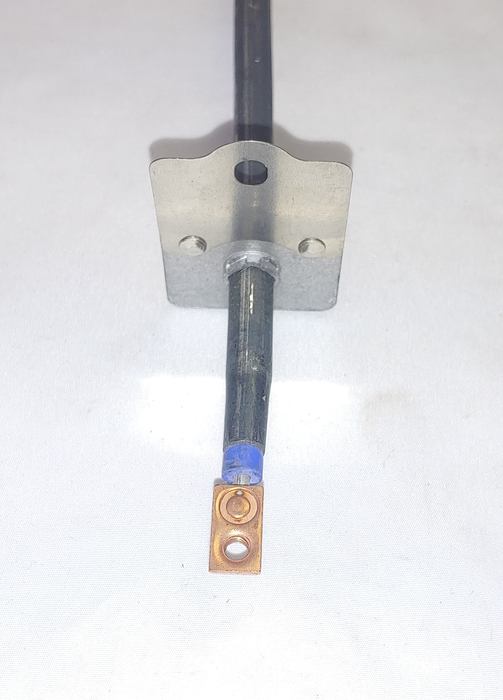

- Lug Screw-In Terminals With Screws.
- Used in Gray & Dudley Model 1533, and other Ranges And/Or Ovens: Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
