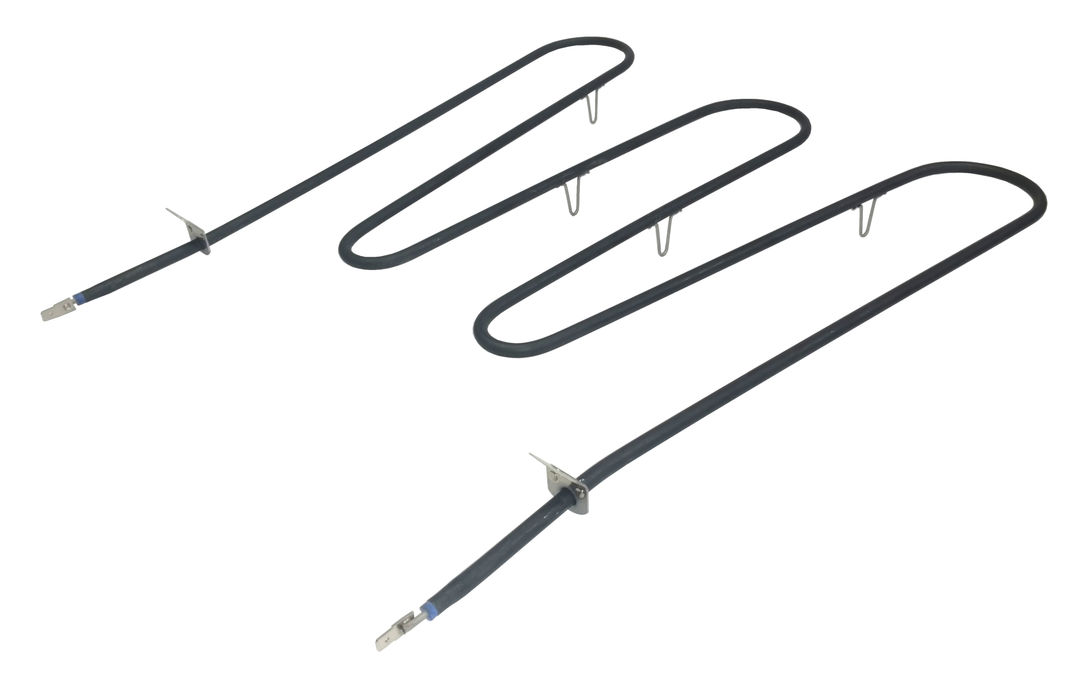

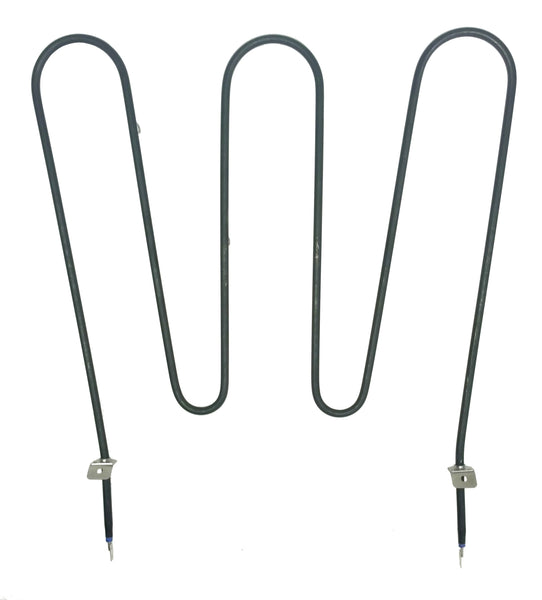

Model TC-316202200: Frigidaire/Kenmore 316202200 Range/Oven Bake Replacement Element, 2,625/3,500W @ 208/240V

Save 15% Save 15%
Original price $ 127.00
Original price $ 127.00 - Original price $ 127.00
Original price $ 127.00
Current price $ 107.95
$ 107.95 - $ 107.95
Current price $ 107.95
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3022-003      Therm Coil Model No.: TC-316202200

Description

  • Replacement For Part Numbers:

Frigidaire / Kenmore (Sears): 316202200

Other: AP2126365, 832940, AH439617, EA439617, PS439617, 877334-001, 877334001

    • 2625W / 3500W @ 208V / 240V Rating

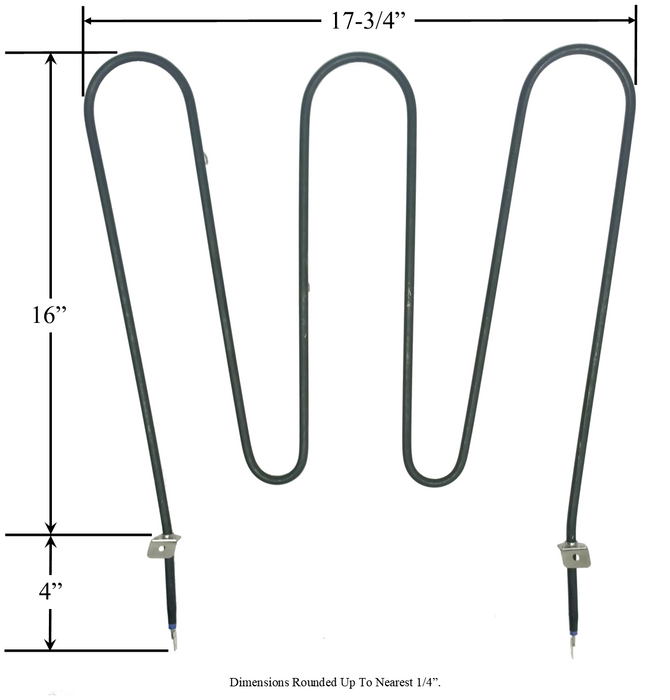

    • Overall Size: 17-5/8" Width* x 15-13/16" Back Of Element To Mounting Brackets x 13" Center-to-Center Terminal Width*  (* Due to the flexible nature of this element, these dimensions may vary up to ±1", but can easily be restored in assembly.)

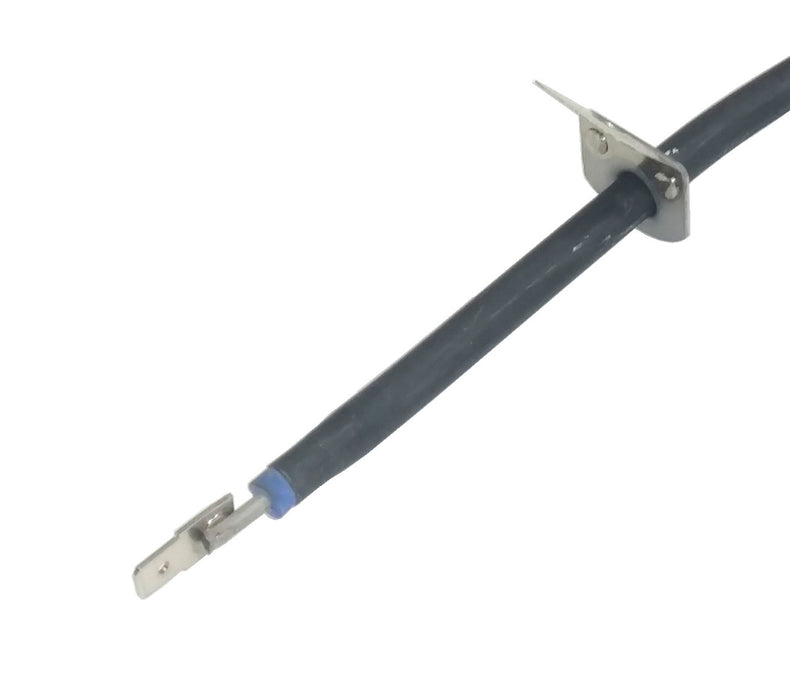

    • Male Quick-Connect Push-In Terminals
    • Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
    • HINT: Use CTRL+F to use the search function for your model number.

    • Fits The Following GE/Kenmore/Sears Oven/Range Model Numbers:
    79092410104, 79092410100, 79092410103, 79092411103, 79092413200, 79092310100, 79092311100, 79092312100, 79092314100, 79092315100, 79092410102, 79092411100, 79092411102, 79092412100, 79092412102, 79092412103, 79092412104, 79092414100, 79092414102, 79092415100, 79092415102, 79092415103, 79092415104, 79092419100, 79092419102, 79093750100, 79093751100, 79093752100, 79093752101, 79093752102, 79093752103, 79093752104, 79093754100, 79095410100, 79095411100, 79095412100, 79095412102, 79095412103, 79095412104, 79095414100, 79095415100, 79095415101, 79095415102, 79095415103, 79095415104, 79095592100, 79095592101, 79095592102, 79095592103, 79095592104, 79095594100, 79095595100, 79095595102, 79095595103, 79095595104, 79092320300, 79092320301, 79092320302, 79092321300, 79092321301, 79092321302, 79092322300, 79092322301, 79092322302, 79092324300, 79092324301, 79092324302, 79092329301, 79092329302, 79092411104, 79092413201, 79092413202, 79092413203, 79092414103, 79092414104, 79092419103, 79092419104, 79092420300, 79092420301, 79092420302, 79092421300, 79092421301, 79092421302, 79092422300, 79092422301, 79092422302, 79092423300, 79092423301, 79092423302, 79092423303, 79092424300, 79092424301, 79092424302, 79092429300, 79092429301, 79092429302, 79092680300, 79092680301, 79092680302, 79092681300, 79092681301, 79092681302, 79092682300, 79092682301, 79092682302, 79092683300, 79092683301, 79092683302, 79092683303, 79092684300, 79092684301, 79092684302, 79092689300, 79092850300, 79092850301, 79092850302, 79092851300, 79092851301, 79092851302, 79092852300, 79092852301, 79092852302, 79092853300, 79092853301, 79092853302, 79092853303, 79092854300, 79092854301, 79092854302, 79092859301, 79092859302, 79092882300, 79092882301, 79092882302, 79092884300, 79092884301, 79092884302, 79092889300, 79092889301, 79092889302, 79093750102, 79093750103, 79093750104, 79093751102, 79093751103, 79093751104, 79093754101, 79093754102, 79093754103, 79093754104, 79093850300, 79093850301, 79093850302, 79093850303, 79093851300, 79093851301, 79093851302, 79093851303, 79093852300, 79093852301, 79093852302, 79093852303, 79093853300, 79093853301, 79093853302, 79093853303, 79093854300, 79093854301, 79093854302, 79093854303, 79093859301, 79093859302, 79093859303, 79094320300, 79094320301, 79094320302, 79094321300, 79094321301, 79094321302, 79094321303, 79094322300, 79094322301, 79094322302, 79094322303, 79094324300, 79094324301, 79094324302, 79094329300, 79094329301, 79094329302, 79094420300, 79094420301, 79094421300, 79094421301, 79094422300, 79094422301, 79094423300, 79094423301, 79094424300, 79094424301, 79094429300, 79094429301, 79094680300, 79094680301, 79094681300, 79094681301, 79094682300, 79094682301, 79094683300, 79094683301, 79094683302, 79094684300, 79094684301, 79094689300, 79094850300, 79094850301, 79094851300, 79094851301, 79094852300, 79094852301, 79094853300, 79094853301, 79094854300, 79094854301, 79094859300, 79094859301, 79095200100, 79095200102, 79095200103, 79095200104, 79095201100, 79095201102, 79095201103, 79095201104, 79095202100, 79095202101, 79095202102, 79095202103, 79095202104, 79095204100, 79095204101, 79095204102, 79095204103, 79095204104, 79095300100, 79095300102, 79095300103, 79095300104, 79095301100, 79095301102, 79095301103, 79095301104, 79095302100, 79095302101, 79095302102, 79095302103, 79095302104, 79095304100, 79095304101, 79095304102, 79095304103, 79095304104, 79095309100, 79095309101, 79095309102, 79095309103, 79095309104, 79095320300, 79095320301, 79095320302, 79095320303, 79095321300, 79095321301, 79095321302, 79095321303, 79095321304, 79095322300, 79095322301, 79095322302, 79095322303, 79095322304, 79095324300, 79095324301, 79095324302, 79095324303, 79095329300, 79095329301, 79095329302, 79095329303, 79095410102, 79095410103, 79095410104, 79095411102, 79095411103, 79095411104, 79095413200, 79095413201, 79095413202, 79095413203, 79095414102, 79095414103, 79095414104, 79095419100, 79095419102, 79095419103, 79095419104, 79095420300, 79095420302, 79095420303, 79095421300, 79095421301, 79095421302, 79095421303, 79095422300, 79095422301, 79095422302, 79095422303, 79095423300, 79095423301, 79095423302, 79095423303, 79095424300, 79095424301, 79095424302, 79095424303, 79095429300, 79095429301, 79095429302, 79095429303, 79095594101, 79095594102, 79095594103, 79095594104, FEF357BBB, FEF357BBC, FEF357BBD, FEF357BSC, FEF357BSD, GLEF396AQA, GLEF396AQB, GLEF396AQC, GLEF396AQD, GLEF396CQA, GLEF396CQB, GLEF396CQC, GLEF396CQD, GLEF396ASA, GLEF396ASB, GLEF396ASC, GLEF396ASD, GLEF396CSA, GLEF396CSB, GLEF396CSC, GLEF396CSD, GLEFS77CBA, GLEFS77CBB, GLEFS77CBC, GLEFS77CBD, FEFL88ASA, FEFL88ASB, FEFL88ASC, GSE3WZCSA, GSE3WZCSB, GSE3WZCSC, GSE3WZCSD, GSE3WZCSE, FEF357AQA, FEF376AQA, FEF376AQB, FEF376AQC, FEF376AQE, FEF376AQF, FEF376AQG, FEF376AQH, FEF376AQJ, FEF376AQK, FEF376AQL, FEF379ACF, FEF379ACG, FEF379ACH, FEF379ACJ, FEF379ACK, FEF379ACL, FEF380MXDCA, FEF380MXDCB, FEFL88ACA, FEFL88ACB, FEFL88ACC, FEFL89CCA, FEFL89CCB, PLEF398ACB, PLEF398ACC, PLEF398CCA, PLEF398CCB, PLEF398CCC, PLEF398CCD, PLEF398CCE, GLEF378ABA, GLEF378ABB, GLEF378ABC, GLEF378ABD, GLEF378ABE, GLEF378ABF, GLEF378ABG, GSE3WZBBA, GSE3WZBBB, GSE3WZBCA, GSE3WZBCB, NGSE3WZABA, NGSE3WZABC, NGSE3WZABD, NGSE3WZABE, GLEF396ABA, GLEF396ABB, GLEF396ABC, PLEF398ACA, FEF379ACA, FEF379ACB, FEF379ACC, FEF379ACD, FEF379ACE, FEFL77ABA, FEFL77ABB, FEFL77ABC, FEFL77ABD, FEFL77ABE, FEFL77ABF, FEFL77ABG, FEFL77ABH, GLEF378CBA, GLEF378CBB, GLEF378CBC, GLEF378CBD, GLEF378CBE, GLEF378CBF, GSE3WZCQA, GSE3WZCQB, GSE3WZCQC, GSE3WZCQD, GSE3WZCQE, FEF357ASA, FEF357ASB, FEF357BSA, FEF357BSB, FEF357BSE, FEF357BSF, FEF376ASA, FEF357AQB, FEF357BBA, FEF357BBE, GSE3WZCBB, GSE3WZCBC, GSE3WZCBD, GSE3WZCBE, GSE3WZCCC, GSE3WZCCD, FEF387XECA, FEF387XECB, FEFL88ABA, FEFL88ABB, FEFL88ABC, FEFL78CBA, FEFL78CBB, FEFL78CBC, FEFL78CBD, FEF377XEQA, FEFL78CQA, FEFL78CQB, FEFL78CQC, FEFL78CQD, GLEF378ASA, GLEF378ASB, GLEF378ASC, GLEF378ASD, GLEF378ASE, GLEF378ASF, GLEF378ASG, GLEF378CSA, GLEF378CSB, GLEF378CSC, GLEF378CSD, GLEF378CSE, GLEF378CSF, GSE3WZBSA, GSE3WZBSB, NGSE3WZASA, NGSE3WZASC, NGSE3WZASD, NGSE3WZASE, GLEF378AQA, GLEF378AQB, GLEF378AQC, GLEF378AQD, GLEF378AQE, GLEF378AQF, GLEF378AQG, GLEF378CQA, GLEF378CQB, GLEF378CQC, GLEF378CQD, GLEF378CQE, GLEF378CQF, GSE3WZBQA, GSE3WZBQB, NGSE3WZAQA, NGSE3WZAQC, NGSE3WZAQD, NGSE3WZAQE, FEFL78CSA, FEFL78CSB, FEFL78CSC, FEFL78CSD, FEFL77AQA, FEFL77AQB, FEFL77AQC, FEFL77AQD, FEFL77AQE, FEFL77AQF, FEFL77AQG, FEFL77AQH, GLEFS77CQA, GLEFS77CQB, GLEFS77CQC, GLEFS77CQD, FEF376ASB, 79095599100, 79095599101, 79095599102, 79095599103, 79095599104, 79095660100, 79095660102, 79095660103, 79095660104, 79095661100, 79095661102, 79095661103, 79095661104, 79095662100, 79095662102, 79095662103, 79095662104, 79095663200, 79095663201, 79095663202, 79095664100, 79095664102, 79095664103, 79095664104, 79095665100, 79095665102, 79095665103, 79095665104, 79095669100, 79095669102, 79095669103, 79095669104, 79095680300, 79095680301, 79095680302, 79095680303, 79095681300, 79095681301, 79095681302, 79095681303, 79095682300, 79095682301, 79095682302, 79095682303, 79095683300, 79095683301, 79095683302, 79095683303, 79095684300, 79095684301, 79095684302, 79095684303, 79095689300, 79095689301, 79095689302, 79095689303, 79095882300, 79095882301, 79095882302, 79095882303, 79095884300, 79095884301, 79095884302, 79095884303, 79095889300, 79095889301, 79095889302, 79095889303, 79095912200, 79095912201, 79095913200, 79095913201, 79095914200, 79095914201, 79095919200, 79095919201, 79095922300, 79095922301, 79095922302, 79095922303, 79095923300, 79095923301, 79095923302, 79095923303, 79095924300, 79095924301, 79095924302, 79095924303, 79095929300, 79095929301, 79095929302, 79095929303, 79099012100, 79099012101, 79099012102, 79099013100, 79099013101, 79099013102, 79099014100, 79099014101, 79099014102, 79099019100, 79099019101, 79099019102, 79099112300, 79099112301, 79099112302, 79099113300, 79099113301, 79099113302, 79099114300, 79099114301, 79099114302, 79099119300, 79099119301, 79099119302
    • Fits The Following Whirlpool Oven/Range Model Numbers:
    FEF357AQA, FEF357AQB, FEF357ASB, FEF357BBC, FEF357BBD, FEF357BBE, FEF357BSA, FEF357BSD, FEF357BSE, FEF357BSF, FEF376AQA, FEF376AQB, FEF376AQG, FEF376AQJ, FEF376AQK, FEF376ASA, FEF376ASC, FEF376ASF, FEF376ASG, FEF376ASK, FEF377XEQA, FEF379ACB, FEF379ACC, FEF379ACD, FEF379ACL, FEF380MXDCB, FEF387XECB, FEFL77AQA, FEFL77AQB, FEFL77ASC, FEFL78CQD, FEFL88ABA, FEFL88ABB, FEFL88ABC, FEFL88ASB, GLEF376ABC, GLEF376AQA, GLEF376AQB, GLEF376AQD, GLEF376AQE, GLEF376ASB, GLEF376ASC, GLEF376ASD, GLEF376ASE, GLEF378ABA, GLEF378ABB, GLEF378ABC, GLEF378ABG, GLEF378AQA, GLEF378AQB, GLEF378AQG, GLEF378ASA, GLEF378ASD, GLEF378ASG, GLEF378CBA, GLEF378CBC, GLEF378CBD, GLEF378CBF, GLEF378CQC, GLEF378CQE, GLEF378CSC, GLEF396ABB, GLEF396ABC, GLEF396AQB, GLEF396AQD, GLEF396ASB, GLEF396ASC, GLEF396ASD, GLEF396CQA, GLEF396CQC, GLEF396CQD, GLEF396CSC, GLEFS77CBB, GLEFS77CBD, GLEFS77CQD, GLEFS77CSD, GSE3WZBBA, GSE3WZBBB, GSE3WZBCA, GSE3WZBCB, GSE3WZBQA, GSE3WZBQB, GSE3WZBSB, GSE3WZCBA, GSE3WZCBD, GSE3WZCBE, GSE3WZCCA, GSE3WZCCD, GSE3WZCQA, GSE3WZCQC, GSE3WZCQE, GSE3WZCSA, GSE3WZCSB, GSE3WZCSC, GSE3WZCSE, NGSE3WZABA, NGSE3WZABC, NGSE3WZABD, NGSE3WZABE, NGSE3WZAQA, NGSE3WZAQC, NGSE3WZAQD, NGSE3WZAQE, NGSE3WZASC, NGSE3WZASD, NGSE3WZASE, PLEF398ACB, PLEF398ACC, PLEF398CCE, FEF357BBA, FEFL78CQA, PLEF398CCA, PLEF398CCB, FEFL78CBA, FEFL88ACC, GSE3WZCCB, FEF357BBB, FEFL78CBB, FEFL78CBD, FEFL78CQB, FEFL89CCA, GSE3WZCBC, GSE3WZCCC, GSE3WZCQD, FEF387XECA, FEFL88ACB, GLEF378AQD, GLEF378CQA, GLEF378CQF, GLEF396ABA, GLEF396AQA, GLEF396AQC, GLEF396CQB, GLEFS77CBA, GLEFS77CBC, GLEFS77CQA, GLEFS77CQC, GSE3WZCBB, GSE3WZCQB, PLEF398CCD, FEFL78CBC, PLEF398CCC, FEFL77ASE, PLEF398ACA, FEFL78CSC, GLEF378CSE, FEF379ACH, GLEF378AQE, FEFL77ABE, FEFL77ABF, FEF379ACK, GLEF378AQC, GLEF378ASC, GLEF378CSB, GLEFS77CSC, FEF379ACE, FEFL77AQC, FEFL77ASH, FEFL78CQC, FEFL78CSA, GLEF378CSD, FEFL89CCB, GLEF378ASE, GLEF378CQD, FEF376ASE, FEFL77ABA, FEFL77ABG, FEF376ASL, FEFL77ABH, FEFL77AQE, FEFL77AQH, FEFL77ASF, FEFL88ACA, GLEF396CSD, GLEFS77CSB, FEFL77ABC, FEF376AQL, FEFL77ABB, FEFL77AQG, GLEF378ASB, GLEF378CQB, GLEF378CSA, GLEFS77CSA, NGSE3WZASA, FEF357ASA, FEF379ACG, FEF379ACJ, FEF380MXDCA, FEFL77ASA, FEFL77ASG, FEFL78CSB, GLEF378ABF, GLEF378AQF, GLEF378ASF, GLEF396ASA, GLEF396CSB, GLEFS77CQB, GSE3WZCSD, FEF376AQH, FEF376ASH, FEF376ASJ, FEF379ACF, FEFL77ABD, FEFL77AQD, FEFL77AQF, FEFL77ASB, GLEF378ABE, GLEF378CBE, FEF357BSB, FEF357BSC, FEF376AQC, FEF376AQE, FEF376AQF, FEF376ASB, FEF379ACA, FEFL77ASD, FEFL78CSD, FEFL88ASA, FEFL88ASC, GLEF376ABA, GLEF376ASA, GLEF378ABD, GLEF378CBB, GLEF378CSF, GLEF396CSA, GSE3WZBSA



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
