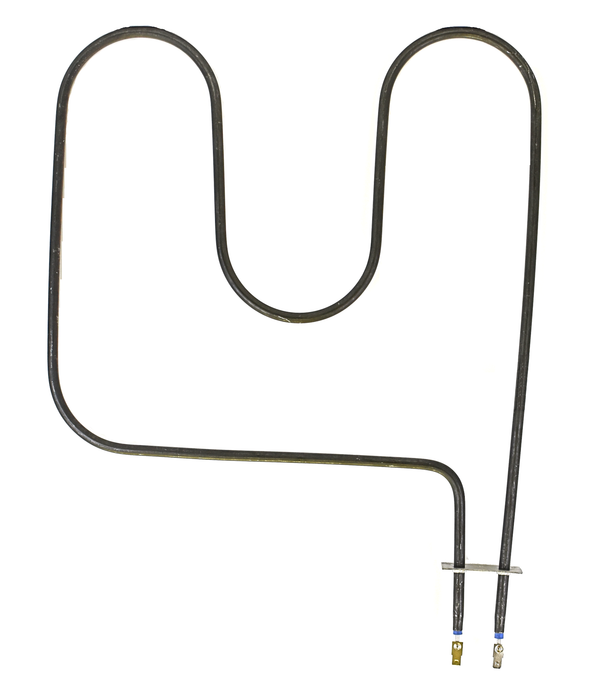

Model TC-4884: Athens E-101-030 / Kenmore 7620 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 250V

Sale price $ 43.10 Regular price $ 50.70

Therm Coil Drawing No.: 366R-4041-003      Therm Coil Model No.: TC-4884

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Athens E-141-030, Kenmore 7620, 456614, CH4884, 456614, CH787, RP787, TS4884, TS4884/787, TS787, TS787/4884, YCH4884, AP3389294

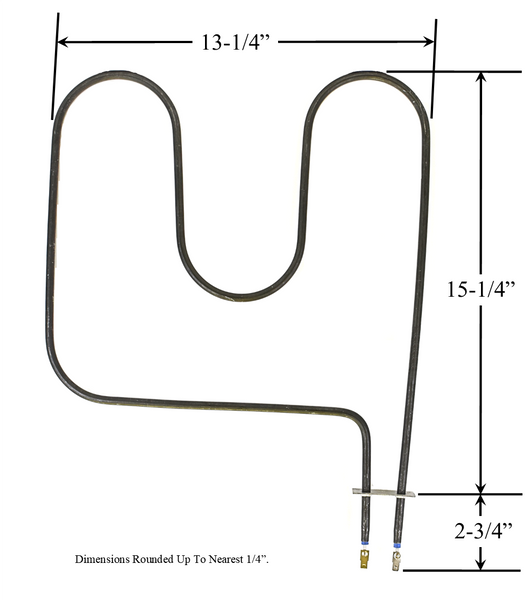

  • Approximate Overall Size: 13-1/4" Wide x 15-1/8" Length From Back Of Element To Mounting Bracket x 2-3/4" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.

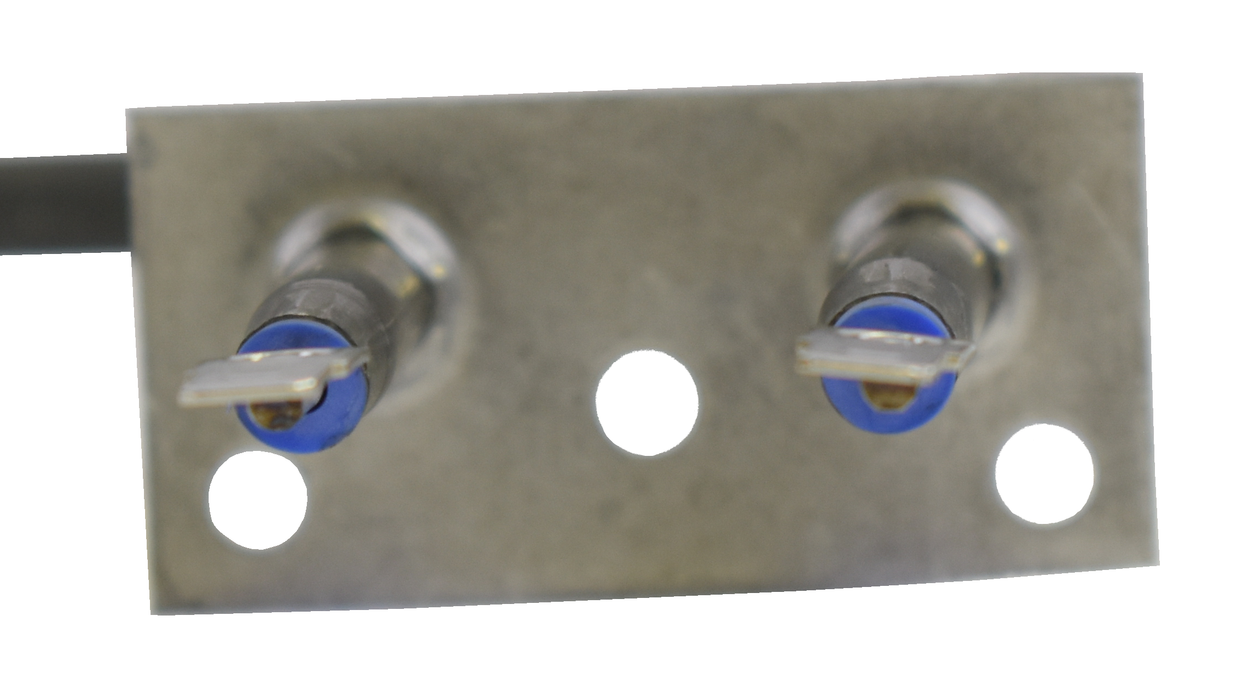

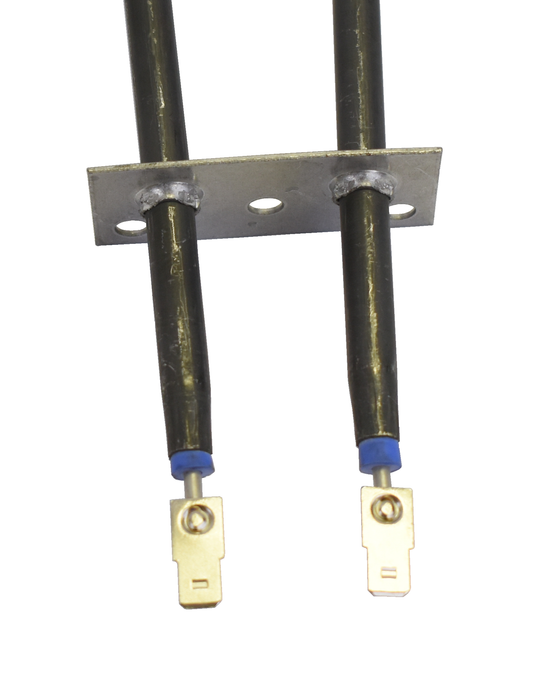

  • 1/4" Male Push-In Quick-Connect Terminals
  • Used in various models of  Kenmore/Sears, Kelvinator, Whirlpool, Frigidaire, Electrolux, Gibson, Westinghouse, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.
Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
