Model TC-44K5012: GE WB44K5012 / Whirlpool WP4334928 Equivalent Range/Oven Bake Replacement Element, 1,940/2,585 W @ 208/240 V

Save 15% Save 15%
Original price $ 89.50
Original price $ 89.50 - Original price $ 89.50
Original price $ 89.50
Current price $ 76.05
$ 76.05 - $ 76.05
Current price $ 76.05
Availability:
4 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3021-003      Therm Coil Model No.: TC-44K5012

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

G.E.: WB44K5012, WB44K5012E, WB44K6012, WB44M0001, WB44M1, WB44X0230, WB44X0234, WB44X230, WB44X234

Kenmore / Roper / Whirlpool: WP4334928, 4334928, 325883, 326364, 326365, 326366, 340521, 4334756

Other: CH44K5012, 202-877655-001, 877655-001, 440380, TJCH44K5012, AP2030968, AP6009223, AP4830278, AP3134708, AP4830286, AP4621732, AP3060857, AP6326729, AP5325841, 2209475, 1944, 8029, 2429, ERB44K5012, RP44K5012, TJ90CH44K5012, AH249247, EA249247, PS249247, PS11742376

    • 1940W/2585 W @ 208W/240V Rating

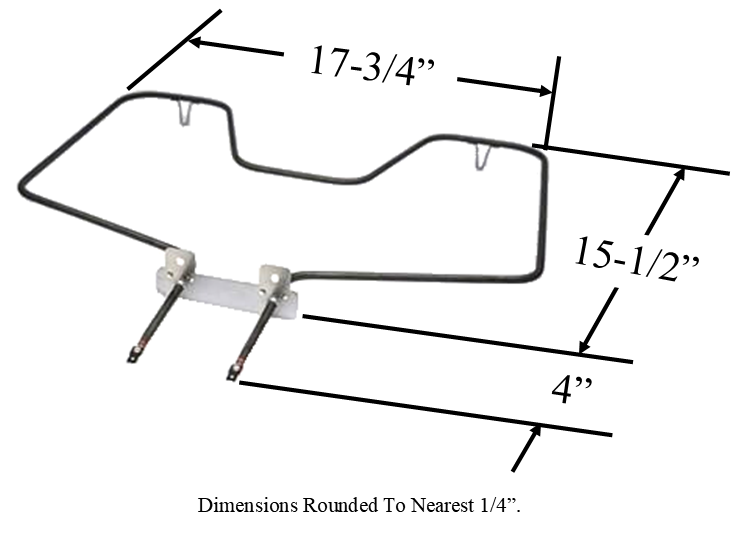

    • Approximate Overall Size: 17-3/4" Wide x 15-3/8" Length From Front Of Element To Mounting Brackets x 4" Insert From Mounting Bracket To End Of Terminals x 2-3/4" Center-to-Center Terminal Width.
    • Male Quick-Connect Push-In Terminals
    • Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance - it's is used on many models.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
