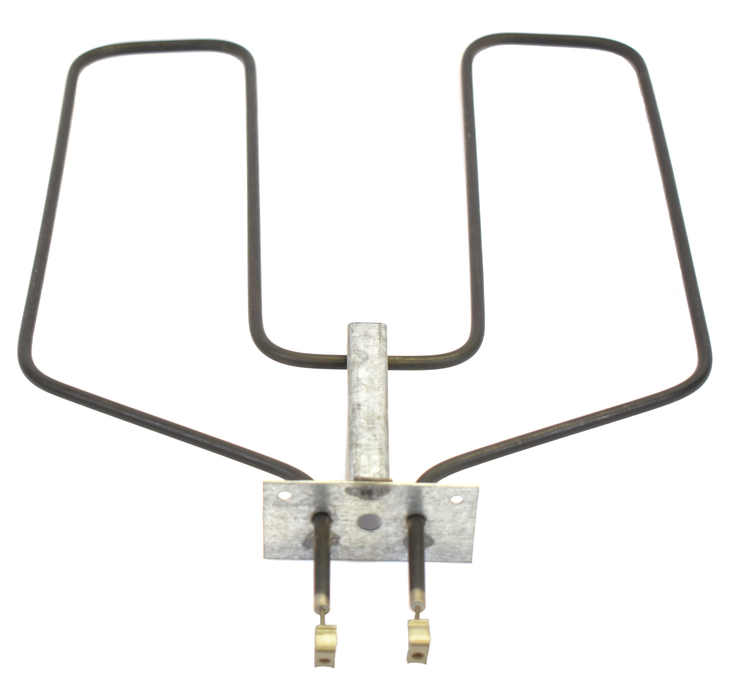

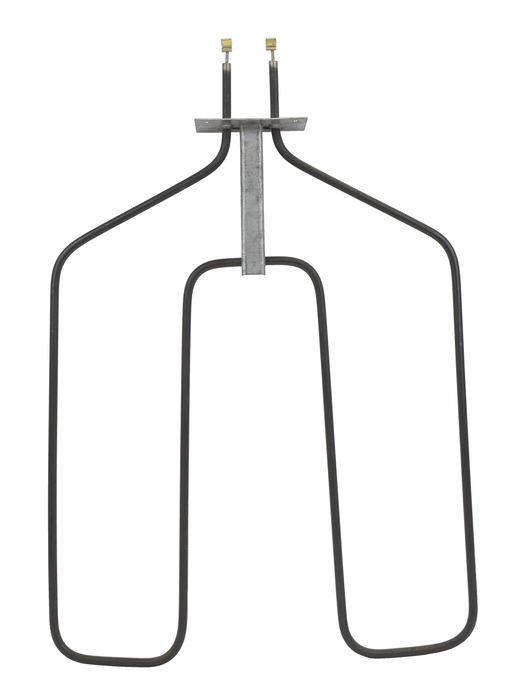

Model TC-44X173A: GE WB44X173 Equivalent Range/Oven Broil Replacement Element, 3,400W @ 250V

Sale price $ 32.30 Regular price $ 38.00

Therm Coil Drawing No.: 366R-4124-003      Therm Coil Model No.: TC-44X173A

Description

NOTE: TC-173A (366R-4124-003) has right-angle threaded lug terminals, which is an alternate terminal type that differs from the OEM style.  The original OEM of WB44X173 has straight threaded lug terminals and Therm Coil's direct replacement with straight threaded lug terminals is our model TC-173 (366R-3085-003).  Please be sure which terminal type you need prior to ordering.

HELPFUL HINT: Use CTRL+F to use the search function for your part number.

  • Replacement For Part Numbers:

WB44X173, CH44X173

  •  3400 W @ 250V Rating

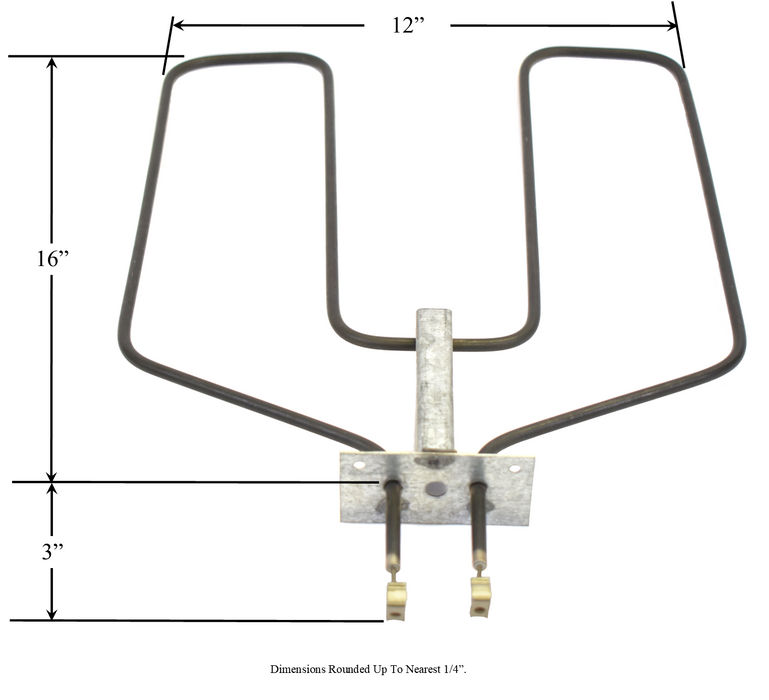

  • Approximate Overall Size: 12" Wide x 15-7/8" Length From Back Of Element To Mounting Bracket x 2-7/8" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.

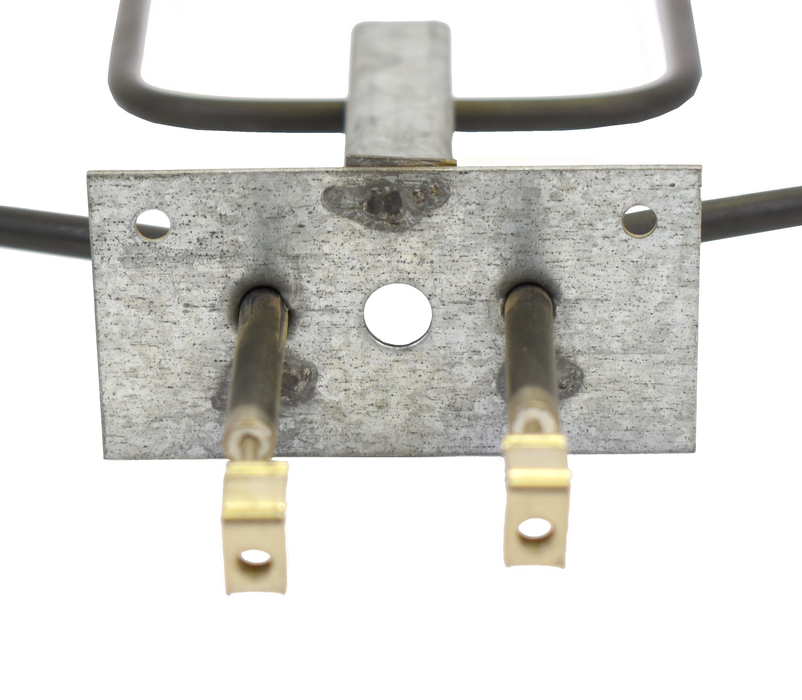

  • Right-Angle Threaded Screw-In Terminals
  • Used in various models of GE brands including General Electric (G.E.), Hotpoint, RCA, Sears / Kenmore, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.









Therm Coil MFG. Co. is not affiliated with G.E. Corporation, Sears, or any other listed manufacturers or their affiliates.
