Model TC-44X200: GE WB44X200 Range/Oven Bake Replacement Element, 2,330/3,100W @ 208/240V

Discounted price $ 59.25 List price $ 69.70

Therm Coil Drawing No.: 366R-3013-003      Therm Coil Model No.:TC-44X200

Description

HELPFUL HINT: Use CTRL+F to use the search function for your element part number:
  • Replacement For Part Numbers:

G.E.: WB44X200, WB44X0160, WB44X0200, WB44X160, WB44X200R, WB44X6200

Other: CH44X200, TJCH44X200, TJ90CH44X200, CH44X160, 14200023, 454483, 458290, 202-875843-001, 875843-001, AP2031031, AP6326734, 3267, 832179, ERB44X200, R0710083, RP44X160, RP44X200, TS44X160, TS44X200, YCH44X200, AH249424, EA249424, PS249424, TS44X200

  • 2330W / 3100W @ 208V / 240V

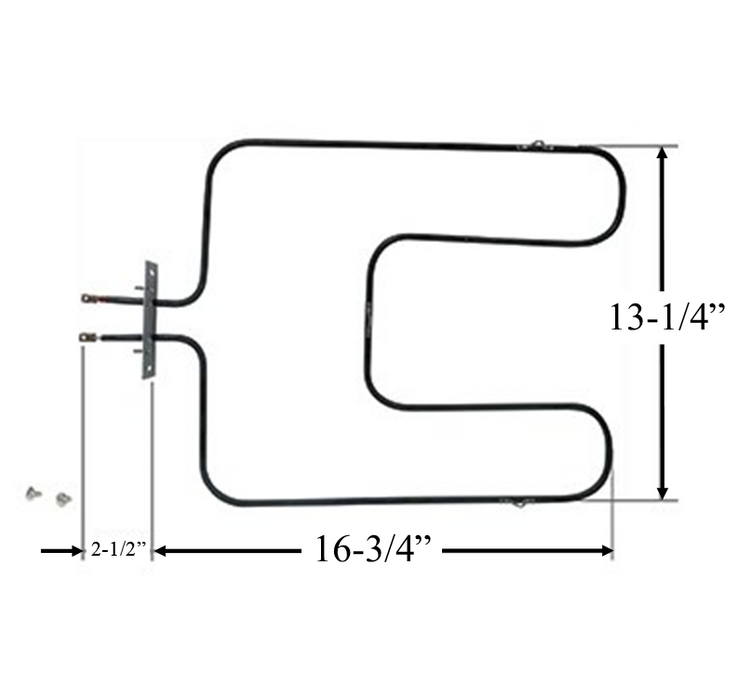

  • Approximate Overall Size:  13-1/4" Wide x 16-3/4" From Back Of Element To Bracket x 2-1/2" Insert From Bracket To End Of Terminals x 1-1/2" Center-to-Center Of Terminals.

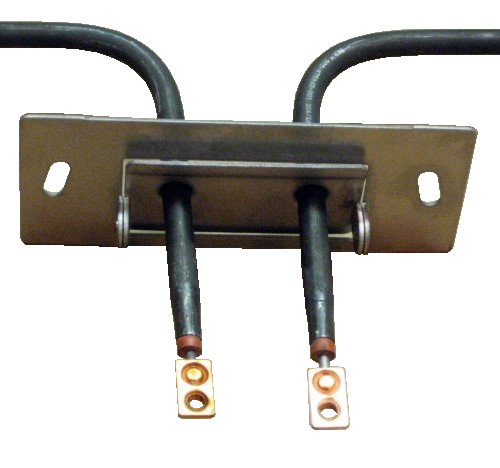

  • Screw-In Terminals With Required Specific Screws Included
  • Used in various models of General Electric, Hotpoint, RCA Sears / Kenmore, and othersIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your oven/range model number:
    • Used In The Following Roper/Whirlpool Oven/Range Model Numbers and More:

    JKP27G*J4, JKP27G*J3, JKP07G*J3, JKP07G*J5, JKP38G*J3, JKP38G*J6, JKP37G*L1, JKP27G*D1, JKP07G*06, JRP03G*J5, JKP27G*07, JKP07*07, JKP07G*D1, JKP07G*J4, JRP03G*J3, JKP07W*N1, JKP36G*06, JKP38G*J1, JKP07G*H1, JKP36G*H1, JKP40G*K1, JRP03G*07, RK747G*J3, JKP07G*J1, JKP16G*J6, JKP60G*02, JKP61G*01, JKP67G*01, JMP26G*J3, JKP07*J3, JKP67G*02, JKP07*J6, JKP07G*J2, JKP27*J4, JKP38G*J5, JKP65G*01, JKP97G*06, JKP97G*08, JMP26*05, JK29*09, JKP07*D1, JKP07*J1, JKP27G*H1, JKP36G*D1, JKP40G*K4, JKP62G*K1, JMP26G*J1, RJ742G*J3, RK747G*D2, RK767G*J3, RK777G*J3, JKP16G*J3, JKP19G*K2, JKP19G*K4, JKP27*J3, JKP36*08, JKP36G*09, JRP03G*06, JRP14G*J3, RK747G*J5, RK960G*02, JKP07*J5, JKP16G*J1, JKP38G*J2, JKP47G*K5, JKP61G*J2, JKP61G*J3, JKP66G*02, JMP26G*H1, RJ742*T7, RJ742G*T6, RK747G*D1, RK747G*J4, RK747G*T5, RK767G*J4, RK777G*D1, RK777G*D2, RK961G*01, JK29*06, JK29*07, JKP27G*J1, JKP36G*J1, JKP38G*J4, JKP39G*K1, JKP39G*K3, JKP48G*K2, JKP60G*01, JKP61G*J1, JKP65G*D1, JKP67G*J3, JRP03*06, JRP03*J3, RJ742G*J1, RJ742G*J5, RK767G*D1, RK960G*01, JKP16G*D1, JKP19G*K1, JKP19G*K3, JKP27*08, JKP27G*J2, JKP36G*07, JKP40G*K3, JKP77G*01, JKP78G*K1, JMP26*D1, JRP03*J1, JRP03G*H1, RJ745G*J1, RK747*D1, RK747G*J2, RK767G*D2, RK966G*06, RK966G*08, JK29*08, JKP07*J4, JKP16G*07, JKP16G*H1, JKP16G*J4, JKP18G*K1, JKP18G*K2, JKP36*07, JKP36*09, JKP39G*K2, JKP40G*K2, JKP47G*K3, JKP67G*J1, JKP77G*02, JRP03*J4, JRP03*J5, JRP03G*J1, JRP14G*J1, JRP14G*J2, RJ742G*J2, RJ742G*J4, RJ742G*T7, RK747*J1, RK747G*J1, RK747G*T6, RK777G*J2, RK777G*J5, RK777G*T7, RK777G*T8, RK961G*J3, JK25*02, JKP07*D2, JKP07*J2, JKP070J3, JKP07G*D2, JKP07G0J3, JKP07GJ4, JKP07GJ5, JKP07J4, JKP07J5, JKP07J6, JKP16G*D2, JKP16G*J2, JKP16G*J5, JKP16G0J3, JKP16GJ4, JKP16GJ5, JKP16GJ6, JKP18G*K3, JKP18G*K4, JKP27*J5, JKP36*10, JKP36*D1, JKP36*D2, JKP36G*08, JKP36G*D2, JKP37G*L1WG, JKP38G0J3, JKP38GJ4, JKP38GJ5, JKP38GJ6, JKP39G*K4, JKP46G*K1, JKP46G*K2, JKP46G*K3, JKP46G*K4, JKP47G*K1, JKP47G*K2, JKP47G*K4, JKP48G*K1, JKP48G*K3, JKP48G*K4, JKP48G*K5, JKP60G*03, JKP66G*01, JKP67G*J2, JKP76G*01, JKP77G*J1, JKP77G*J2, JKP77G*J3, JMP26*07, JMP26*08, JMP26G*01, JMP26G*J2, JMP26G0J3, JMP26GJ4, JMP26GJ5, JRP03*07, JRP03*J2, JRP030J3, JRP03G*J2, JRP03G*J4, JRP03G0J3, JRP03GJ3, JRP03GJ4, JRP03GJ5, JRP03J3, JRP03J4, JRP03J5, JRP03J6, JRP14G*06, JRP14G*07, JRP14G*H1, JRP14G*J4, JRP14G*J5, JRP14G*J6, JRP14G0J3, JRP14GJ3, JRP14GJ4, JRP14GJ5, JRP14GJ6, RJ742*J1, RJ742*T6, RJ745G*J2, RJ745G*J3, RJ745G*T6, RJ745G*T7, RK747*D2, RK747*T6, RK767*T6, RK777G*J1, RK777G*J4, RK777G*J6, RK777G*M1, RK960G*03, RK961G*J1, RK961G*J2, RK966G*09, RK966G*10, JKP62G*K3, JKP62G*K2, JMP26G*J5, JKP78G*K2, JKP68G*K3, JKP78G*K3, JMP26G*J4, JKP78G*K4, JKP68G*K2, RK962G*K3, RK966G*12, RK962G*K2, JKP27*J2, JKP68G*K1, JKP80G*04, JMP26*06, RK767*D1, RK767*T5, RK767G*J1, RK767G*J2, RK767G*T7, RK955G*01, RK966G*07, JKP27*D1, JKP27*D2, JKP27*J1, JKP27G*D2, JKP27GJ3, JKP27GJ4, JKP27J3, JKP27J4, JKP27J5, JKP55G*D1, JKP62GK2, JKP62GK3, JKP65G*02, JKP65G*03, JKP68GK2, JKP68GK3, JKP78G0K2, JKP78GK3, JKP80G*03, JKP80G*05, JKP80G*06, RK767*T7, RK767G*T5, RK767G*T6, RK955G*D1, RK959G*01, RK959G*D1, RK962G*K1, RK966G*11, JK25x02, JK29x06, JK29x07, JK29x08, JK29x09, JKP07Gx06, JKP07GxD1, JKP07GxH1, JKP07GxJ1, JKP07GxJ2, JKP07GxJ3, JKP07GxJ4, JKP07GxJ5, JKP07WxN1, JKP07x07, JKP07xD1, JKP07xJ1, JKP07xJ2, JKP07xJ3, JKP07xJ4, JKP07xJ5, JKP07xJ6, JKP16Gx07, JKP16GxD1, JKP16GxH1, JKP16GxJ1, JKP16GxJ2, JKP16GxJ3, JKP16GxJ4, JKP16GxJ5, JKP16GxJ6, JKP18GxK1, JKP18GxK2, JKP18GxK3, JKP18GxK4, JKP19GxK1, JKP19GxK2, JKP19GxK3, JKP19GxK4, JKP27Gx07, JKP27GxD1, JKP27GxH1, JKP27GxJ1, JKP27GxJ2, JKP27GxJ3, JKP27GxJ4, JKP27x08, JKP27xD1, JKP27xJ1, JKP27xJ2, JKP27xJ3, JKP27xJ4, JKP27xJ5, JKP36Gx06, JKP36Gx07, JKP36Gx08, JKP36Gx09, JKP36GxD1, JKP36GxH1, JKP36GxJ1, JKP36x07, JKP36x08, JKP36x09, JKP36x10, JKP36xD1, JKP37GxL1, JKP38GxJ1, JKP38GxJ2, JKP38GxJ3, JKP38GxJ4, JKP38GxJ5, JKP38GxJ6, JKP39GxK1, JKP39GxK2, JKP39GxK3, JKP39GxK4, JKP40GxK1, JKP40GxK2, JKP40GxK3, JKP40GxK4, JKP46GxK1, JKP46GxK2, JKP46GxK3, JKP46GxK4, JKP47GxK1, JKP47GxK2, JKP47GxK3, JKP47GxK4, JKP47GxK5, JKP48GxK1, JKP48GxK2, JKP48GxK3, JKP48GxK4, JKP48GxK5, JKP55GxD1, JKP60Gx01, JKP60Gx02, JKP60Gx03, JKP61Gx01, JKP61GxJ1, JKP61GxJ2, JKP61GxJ3, JKP62GxK1, JKP62GxK2, JKP62GxK3, JKP65Gx01, JKP65Gx02, JKP65Gx03, JKP65GxD1, JKP66Gx01, JKP66Gx02, JKP67Gx01, JKP67Gx02, JKP67GxJ1, JKP67GxJ2, JKP67GxJ3, JKP68GxK1, JKP68GxK2, JKP68GxK3, JKP76Gx01, JKP77Gx01, JKP77Gx02, JKP77GxJ1, JKP77GxJ2, JKP77GxJ3, JKP78GxK1, JKP78GxK2, JKP78GxK3, JKP78GxK4, JKP80Gx03, JKP80Gx04, JKP80Gx05, JKP80Gx06, JKP97Gx06, JKP97Gx08, JMP26GxH1, JMP26GxJ1, JMP26GxJ2, JMP26GxJ3, JMP26GxJ4, JMP26GxJ5, JMP26x05, JMP26x06, JMP26x07, JMP26x08, JMP26xD1, JRP03Gx06, JRP03Gx07, JRP03GxH1, JRP03GxJ1, JRP03GxJ2, JRP03GxJ3, JRP03GxJ4, JRP03GxJ5, JRP03x06, JRP03xJ1, JRP03xJ2, JRP03xJ3, JRP03xJ4, JRP03xJ5, JRP14Gx06, JRP14GxH1, JRP14GxJ1, JRP14GxJ2, JRP14GxJ3, JRP14GxJ4, JRP14GxJ5, JRP14GxJ6, RJ742GxJ1, RJ742GxJ2, RJ742GxJ3, RJ742GxJ4, RJ742GxJ5, RJ742GxT6, RJ742GxT7, RJ742xJ1, RJ742xT6, RJ742xT7, RJ745GxJ1, RJ745GxJ2, RJ745GxJ3, RJ745GxT6, RJ745GxT7, RK747GxD1, RK747GxD2, RK747GxJ1, RK747GxJ2, RK747GxJ3, RK747GxJ4, RK747GxJ5, RK747GxT5, RK747GxT6, RK747xD1, RK747xD2, RK747xJ1, RK747xT6, RK767GxD1, RK767GxD2, RK767GxJ1, RK767GxJ2, RK767GxJ3, RK767GxJ4, RK767GxT5, RK767GxT6, RK767GxT7, RK767xD1, RK767xT5, RK767xT6, RK767xT7, RK777GxD1, RK777GxD2, RK777GxJ1, RK777GxJ2, RK777GxJ3, RK777GxJ4, RK777GxJ5, RK777GxJ6, RK777GxM1, RK777GxT7, RK777GxT8, RK955Gx01, RK955GxD1, RK959Gx01, RK959GxD1, RK960Gx01, RK960Gx02, RK960Gx03, RK961Gx01, RK961GxJ1, RK961GxJ2, RK961GxJ3, RK962GxK1, RK962GxK2, RK962GxK3, RK966Gx06, RK966Gx07, RK966Gx08, RK966Gx09, RK966Gx10, RK966Gx11, RK966Gx12



    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any of their affiliates.
