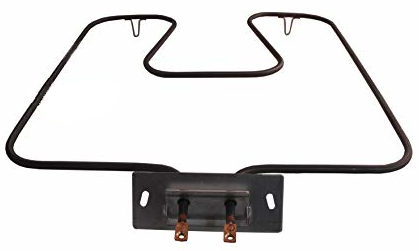

Therm Coil Drawing No.: 366R-4126-003 Therm Coil Model No.: TC-44X5043
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
G.E.: WB44X5043, WB44X0002, WB44X0004, WB44X0005, WB44X0006, WB44X0063, WB44X0065, WB44X0067, WB44X0068, WB44X0073, WB44X0093, WB44X0094, WB44X0142, WB44X0143, WB44X142, WB44X142R, WB44X143, WB44X2, WB44X4, WB44X5, WB44X5025, WB44X5028, WB44X5043R, WB44X5044, WB44X5049, WB44X5050, WB44X5078, WB44X5079, WB44X5080, WB44X5081, WB44X5084, WB44X6, WB44X6043, WB44X63, WB44X65, WB44X67, WB44X68, WB44X73, WB44X93, WB44X94, WB45X0003, WB45X0043, WB45X0057, WB45X3, WB45X43, WB45X57
Hotpoint: 663130, 663132, 664640, 664641, 664729, 664730
Montgomery Ward: 88-5861
Other: CH44X5043, CH44X5025, CH44X5044, CH981, TJ90CH44X5043, 202-873885-001, 873885-001, 202-872819-001, 872819-001, 202-872856-001, 872856-001, 14200117, 450538, 454280, AP2031077, AP5183479, AP3138638, AP3771664, AP3956014, AP3086931, 115622, 115621, 115623, 2219036, ERB44X142, ERB44X5043, ERB44X5078, ERB44X5080, RP44X5043, RP981, TS44X5043, TS981, AH249449, EA249449, PS249449, TS44X5043, YCH44X5025
- 3000 W @ 250 V Rating
-

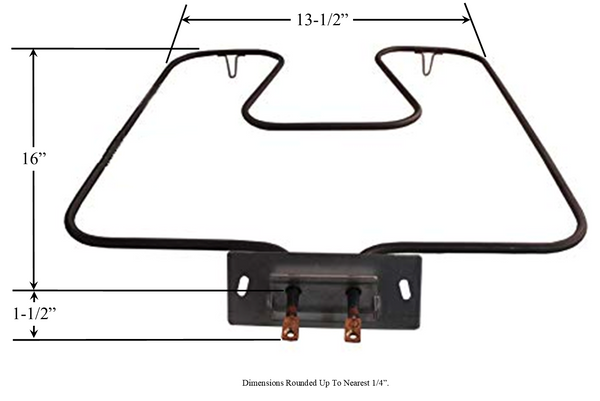

Approx. Overall Size: 13-1/2" Width x 15-7/8" Length From Back Of Element To Mounting Brackets x 1-3/8" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.
- Screw-In Tab Terminals
- Used in various G.E brand ovens, including General Electric, Hotpoint, RCA, Sears / Kenmore, and Maytag ovens: Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.
HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.
- Replacement For Appliance Model Numbers:
RB636X01, RF764X04, RF764X05
Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
