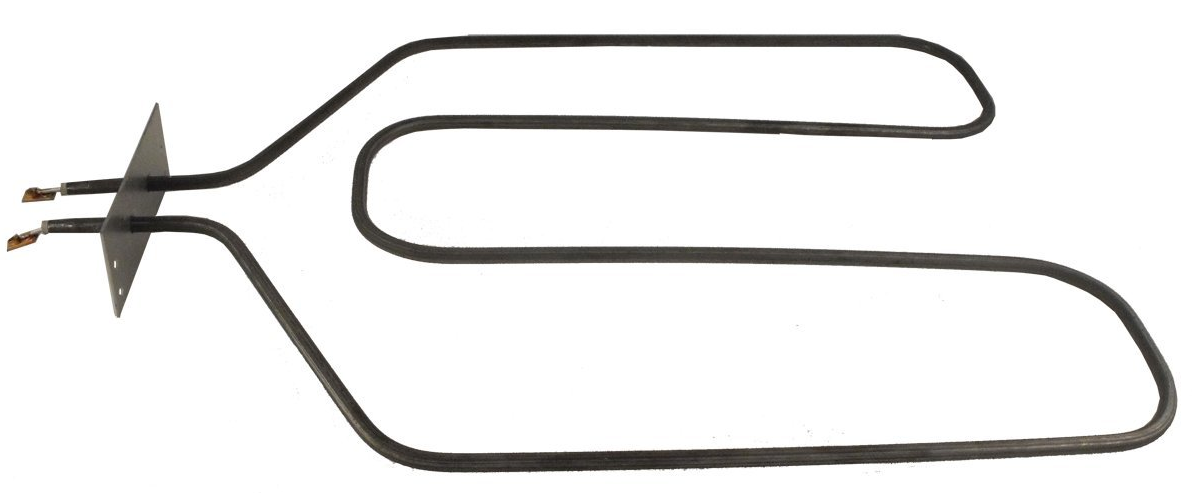

Model TC-44X5074: GE WB44X5074 Equivalent Range/Oven Bake Replacement Element, 3,410 W @ 250 V

Save 15% Save 15%
Original price $ 47.15
Original price $ 47.15 - Original price $ 47.15
Original price $ 47.15
Current price $ 40.08
$ 40.08 - $ 40.08
Current price $ 40.08
Availability:
Low Stock

Therm Coil Drawing No.: 366R-4127-003      Therm Coil Model No.: TC-44X5074

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

G.E. / Maytag: WB44X5074, WB44X5075

Others: CH44X5074, TJ90CH44X5074, 458185, EA249460, ERB44X5074, PS249460, RP44X5074, TJWB44X5074, TS44X5074, AH249460, AP2031082, AP3886825, AP3086933, 260998, 115625, B00MOCNQIK

  • 3410 W @ 250 V Rating

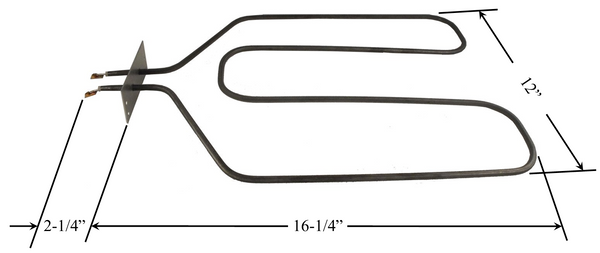

  • Approx. Overall Size: 12" Width x 16-1/4" Length From Back Of Element To Mounting Brackets x 2-1/4" Insert From Bracket To Terminal Ends x  1-1/4" Center-to-Center Terminal Width.
  • Screw-In Tab Terminals
  • Used in various G.E brand ovens, including General Electric, Hotpoint, RCA, Sears / Kenmore, and Maytag ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Element Used In Appliance Model Numbers:

RB524XA1, RB525XA1, RB528XA1, RB536XA1, RB628XA1, RB636X01, RB636X02, RB636X03, RB636XA1, RF43XR3, RF49XR3, RF764X04, RF764X05, RS776GX01

Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
