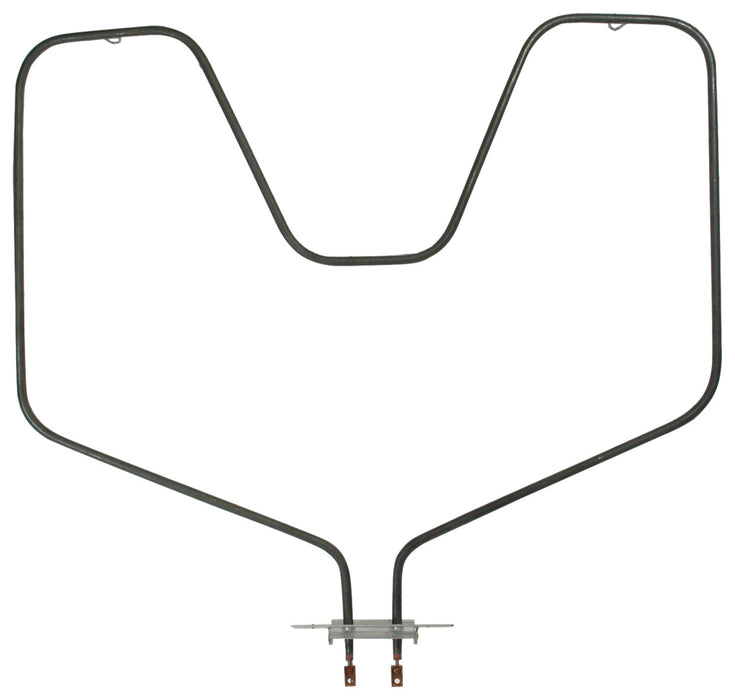

Therm Coil Drawing No.: 366R-3061-003 Therm Coil Model No.: TC-44X5099
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers
G.E.: WB44X5099, WB44X0103, WB44X0105, WB44X0111, WB44X0112, WB44X0117, WB44X0118, WB44X0119, WB44X0120, WB44X0125, WB44X0126, WB44X0133, WB44X103, WB44X105, WB44X111, WB44X112, WB44X117, WB44X118, WB44X119, WB44X120, WB44X125, WB44X126, WB44X133, WB44X5083, WB44X5083R, WB44X5098, WB44X5099R, WB44X6083, WB44X6099, WB49X0040, WB49X40.
Other: CH44X5099, CH44X126, CH44X5083, TJ90CH44X5099, TJCH44X5099, TJ90CH44X126, 3366, 14200018, 454811, 450546, 458206, RP44X5099, TJ90RP44X5099, ERB44X126, ERB44X5099, TS44X5099, YCH44X5099, RP44X126, TS44X126, WW44X126, YCH44X126, RP44X5083, TS44X5083, YCH44X5083, AH249483, AP7, EA249483, PS249483, RP44X5099, TS44X5099, AP2031097, AP5183483, AP6326736, AP5183474, AP5183482, 115628, 115606, 115627
- 2585W @ 250V (2382W @ 240V or 1789W @ 208V)
- Approximate Overall Size: 18" Wide x 15" Length From Back Of Element To Mounting Brackets x 1-1/4" Center-to-Center Terminal Width (variable due to design) x 1-5/8" Insert From Bracket To Terminal End (NOTE: This Dimension is shorter than the original dimension on Part Number WB44X5083 and WB44X126 but it is fully compatible).
- #8-32 Threaded Screw-In Terminals
- Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore, and other Ranges And/Or Ovens: Not All compatible range/oven models are listed. Use part numbers and dimensions to determine if this baking element will fit your appliance - it's is used on many models.
- Fits GE and Hotpoint Oven/Range Model Numbers (and many not listed):
