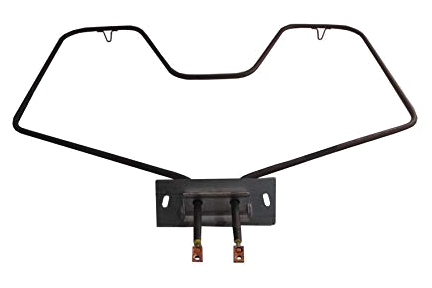

Model TC-44X5083: GE WB44X5083 Range/Oven Bake Replacement Element, 2,585W @ 250V

Save 15% Save 15%
Original price $ 47.85
Original price $ 47.85 - Original price $ 47.85
Original price $ 47.85
Current price $ 40.67
$ 40.67 - $ 40.67
Current price $ 40.67
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3016-003      Therm Coil Model No.: TC-44X5083


  • HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

G.E.: WB44X5083, WB44X5085

Other: CH44X5083, TJ90CH44X5083, 458206, 202-875833-001, 875833-001, 115627, RP44X5083, TS44X5083, YCH44X5083, B003N6RPGK, AP5183482

  • 2585 W @ 250V Rating

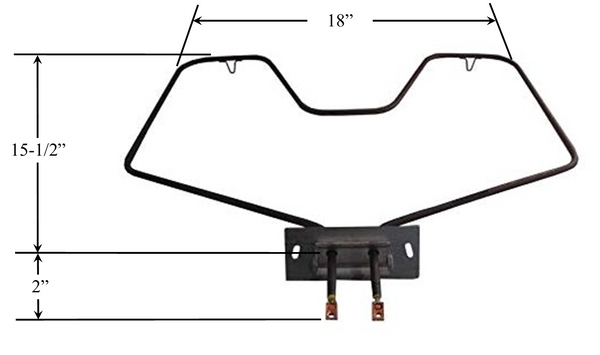

  • Approximate Overall Size: 18" Wide x 15-1/2" Length From Back Of Element To Mounting Bracket x 2" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.
  • #8-32 Threaded Screw-In Terminals
  • Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not All compatible range/oven models are listed.  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.


Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
