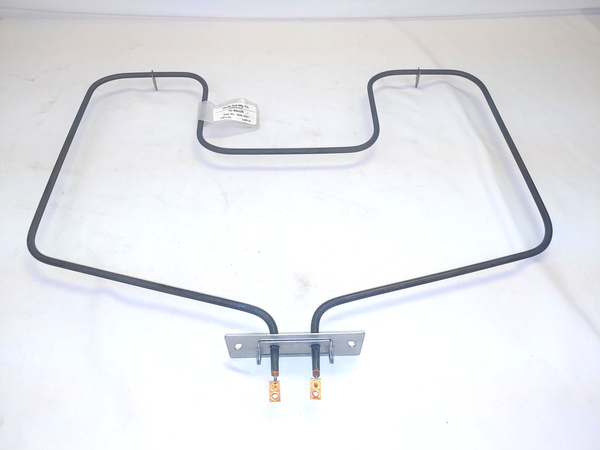

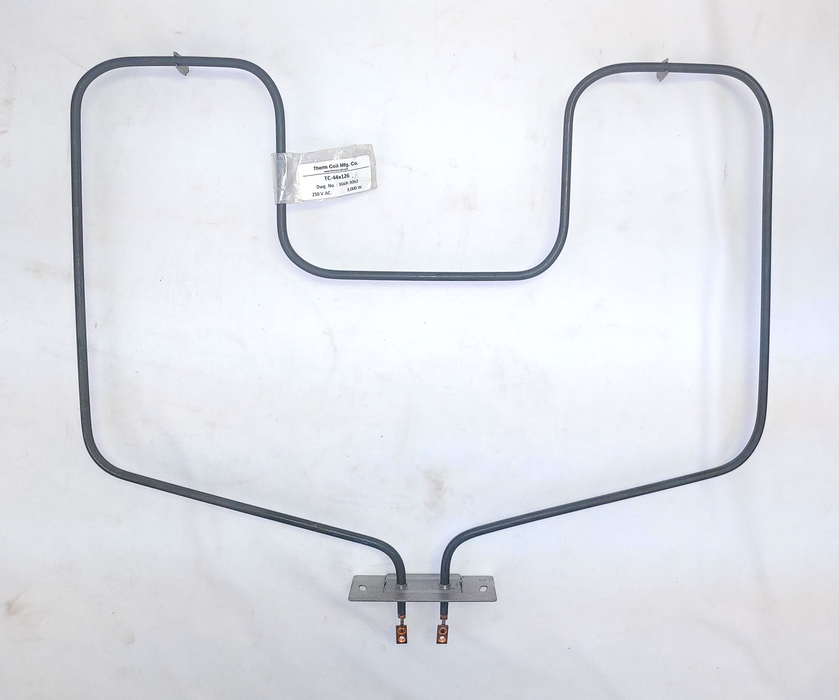

Therm Coil Drawing No.: 366R-3062-003 Therm Coil Model No.: TC-44X126
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
G.E.: WB44X126, WB44X118, WB44X105, WB44X120, WB44X112, WB44X133
Montgomery Ward: 88-5847
Other: CH44X126, 45046
- 3,000W @ 250V
- Approximate Overall Size: 19-1/2" Wide x 14-7/8" Length From Back Of Element To Mounting Brackets x 1-1/4" Center-to-Center Terminal Width (variable due to design) x 3/4" From Bracket To Element Sheath End (Before Ceramic End Bead And Terminals).

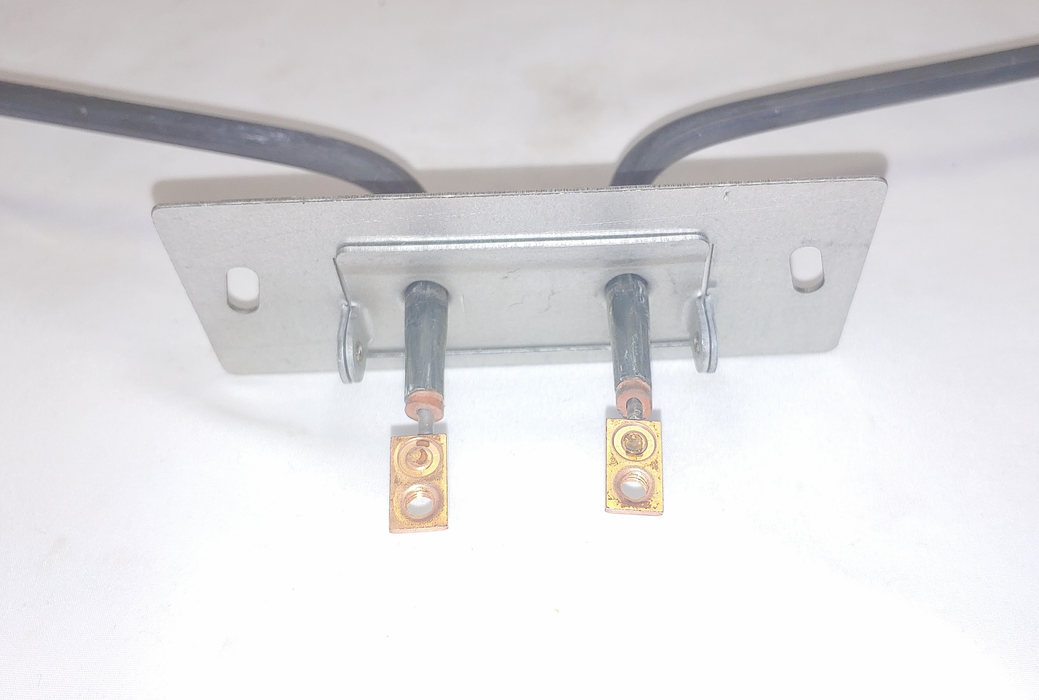

- #8-32 Threaded Screw-In Terminals
- Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this baking element will fit your appliance - it's is used on many models.
