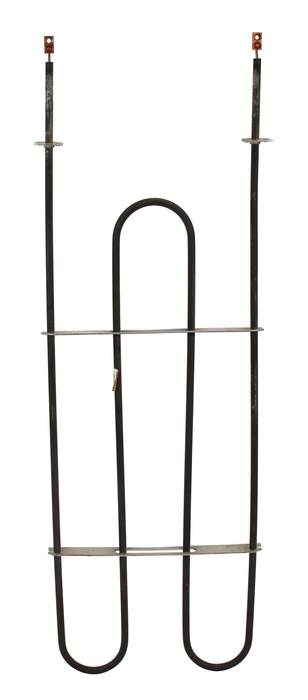

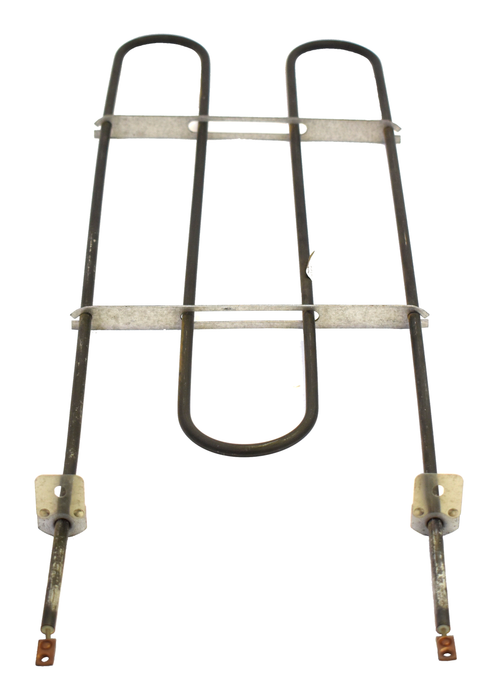

Model TC-4806: Roper/Kenmore 113131 Equivalent Range/Oven Broil Replacement Element, 2,500W @ 208V

Therm Coil Drawing No.: 366R-4198-003      Therm Coil Model No.: TC-4806

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Roper/Kenmore: 113131, 293117, 319845

Whirlpool: CH4806

Other: CH4806, 457625, TS4806, AP3956015, AP3086944, AP4597462, AP2603950, AP4620826, AP2608460

• 2500 W @ 208 V Rating.

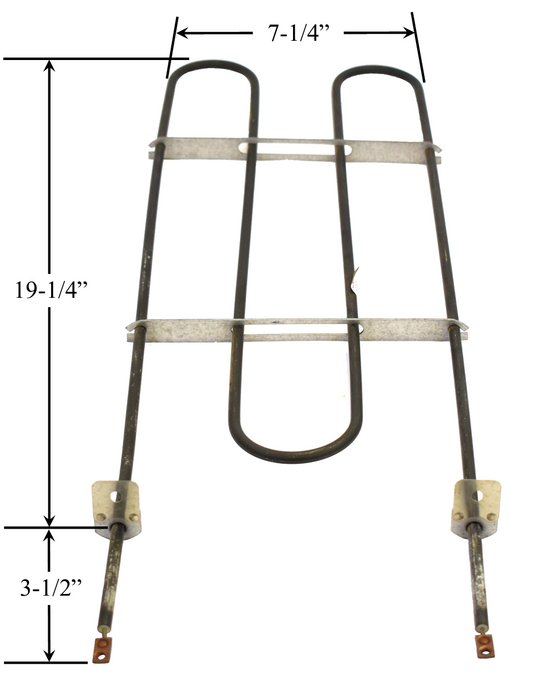

• Approx. Overall Size: 7-1/4" Width x 19-1/4" Length From Back Of Element To Mounting Brackets x 3-1/2" Insert From Bracket To Terminal Ends.

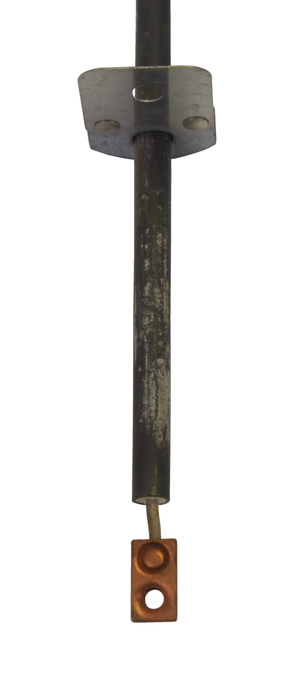

• Threaded Screw-In Terminals
• Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.

• Used In Roper Appliance Model Numbers:

H9608W0, N9608W0

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
