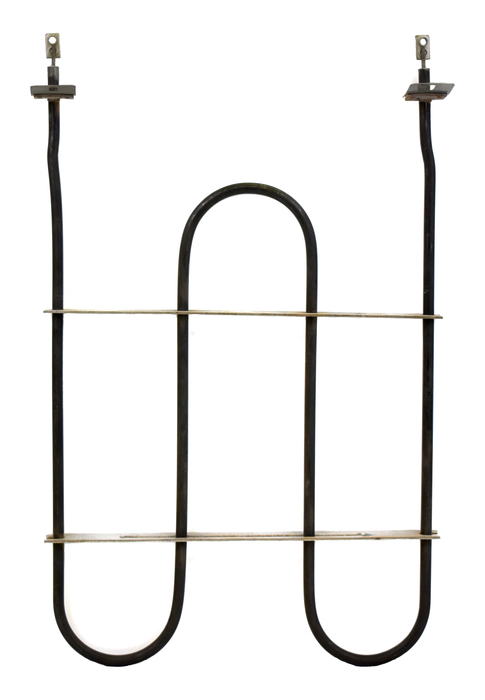

Therm Coil Drawing No.: 366R-4205-003 Therm Coil Model No.: TC-4822
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Roper/Kenmore: 239082
Whirlpool: CH4822, 457764
Other: TS849, TS849/4822, AP3086951, AP2603469, AP4889195
- 2500 W @ 240 V Rating.
-

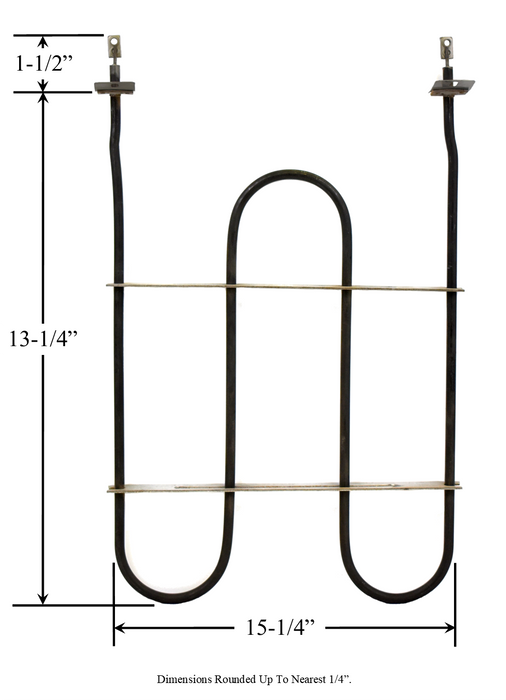

Approx. Overall Size: 15-1/4" Width x 13-1/8" Length From Back Of Element To Mounting Brackets x 1-1/2" Insert From Bracket To Terminal Ends.

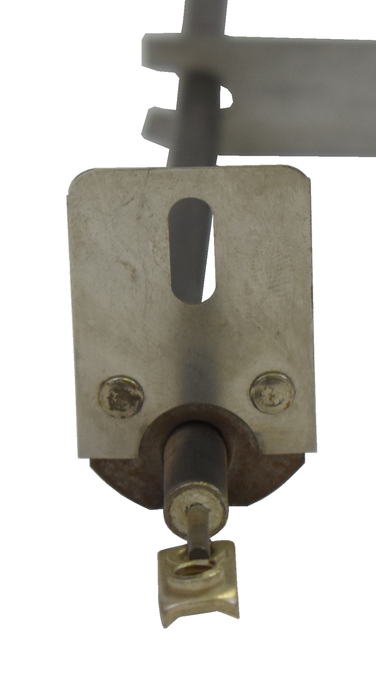

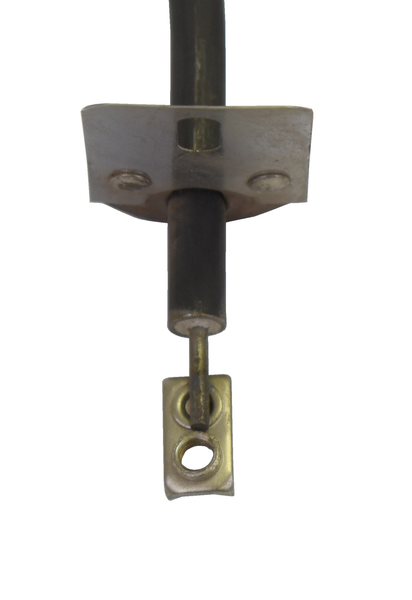

- Threaded Screw-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
- Used In Roper Appliance Model Numbers:
H9608W0, N9608W0
