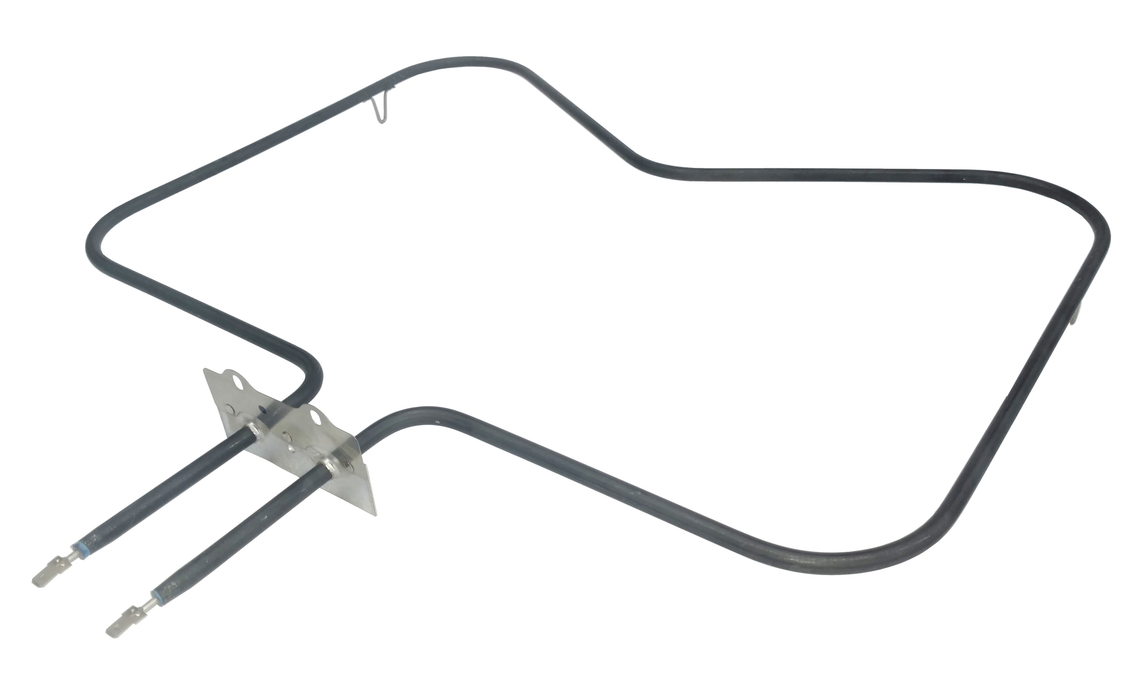

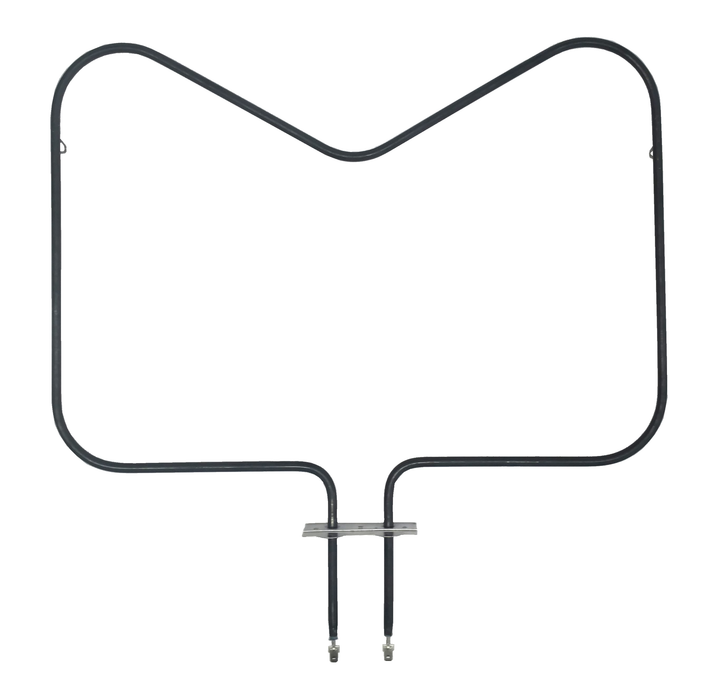

Model TC-4825: Whirlpool 4330446 Range/Oven Bake Replacement Element, 2,500 W @ 240 V

Discounted price $ 63.88 List price $ 75.15

Therm Coil Drawing No.: 366R-3023-001      Therm Coil Model No.: TC-4825


HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Kenmore / Roper: 324181, 309359

Kenmore / Roper / Whirlpool: 4330446, 309359, 4353742, 4354636, 4354637

Other: CH4825, TJ90CH4825, AP4618971, AP3423949, AP3103992, AP4502563, 456770, RP792, RP828, TS4825, TS4825/792, TS792, TS792/4825, TS828, YCH4825

    • 2500 W @ 240V Rating

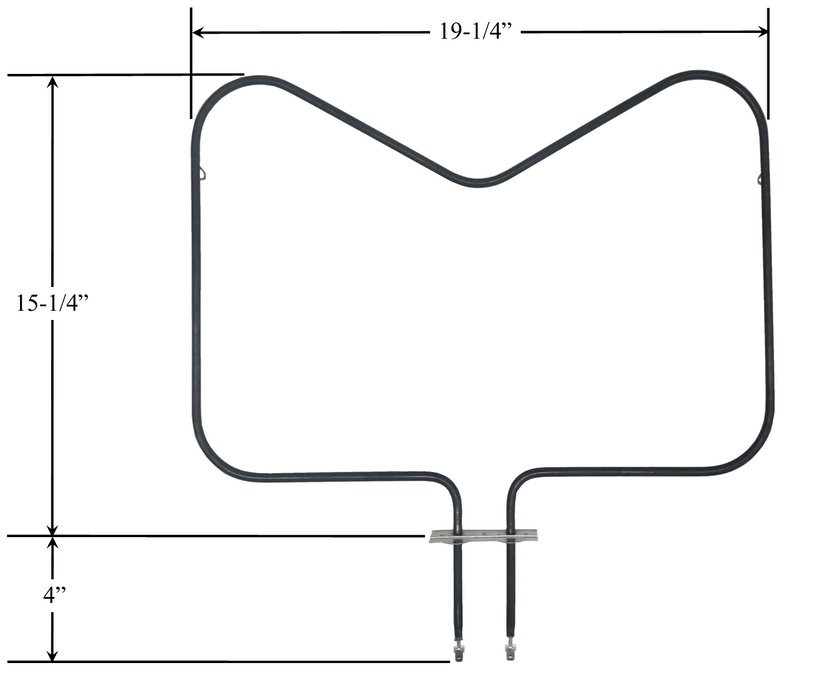

    • Overall Size: 19-1/4" Width x 15-1/4" Back Of Element To Mounting Brackets x 1-3/4" Center-to-Center Terminal Width

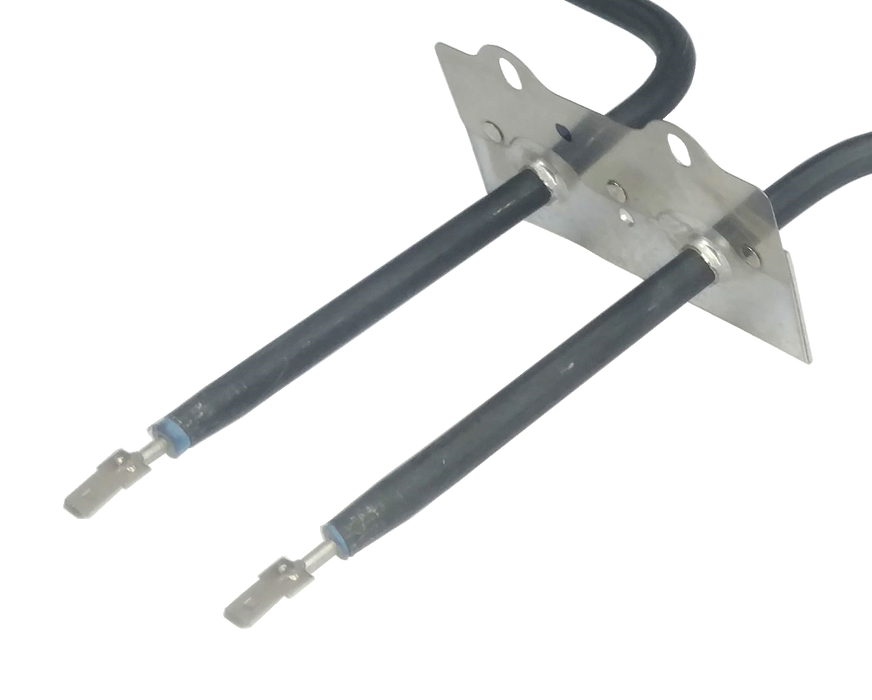

    • Male Quick-Connect Push-In Terminals
    • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,  and other Ranges And/Or Ovens:

      Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.

    • Fits The Following Roper Oven/Range Model Numbers:

    2763W0A, 2893W0A


      Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
