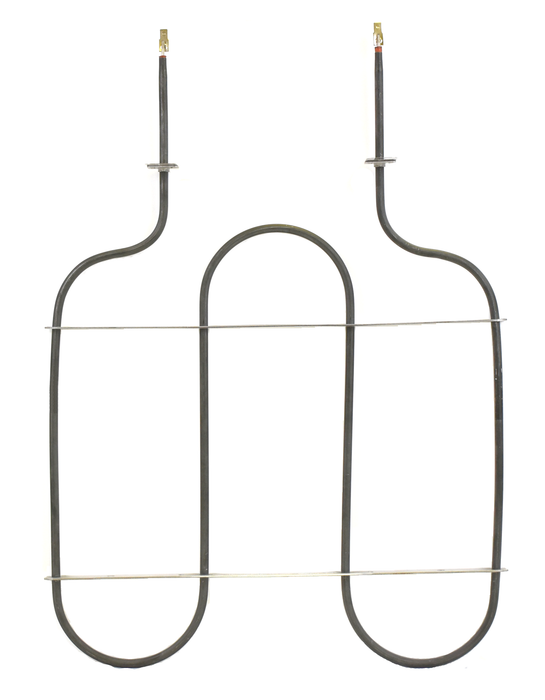

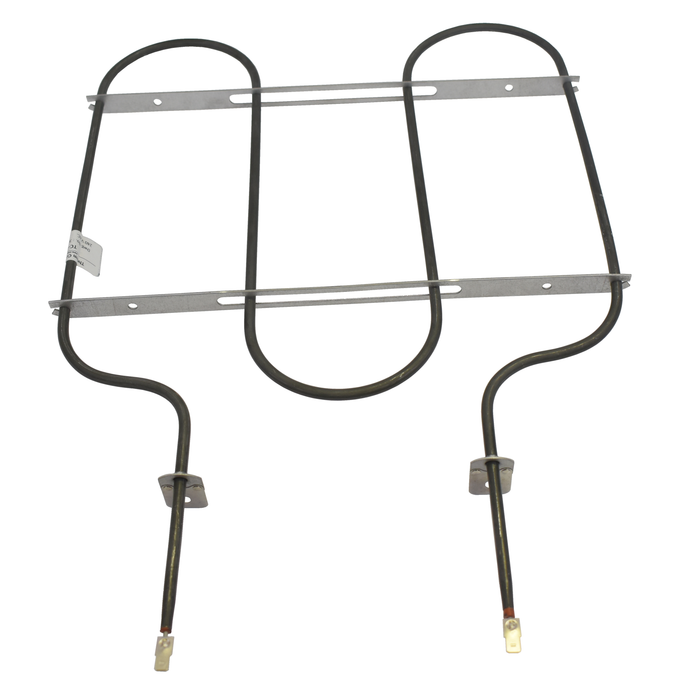

Model TC-4826: Whirlpool 4332355 / G.E & Kenmore & Roper 324168 Equivalent Range/Oven Broil Replacement Element, 3,400W @ 240V

Discounted price $ 44.20 List price $ 52.00

Therm Coil Drawing No.: 366R-4207-003      Therm Coil Model No.: TC-4826

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

G.E.: 309360, 316185, 324168

Kenmore / Roper / Whirlpool: 4332355, 324168, 309360, 316185, 4353656

Other: CH4826, 029-874826-001, 874826-001, 457860, RP793, RP831, RP851, TS4826, TS4826/793, TS793, TS793/4826, TS831, TS851, YCH4826, AP2608085, AP3139118, AP4620401, AP3421570, AP3761042, AP4618972, AP338947, 568888, 512225, 977113, 115648

  • 3400 W @ 240 V
  • Approximate Overall Size: 13-1/4" Wide x 16" Length From Back Of Element To Mounting Bracket x 4" Insert From Bracket To Terminal Ends x 7" Center-to-Center Terminal Width

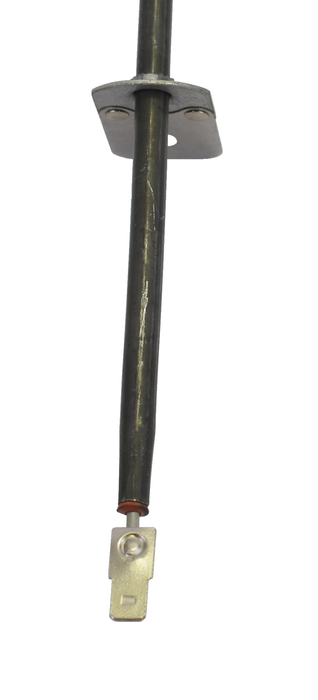

  • Push-In 1/4" Male Quick-Connect Terminals
  • Used in various models of Roper, Kenmore/Sears, Whirlpool, Magic Chef, Frigidaire, Maytag, KitchenAid, Jenn-Air, Amana, Admiral, Norge, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.

 HELPFUL HINT: Use CTRL+F to use the search function for your part number.

  • Compatible With Appliance Model Numbers:

2763W0A, 2893W0A, 2763*0A, 2763W0A, 9119307914, 9119308211, 9119328110, 9119328111, 9119338110, 9119338111, 9119338210, 9119348110, 9119348111, 9119348210, 9119348211, 9119368110, 9119368114, 9119368310, 9119378310, 9119388111, 9119388112, 9119388310, 9119858310, 9119878310, 9119898312, 9119307811, 9119307812, 9119307910, 9119307912, 9119328010, 9119337811, 9119337812, 9119337910, 9119337912, 9119347811, 9119347910, 9119347911, 9119348010, 9119367910, 9119368010, 9119378010





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
