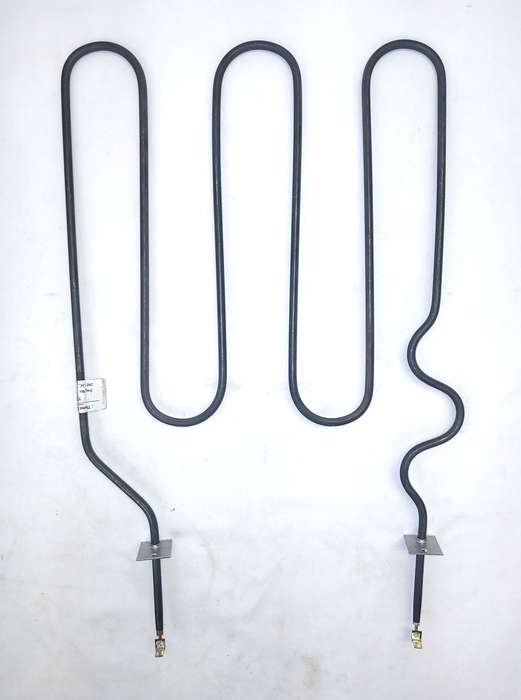

Therm Coil Drawing No.: 366R-3097-003 Therm Coil Model No.: TC-4827
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
106-975MR, 1938-320, 1938320, CH4827, 115649, 456403, TS4827, YCH4827, AP3768112
- Rated: 2750 W @ 240 V
- Approximate Overall Size: 12-1/8" Wide x 16" Length From Back Of Element To Mounting Bracket x 3-1/4" Insert From Bracket To Terminal Ends x 9-7/8" Center-to-Center Terminal Width.

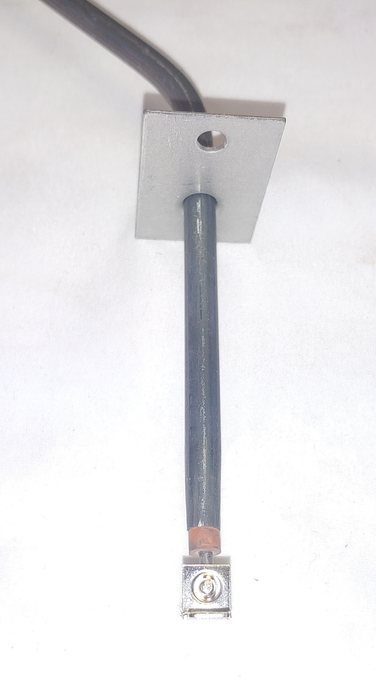

- Right-angle 1/4" Male Push-In Quick-connect Terminals
- Used in various models of Magic Chef, Whirlpool, Kenmore/Sears, Kelvinator, Frigidaire, Electrolux, Gibson, Westinghouse, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.
