Model TC-4828: Whirlpool CH4828 / Magic Chef 1938-323 Equivalent Range/Oven Broil Replacement Element, 2,500W @ 240V

Discounted price $ 61.84 List price $ 72.75

Therm Coil Drawing No.: 366R-3098-003      Therm Coil Model No.: TC-4828


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Magic Chef: 106-385M, 1938-323

Whirlpool: CH4828, 456411

Other: 1938-323, 1938292, 1938309, 1938323, AP3956021

  • 2500 W @ 240 V Rating.

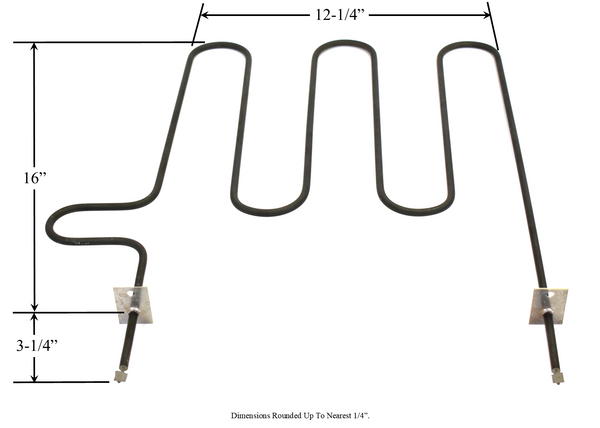

  • Approx. Overall Size: 12-1/8" Width x 16" Length From Back Of Element To Mounting Brackets x 3-1/8" Insert From Bracket To Terminal Ends.

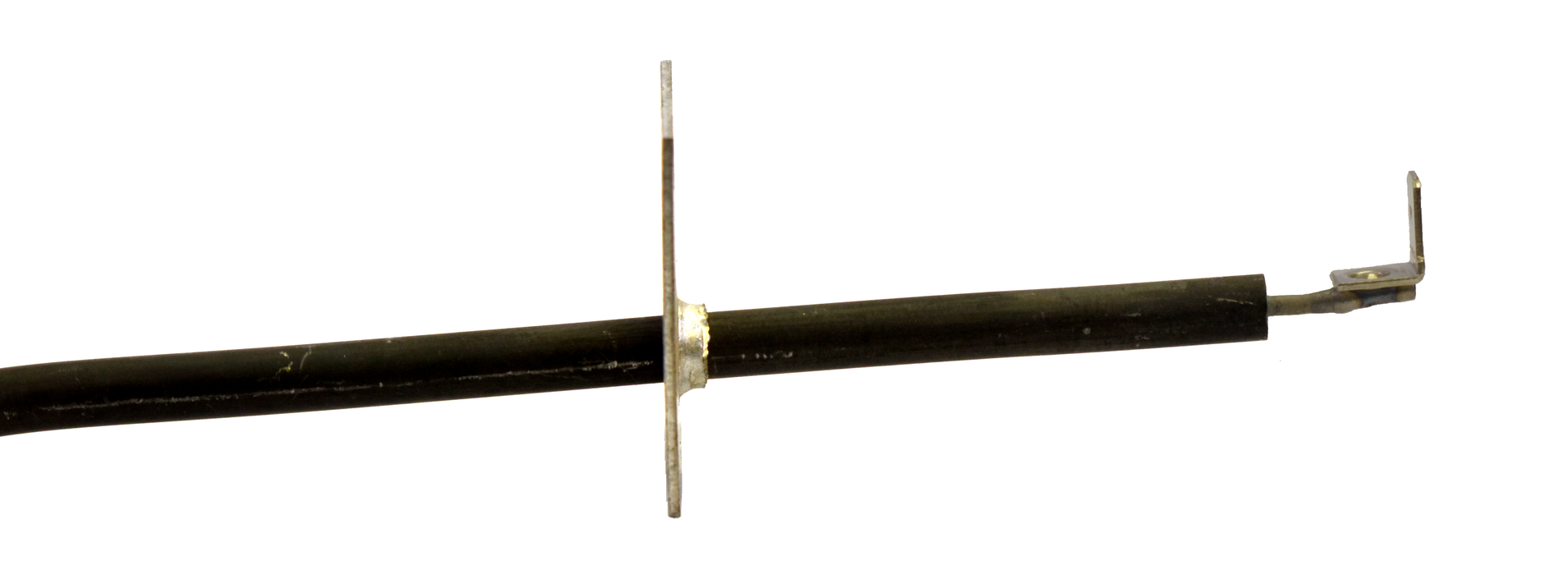

  • Right-Angle Male Quick-Connect Push-In Terminals
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
