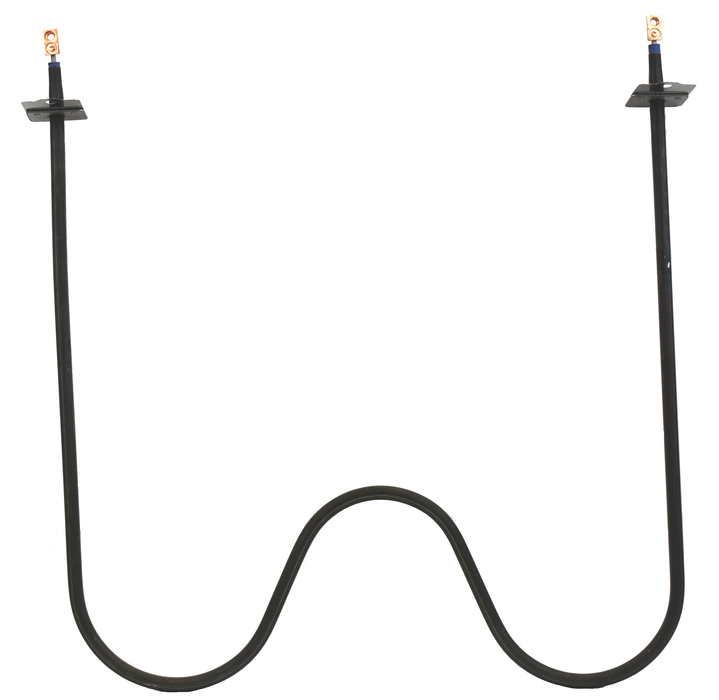

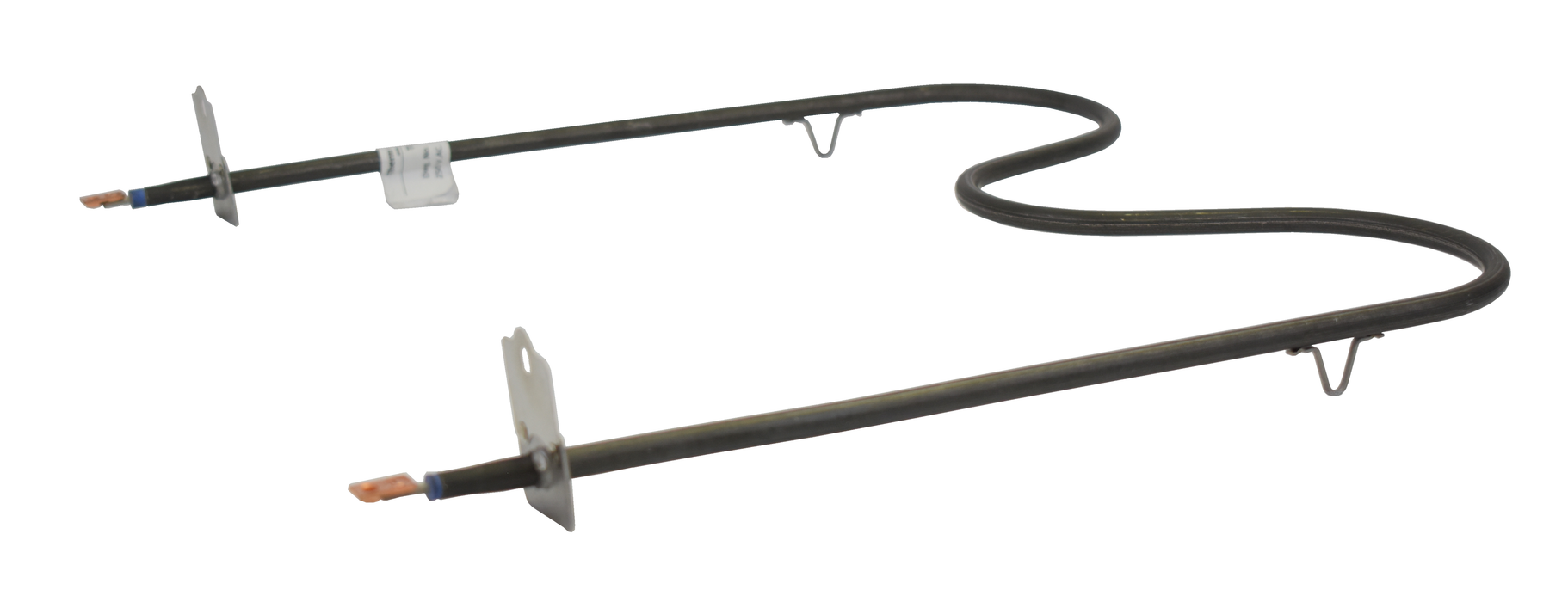

Therm Coil Drawing No.: 366R-4002-003 Therm Coil Model No.: TC-4832
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
Sunray Stove: 03002, 03002-04, 74098-01
Whirlpool: CH4832, 468462
Other: TS4832, YCH4832, 115654. AP3086957, AP3843818
- Rated: 1900 W @ 250 V

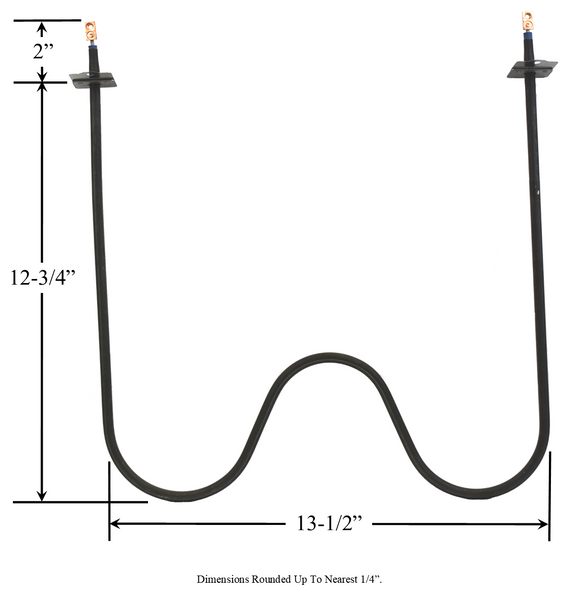

- Approximate Overall Size: 13-1/2" Wide x 12-3/4" Length From Back Of Element To Mounting Bracket x 1-7/8" Insert From Bracket To Terminal Ends

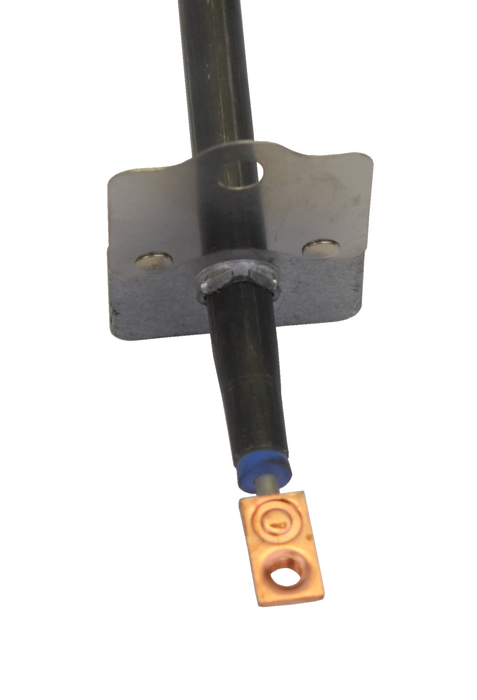

- Screw-In Threaded Terminals
- Used in various models of Sunray, Kenmore/Sears, Kelvinator, Whirlpool, Frigidaire, Electrolux, Gibson, Westinghouse, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.
