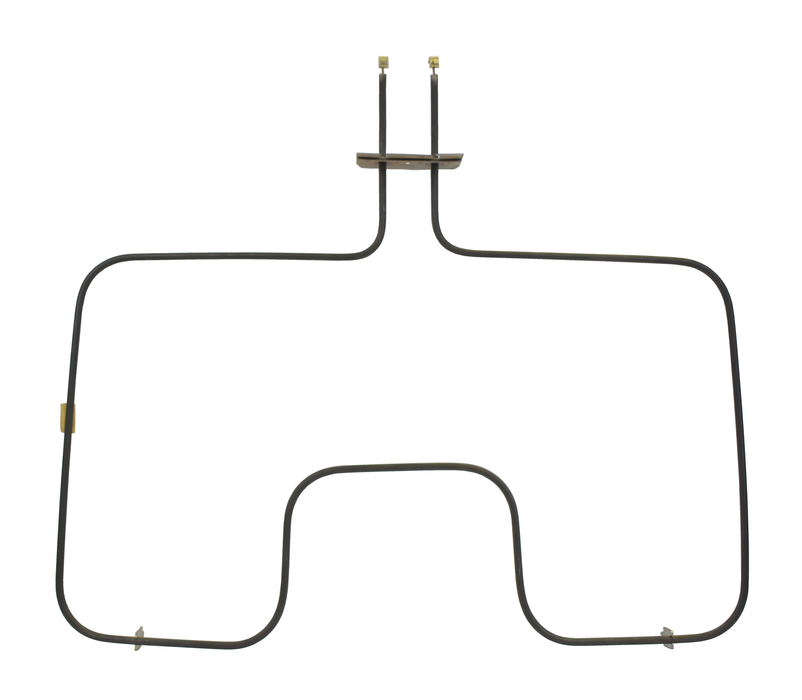

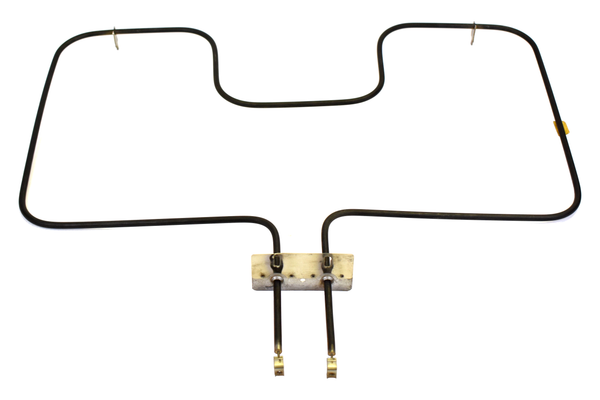

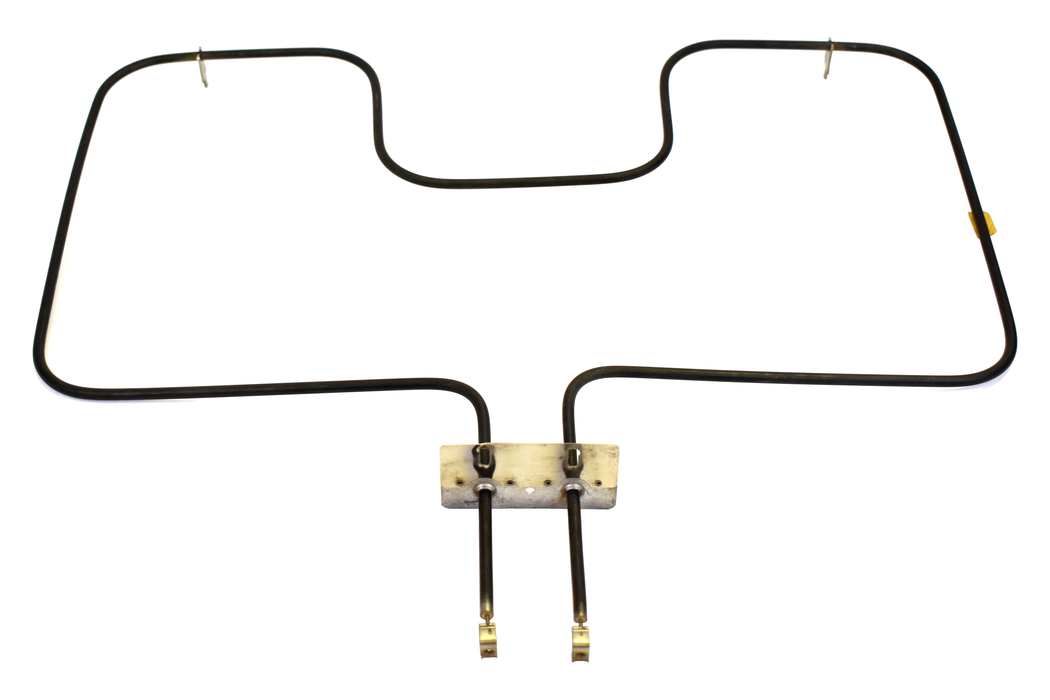

Therm Coil Drawing No.: 366R-4009-003 Therm Coil Model No.: TC-4842
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Boston Stove: 43E4293
Whirlpool: CH4842, 456569
Other: AP3086966, AP3956023
- 3000 W @ 240 V Rating.

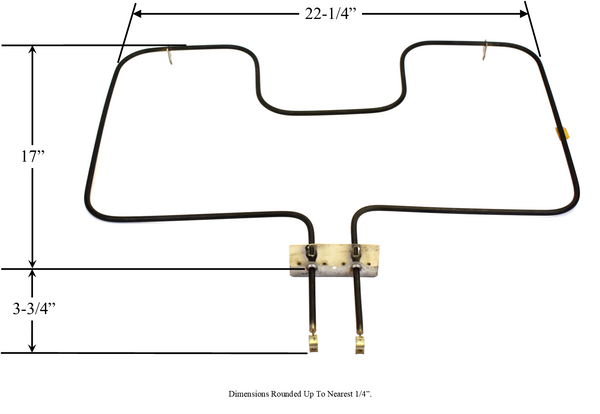

- Approx. Overall Size: 22-1/4" Width x 17" Length From Back Of Element To Mounting Brackets x 3-5/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

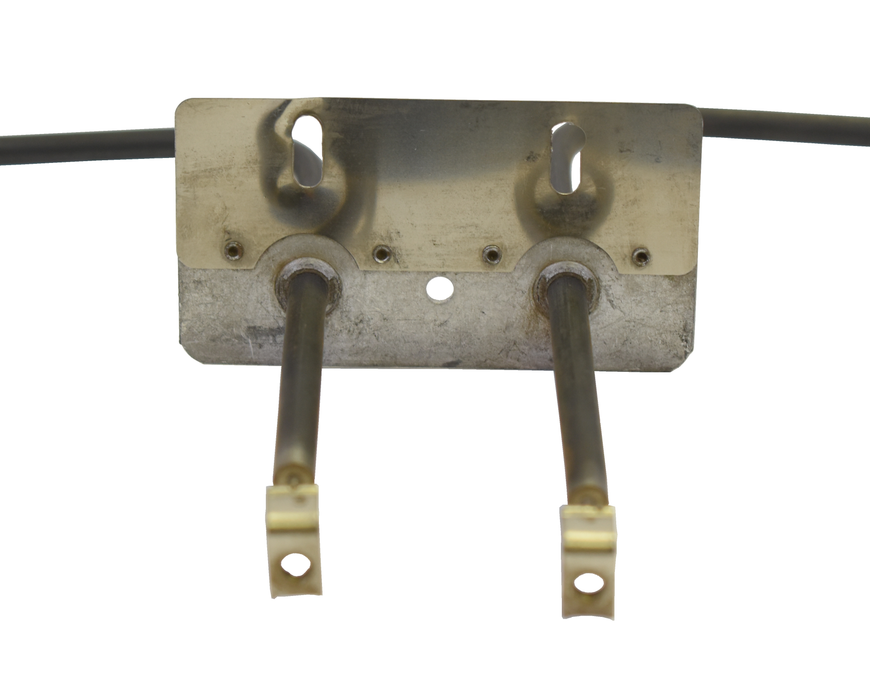

- Threaded Screw-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
