Model TC-4843: Preway: K14242 / Whirlpool CH4843 Equivalent Range/Oven Vintage Broil Replacement Element, 3,500W @ 250V

Discounted price $ 66.47 List price $ 78.20

Therm Coil Drawing No.: 366R-4010-003      Therm Coil Model No.: TC-4843


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Distinctive Appliance: K14242

Preway: K14242

Whirlpool: CH4843, 456577

Other: TS823, YCH4843, AP3843842, AP3086967

  • 3500 W @ 250 V Rating.

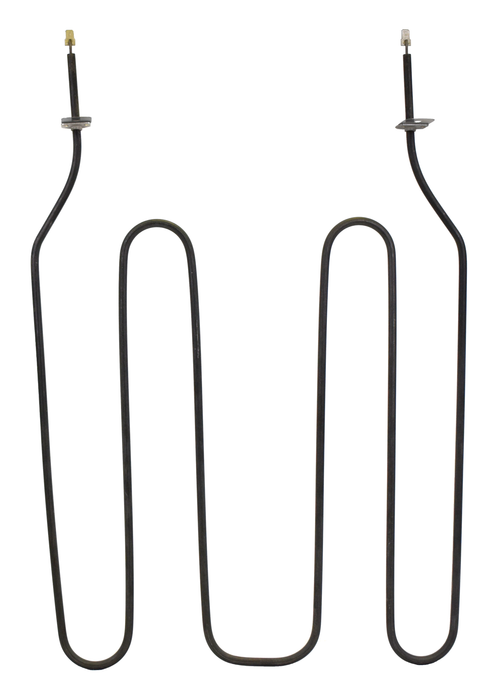

  • Approx. Overall Size: 11-1/2" Width x 16-5/8" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends x 7-3/4" Center-to-Center Terminal Width.

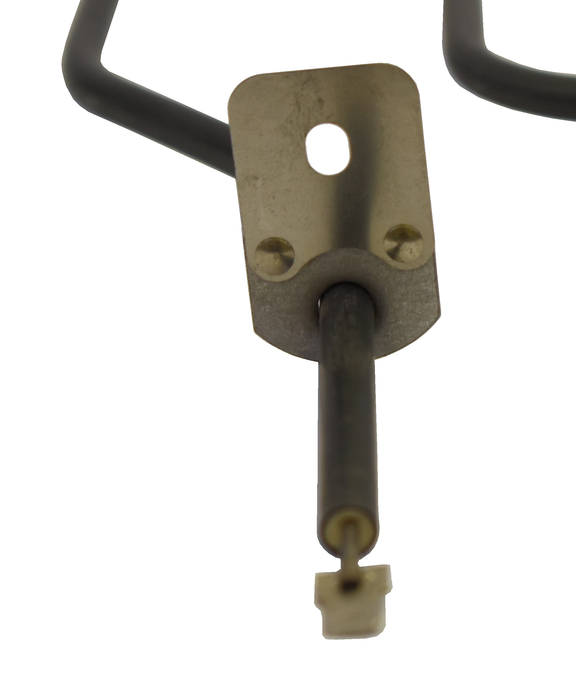

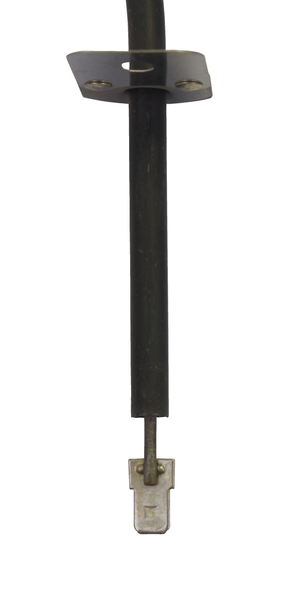

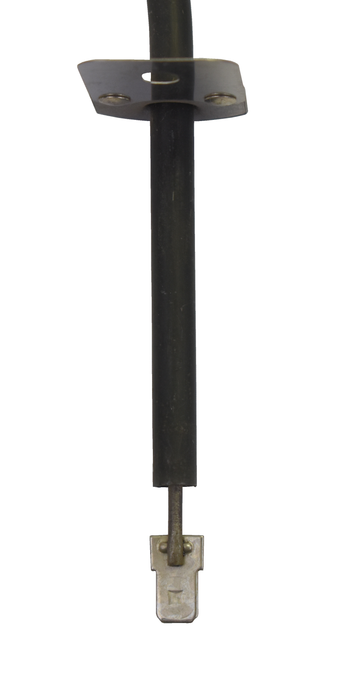

  • Threaded Screw-In Terminals
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
