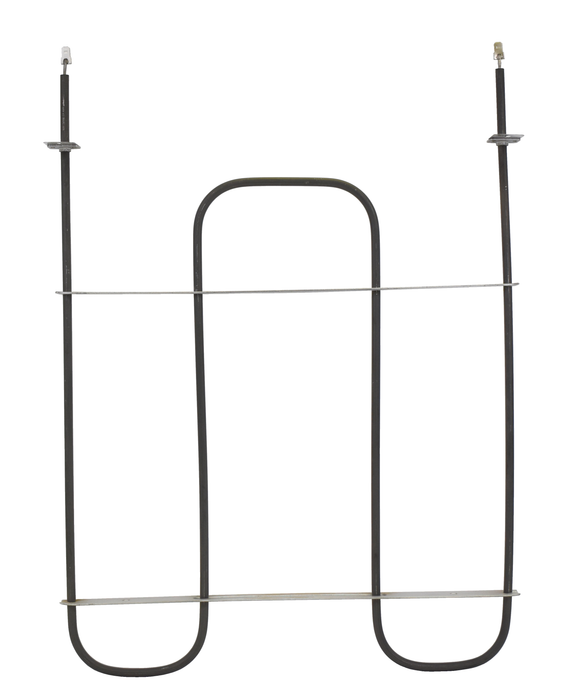

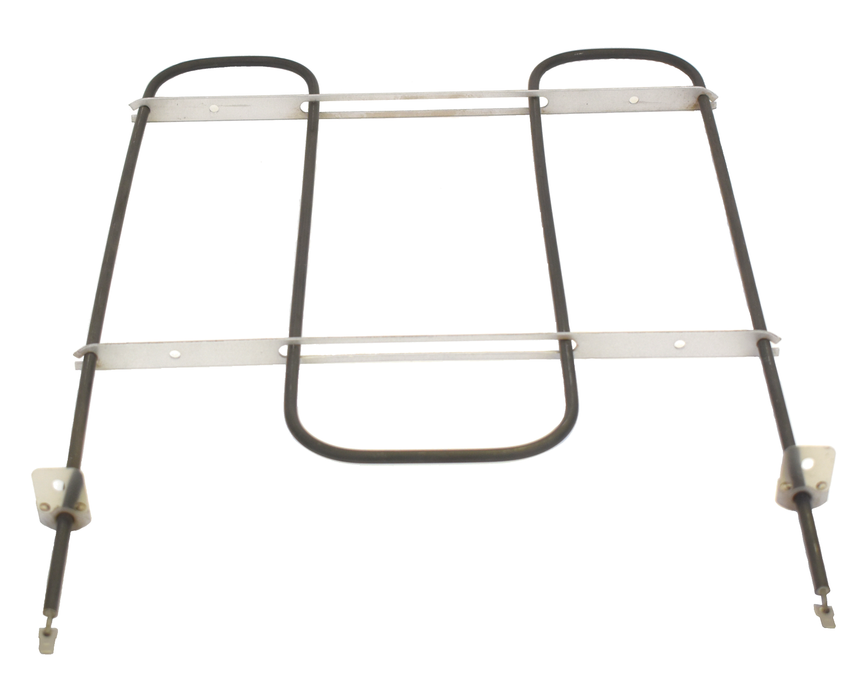

Model TC-4849: GE / Whirlpool / Roper / Kenmore: 293996 Equivalent Range/Oven Broil Replacement Element, 3,400W @ 208V

Sale price $ 83.56 Regular price $ 98.30

Therm Coil Drawing No.: 366R-4013-003      Therm Coil Model No.: TC-4849

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

GE / Whirlpool / Roper / Kenmore: 293996

Other: CH4849, 457676, YCH4849, AP3086973, AP3843819, AP4615291, AP4615292, AP2602262

  • 3400 W @ 208 V Rating.

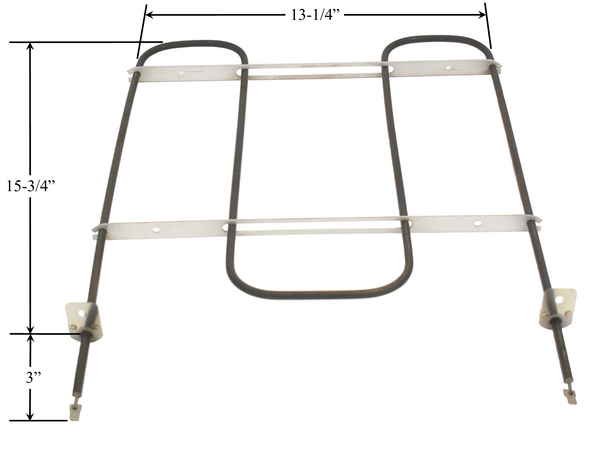

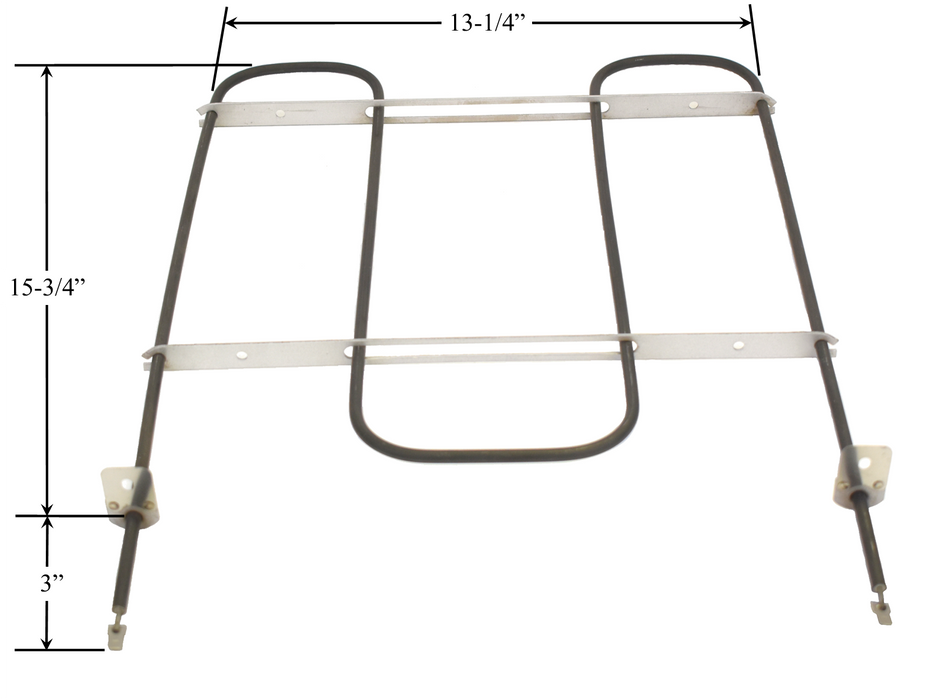

  • Approx. Overall Size: 13-1/4" Width x 15-3/4" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends

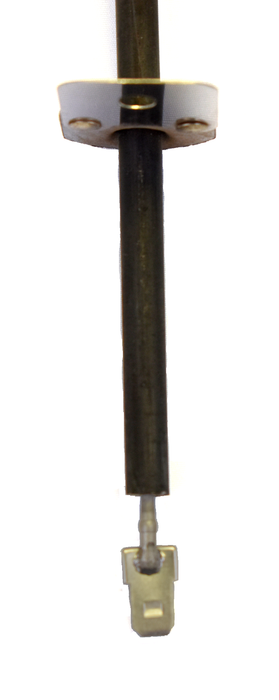

  • Male quick-Connect Push-In Terminals
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

647.6217410, 647.6217411, 647.6217412, 647.6217416, 647.6217417, 647.6217420, 647.6217421, 647.6217422, 647.6217426, 647.6217427, 647.6217440, 647.6217441, 647.6217442, 647.6217446, 647.6217447, 647.6217460, 647.6217461, 647.6217462, 647.6217466, 647.6217467, 647.6217510, 647.6217520, 647.6217540, 647.6217560, 647.6227410, 647.6227411, 647.6227412, 647.6227416, 647.6227417, 647.6227420, 647.6227421, 647.6227422, 647.6227426, 647.6227427, 647.6227440, 647.6227441, 647.6227442, 647.6227446, 647.6227447, 647.6227460, 647.6227461, 647.6227462, 647.6227466, 647.6227467, 647.6227510, 647.6227520, 647.6227540, 647.6227560, 647.6257410, 647.6257411, 647.6257412, 647.6257416, 647.6257417, 647.6257420, 647.6257421, 647.6257422, 647.6257426, 647.6257427, 647.6257440, 647.6257441, 647.6257442, 647.6257446, 647.6257447, 647.6257460, 647.6257461, 647.6257462, 647.6257466, 647.6257467, 647.6257510, 647.6257520, 647.6257540, 647.6257560, 647.6267410, 647.6267411, 647.6267412, 647.6267416, 647.6267417, 647.6267420, 647.6267421, 647.6267422, 647.6267426, 647.6267427, 647.6267440, 647.6267441, 647.6267442, 647.6267446, 647.6267447, 647.6267460, 647.6267461, 647.6267462, 647.6267466, 647.6267467, 647.6267510, 647.6267520, 647.6267540, 647.6267560, 647.6277410, 647.6277411, 647.6277412, 647.6277416, 647.6277417, 647.6277420, 647.6277421, 647.6277422, 647.6277426, 647.6277427, 647.6277440, 647.6277441, 647.6277442, 647.6277446, 647.6277447, 647.6277460, 647.6277461, 647.6277462, 647.6277466, 647.6277467, 647.6287410, 647.6287411, 647.6287412, 647.6287416, 647.6287417, 647.6287420, 647.6287421, 647.6287422, 647.6287426, 647.6287427, 647.6287440, 647.6287441, 647.6287442, 647.6287446, 647.6287447, 647.6287460, 647.6287461, 647.6287462, 647.6287466, 647.6287467, 647.6317410, 647.6317411, 647.6317412, 647.6317416, 647.6317417, 647.6317420, 647.6317421, 647.6317422, 647.6317426, 647.6317427, 647.6317440, 647.6317441, 647.6317442, 647.6317446, 647.6317447, 647.6317460, 647.6317461, 647.6317462, 647.6317466, 647.6317467, 647.6317510, 647.6317520, 647.6317540, 647.6317560, 647.6327410, 647.6327411, 647.6327412, 647.6327416, 647.6327417, 647.6327420, 647.6327421, 647.6327422, 647.6327426, 647.6327427, 647.6327440, 647.6327441, 647.6327442, 647.6327446, 647.6327447, 647.6327460, 647.6327461, 647.6327462, 647.6327466, 647.6327467, 647.6327510, 647.6327520, 647.6327540, 647.6327560, 647.6357410, 647.6357411, 647.6357412, 647.6357416, 647.6357417, 647.6357420, 647.6357421, 647.6357422, 647.6357426, 647.6357427, 647.6357440, 647.6357441, 647.6357442, 647.6357446, 647.6357447, 647.6357460, 647.6357461, 647.6357462, 647.6357466, 647.6357467, 647.6357510, 647.6357520, 647.6357540, 647.6357560, 647.6367410, 647.6367411, 647.6367412, 647.6367416, 647.6367417, 647.6367420, 647.6367421, 647.6367422, 647.6367426, 647.6367427, 647.6367440, 647.6367441, 647.6367442, 647.6367446, 647.6367447, 647.6367460, 647.6367461, 647.6367462, 647.6367466, 647.6367467, 647.6367510, 647.6367520, 647.6367540, 647.6367560, 647.6377311, 647.6377312, 647.6377313, 647.6377314, 647.6377321, 647.6377322, 647.6377323, 647.6377324, 647.6377341, 647.6377342, 647.6377343, 647.6377344, 647.6377361, 647.6377362, 647.6377363, 647.6377364, 647.6377410, 647.6377411, 647.6377412, 647.6377416, 647.6377417, 647.6377420, 647.6377421, 647.6377422, 647.6377426, 647.6377427, 647.6377440, 647.6377441, 647.6377442, 647.6377446, 647.6377447, 647.6377460, 647.6377461, 647.6377462, 647.6377466, 647.6377467, 647.6387310, 647.6387311, 647.6387312, 647.6387313, 647.6387314, 647.6387320, 647.6387321, 647.6387322, 647.6387323, 647.6387324, 647.6387340, 647.6387341, 647.6387342, 647.6387343, 647.6387344, 647.6387360, 647.6387361, 647.6387362, 647.6387363, 647.6387364, 647.6387410, 647.6387411, 647.6387412, 647.6387416, 647.6387417, 647.6387420, 647.6387421, 647.6387422, 647.6387426, 647.6387427, 647.6387440, 647.6387441, 647.6387442, 647.6387446, 647.6387447, 647.6387460, 647.6387461, 647.6387462, 647.6387466, 647.6387467, 647.9167311, 647.9167312, 647.9167321, 647.9167322, 647.9167341, 647.9167342, 647.9167361, 647.9167362, 647.9207310, 647.9207311, 647.9207312, 647.9207313, 647.9207315, 647.9207316, 647.9207317, 647.9207318, 647.9207320, 647.9207340, 647.9207360, 647.9217310, 647.9217311, 647.9217312, 647.9217313, 647.9217314, 647.9227310, 647.9227312, 647.9227313, 647.9227314, 647.9227320, 647.9227322, 647.9227323, 647.9227324, 647.9227340, 647.9227342, 647.9227343, 647.9227344, 647.9227360, 647.9227362, 647.9227363, 647.9227364, 647.9237310, 647.9237311, 647.9237312, 647.9237313, 647.9237314, 647.9237320, 647.9237321, 647.9237322, 647.9237323, 647.9237324, 647.9237340, 647.9237341, 647.9237342, 647.9237343, 647.9237344, 647.9237360, 647.9237361, 647.9237362, 647.9237363, 647.9237364, 647.9257310, 647.9257320, 647.9257340, 647.9257360





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
