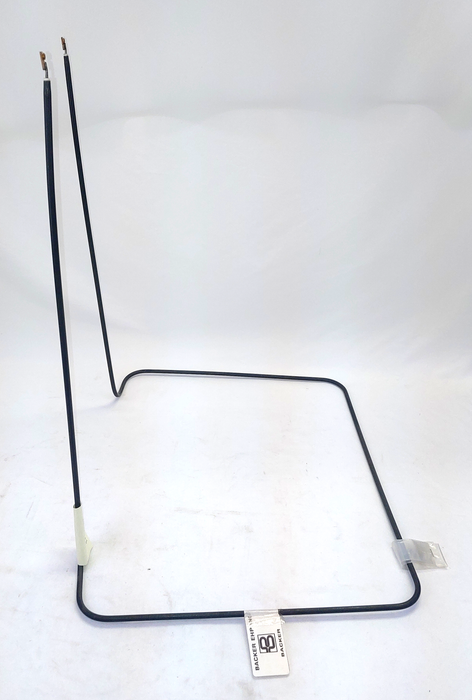

Model TC-4862: Kenmore / Chambers 11117, 17501 Equivalent Range/Oven Broil Replacement Element, 750 W @ 120 V

Discounted price $ 44.37 List price $ 52.20

Therm Coil Drawing No.: 366R-4024-003      Therm Coil Model No.: TC-4862


  • Replacement For Part Numbers

Chambers: 11117, 17501

Kenmore: 17501

Whirlpool: CH4862, 457799

Other: YCH4862. AP3086984, AP4606114, AP3388693, 115681

  • 750W @ 120V
  • Approximate Overall Size: 18-3/4" Wide x 15-3/4" Depth x 22-3/4" Height x 11" Center-to-Center Terminal Width*  (* Due to the flexible nature of this element, this dimension may vary up to ±1", but can easily be restored in assembly.)

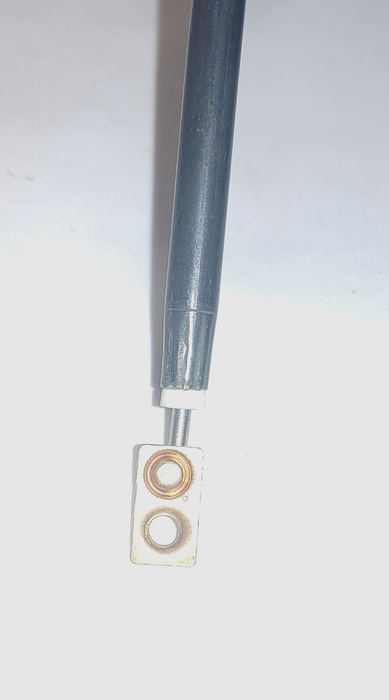

  • #8-32 Threaded Screw-In Terminals
  • Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not All compatible range/oven models are listed.  Use part numbers and dimensions to determine if this baking element will fit your appliance - it's is used on many models.


Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
