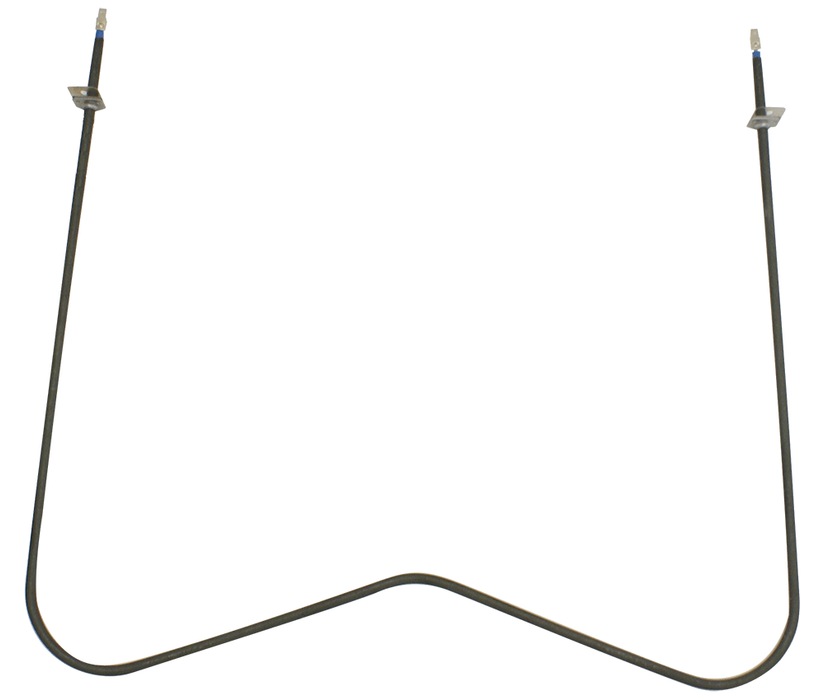

Model TC-4853: Whirlpool/Roper/Kenmore 4328956 Range/Oven Bake Replacement Element, 2,500W/1,875W @ 240V/208V

Sale price $ 64.86 Regular price $ 76.30

Therm Coil Drawing No.: 366R-3086-003      Therm Coil Model No.: TC-4853

Description

  • Replacement For Part Numbers:
  • Kenmore / Roper / Whirlpool: 4328956, 232184, 244659, 277543, 277544, 302248, 303803, 4328581, 4351575, 4351772, 4351860, 4351964, 4351965, 4352982, 4353119

    Other: CH4853, 457570, 202-874853-001, 874853-001, AP3103949, AP3389476, 568358, 115673, 458880, RP855, TS4853, TS4853/836, TS836, TS836/4853, YCH4853

    2500W / 1875W @ 240V / 208V Rating

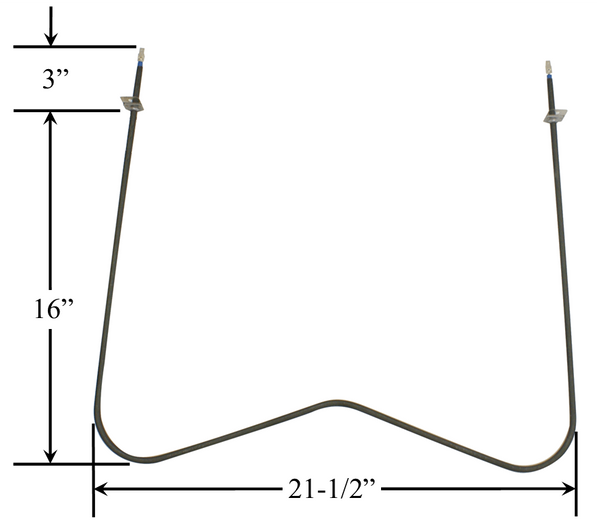

  • Approximate Overall Size: 21-3/8" Wide x 16" Length From Back Of Element To Mounting Brackets x 3" Insert (From Bracket To Element Sheath End).
  • Male Quick-Connect Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
