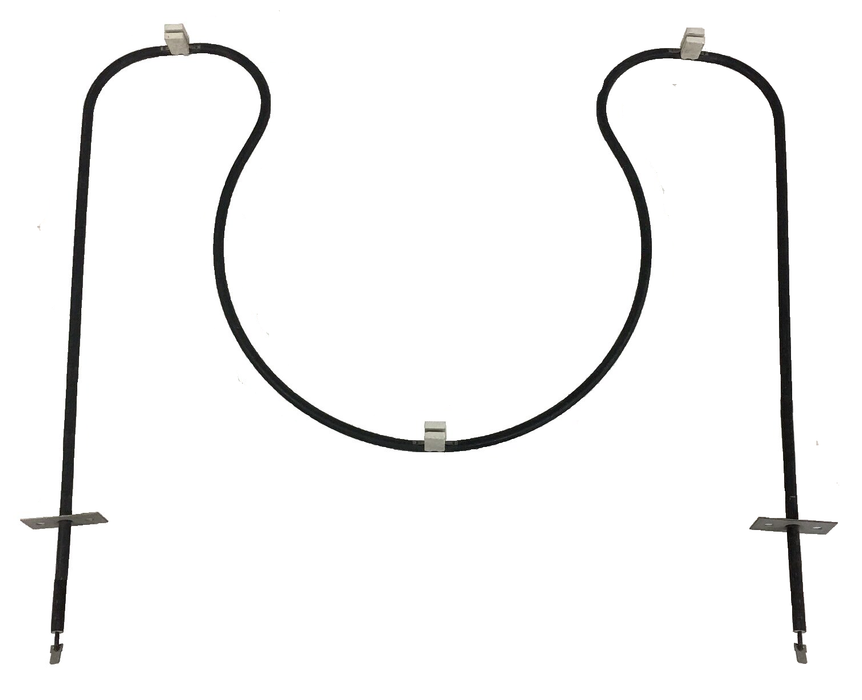

Therm Coil Drawing No.: 366R-4021-003 Therm Coil Model No.: TC-4859
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
304667, 321891, CH4859, YCH4859, AP4827941, AP2602055, AP2607664, AP3086981, AP3843851

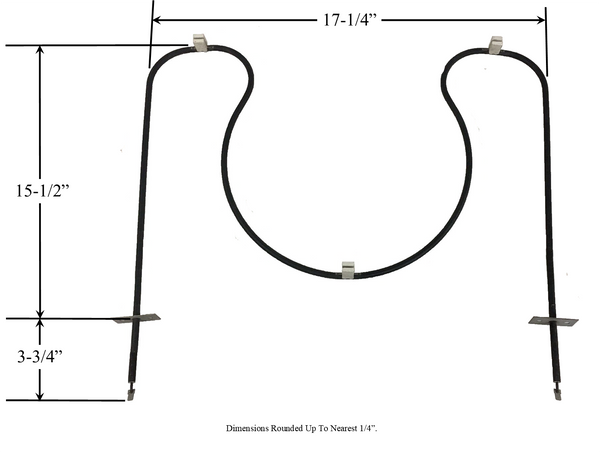

- Approximate Overall Size: 17-1/4" Wide x 15-3/8" Length From Back Of Element To Mounting Bracket x 3-5/8" Insert From Bracket To Terminal Ends
- 1/4" Male Push-In Quick-Connect Terminals
- Used in various models of Whirlpool appliances, including Amana, Whirlpool, Maytag, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.
