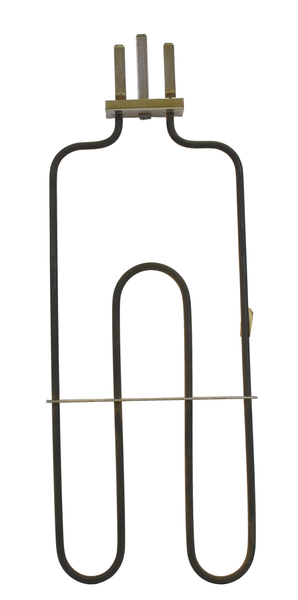

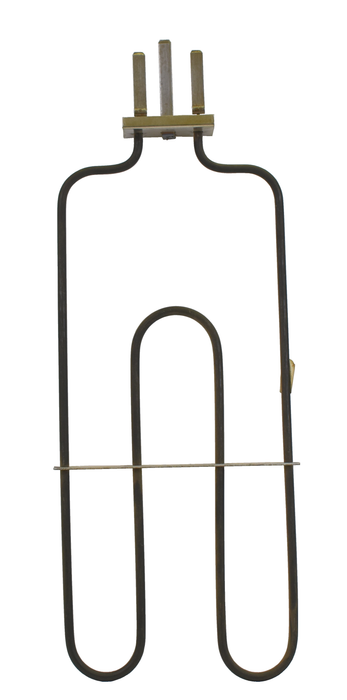

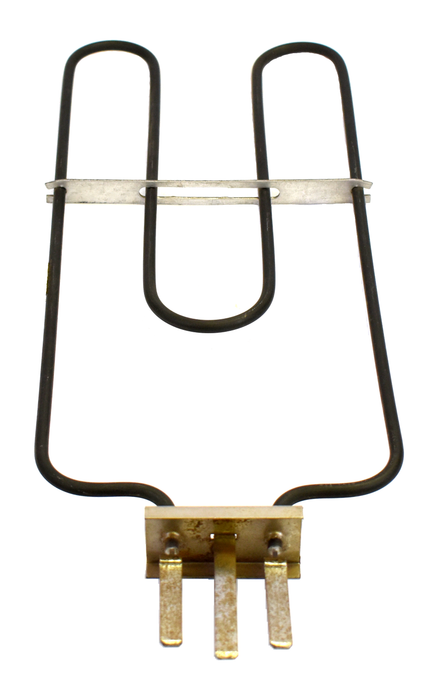

Model TC-4870: Whirlpool CH4870 Equivalent Range/Oven Vintage Broil Replacement Element, 1,500W @ 240V

Discounted price $ 27.20 List price $ 32.00

Therm Coil Drawing No.: 366R-4031-003      Therm Coil Model No.: TC-4870


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Kelvinator / Kenmore:  K1305816, 1305816

Roper / Kenmore: 31326, 31328

Whirlpool:  CH4870, 456753, 029-874870-001, 874870-001

Other:  AP3246011, AP3086991

  • 1500 W @ 240 V Rating

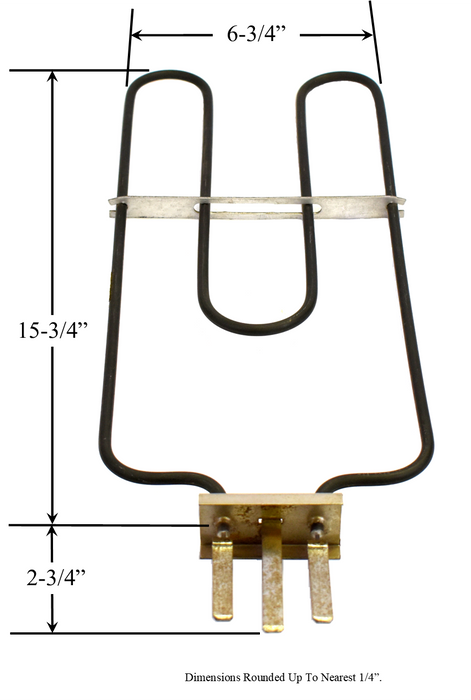

  • Approx. Overall Size: 6-5/8" Width x 15-3/4" Length From Back Of Element To Mounting Brackets x 2-5/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-To-Center Terminal Width.

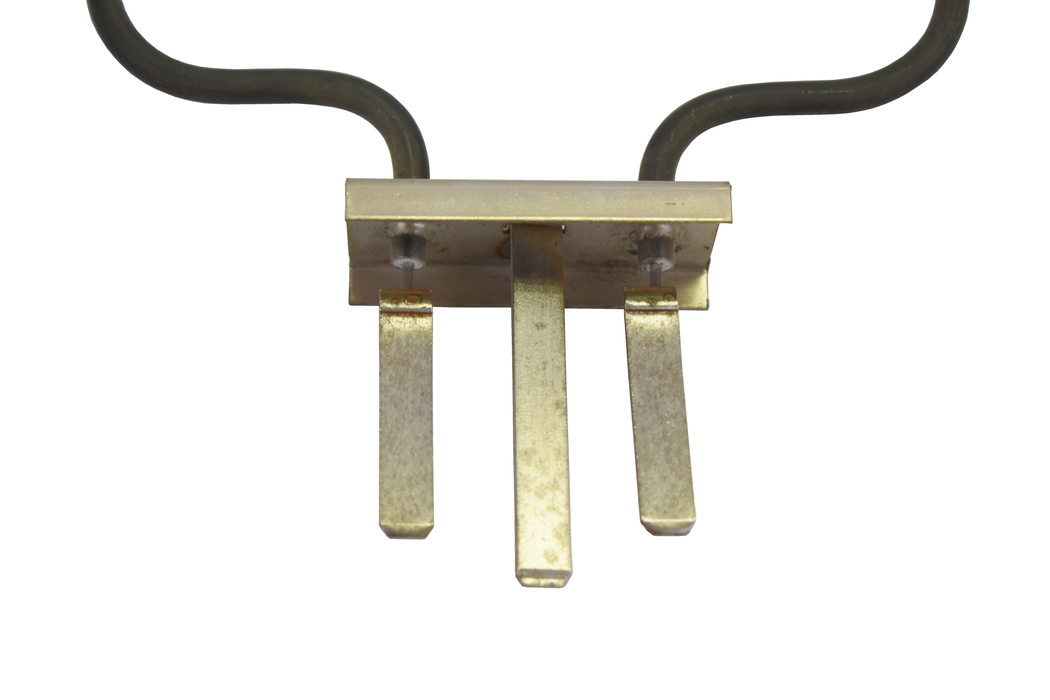

  • Prong Terminals With Ground (All Flat Blades)
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
