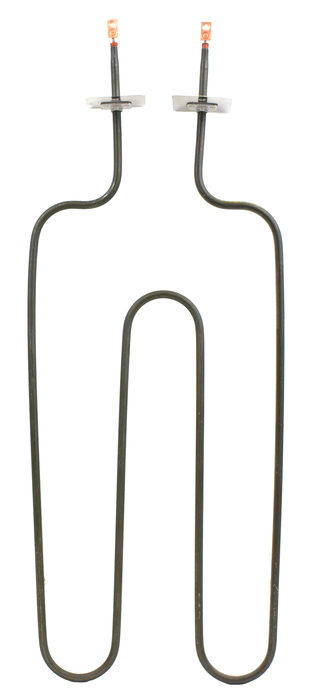

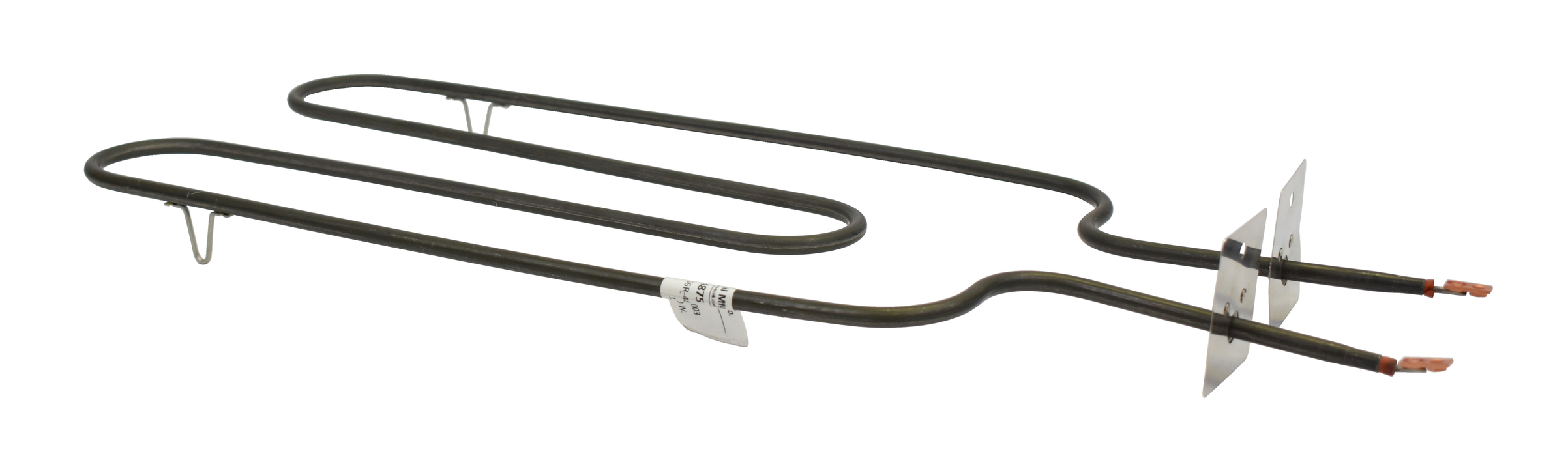

Model TC-4875: Frigidaire 5301311493 / Whirlpool 865971 Equivalent Range/Oven Bake Replacement Element, 1,500W @ 240V

Discounted price $ 67.15 List price $ 79.00

Therm Coil Drawing No.: 366R-4875-003      Therm Coil Model No.: TC-4875

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire / Kelvinator / Kenmore: 5301311493, K1308772, K1311493, K1311568, 1308772, 1311493, 1311568

Whirlpool: 865971, 733260, 834964, 877571

Other: CH4875, 456737, 202-874875-001, 874875-001, AP2592108, AP3007195, AP3389120, 614046, 733260, 115693, F83-355, TS4875, TS4875/848, TS848, TS848/4875, YCH4875, AH397744, EA397744, PS397744

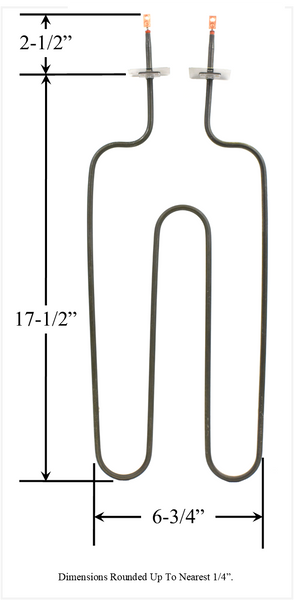

  • Approximate Overall Size: 6-5/8" Wide x 17-1/2" Length From Back Of Element To Mounting Bracket x 2-1/2" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

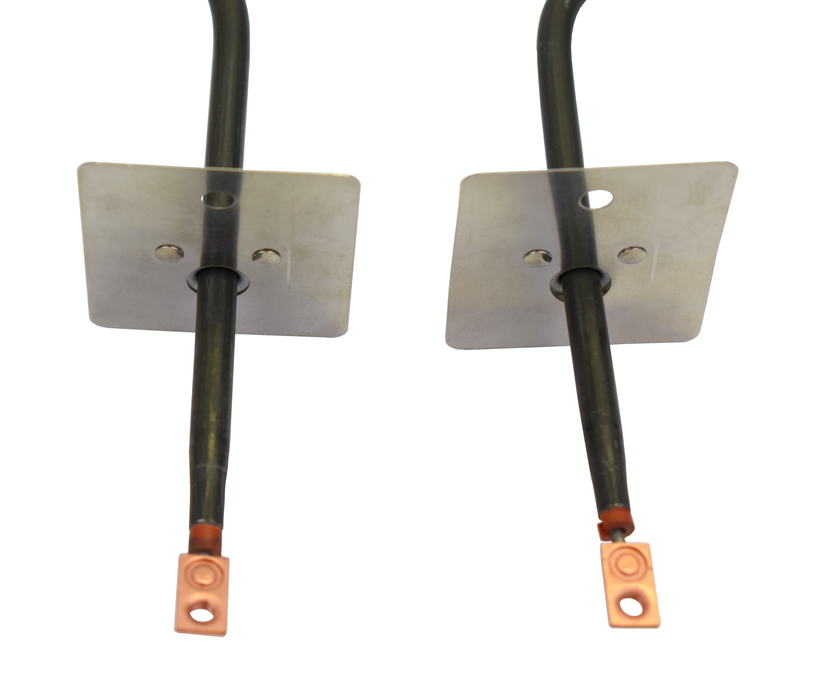

  • Right-Angle Screw-In Terminals
  • Used in various models of  Kenmore/Sears, Kelvinator, Whirlpool, Frigidaire, Electrolux, Gibson, Westinghouse, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.

 HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model number.

  • Used In Appliance Model Numbers:

RF4700XBW2, RF4900XLW0, RF4700XBW3, RF4900XLW2, RF4700XBN0, RF4700XBN1, RGE4900W1, RF4700XBN2, RF4700XBN3, RF4700XBW0, RF4700XBW1, RF4700XWN0, RF4700XWN1, RF4700XWN2, RF4700XWN3, RF4700XWW0, RF4700XWW1, RF4700XWW2, RF4700XWW3, RF4900XLW1, RF4900XLW3, RF4900XLW4



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
