Model TC-4880: Frigidaire / Kelvinator (Sears) / Kenmore 5308003347 & Whirlpool WP866375 Equivalent Range/Oven Bake Replacement Element, 2,400/3,195W @ 208/240V

Sale price $ 63.45 Regular price $ 74.65

Therm Coil Drawing No.: 366R-3067-003      Therm Coil Model No.: TC-4880

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Frigidaire / Kelvinator (Sears) / Kenmore: 5308003347, 08003347, 08008245, 8003347, 96102P01, K001313169, K001313171, K1300718, K1303562, K1303564, K1307473, K1307475, K1310230, K1311484, K1311564, K1311566, K1313169, K1313171

Whirlpool: WP866375, 866375, 14212729, 868969, CH4880, 202-874880-001, 874880-001, 456745

Other: AP6013578, AP2592319, AP2156812, AP3087001, AP3389122, 733355, 517, 115698, PS11746804, AH473450, EA473450, F83-451, M61D48, PS473450, RP834, TS4880, TS4880/834, TS834, TS834/4880, YCH4880

  • 2400/3195 W @ 208/240 V Rating
  • Approx. Overall Size: 19-1/4" Width x 15-5/8" Length From Back Of Element To Mounting Brackets x 13" Center-to-Center Terminal Width (variable due to design) x 2-1/2" From Bracket To Element Sheath End (Before Ceramic And Terminals).

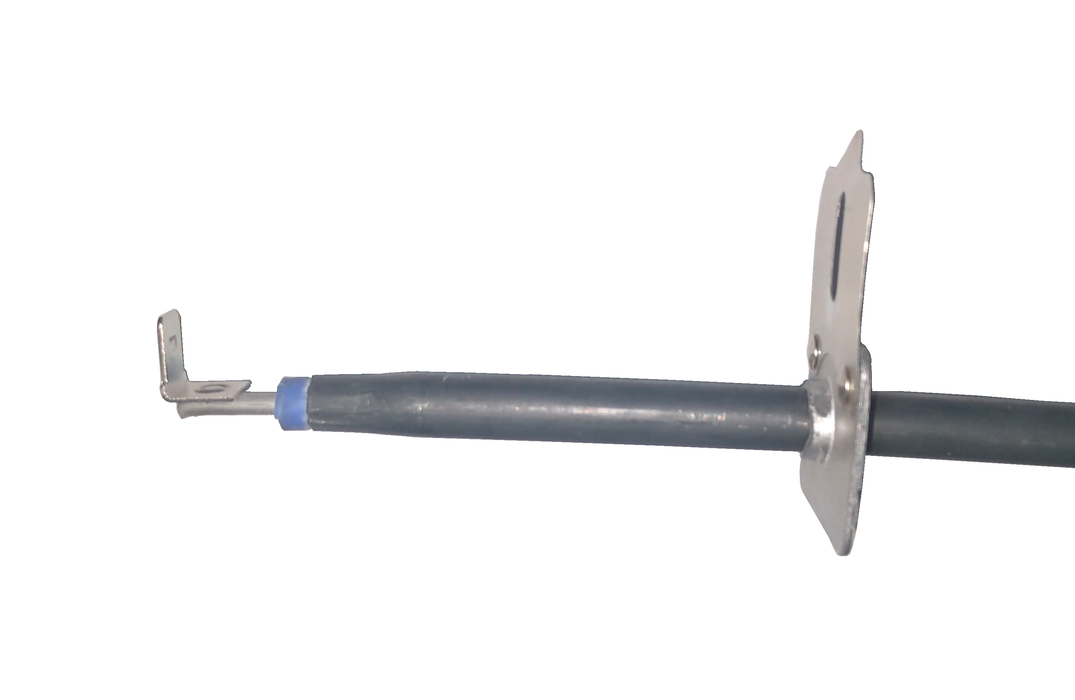

  • Right-Angle Male Quick-Connect Push-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Not All compatible range/oven models are listed.  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:



REG74BCB1, KB663GDM0, KB663GDM2, 6284257590, 6284257591, 6284257592, 6284297590, 6284297591, 6284297592, 6286217100, 6286217120, 6286217140, 6286217160, 6286217210, 6286217220, 6286217240, 6286217260, 6286217310, 6286217313, 6286217320, 6286217323, 6286217340, 6286217343, 6286217360, 6286217363, 6286227100, 6286227120, 6286227140, 6286227160, 6286227210, 6286227220, 6286227240, 6286227260, 6286227310, 6286227313, 6286227320, 6286227323, 6286227340, 6286227343, 6286227360, 6286227363, 6286237100, 6286237120, 6286237140, 6286237160, 6286237210, 6286237220, 6286237240, 6286237260, 6286247000, 6286247020, 6286247040, 6286247060, 6286247100, 6286247120, 6286247140, 6286247160, 6286247210, 6286247220, 6286247240, 6286247260, 6286257000, 6286257020, 6286257040, 6286257060, 6286257100, 6286257120, 6286257140, 6286257160, 6286257210, 6286257220, 6286257240, 6286257260, 6286257310, 6286257313, 6286257320, 6286257323, 6286257340, 6286257343, 6286257360, 6286257363, 6286267000, 6286267020, 6286267040, 6286267060, 6286267100, 6286267120, 6286267140, 6286267160, 6286267210, 6286267220, 6286267240, 6286267260, 6286267310, 6286267313, 6286267320, 6286267323, 6286267340, 6286267343, 6286267360, 6286267363, 6286277100, 6286277120, 6286277140, 6286277160, 6286277210, 6286277220, 6286277240, 6286277260, 6286287100, 6286287120, 6286287140, 6286287160, 6286287210, 6286287220, 6286287240, 6286287260, 6286297310, 6286297311, 6286297313, 6286297315, 6286297320, 6286297321, 6286297323, 6286297325, 6286297340, 6286297341, 6286297343, 6286297345, 6286297360, 6286297361, 6286297363, 6286297365, 6286307310, 6286307311, 6286307313, 6286307315, 6286307320, 6286307321, 6286307323, 6286307325, 6286307340, 6286307341, 6286307343, 6286307345, 6286307360, 6286307361, 6286307363, 6286307365, 6286317210, 6286317220, 6286317240, 6286317260, 6286317310, 6286317313, 6286317320, 6286317323, 6286317340, 6286317343, 6286317360, 6286317363, 6286327210, 6286327220, 6286327240, 6286327260, 6286327310, 6286327313, 6286327320, 6286327323, 6286327340, 6286327343, 6286327360, 6286327363, 6286357210, 6286357220, 6286357240, 6286357260, 6286357310, 6286357313, 6286357320, 6286357323, 6286357340, 6286357343, 6286357360, 6286357363, 6286367210, 6286367220, 6286367240, 6286367260, 6286367310, 6286367313, 6286367320, 6286367323, 6286367340, 6286367343, 6286367360, 6286367363, 6286417310, 6286417311, 6286417313, 6286417315, 6286417320, 6286417321, 6286417323, 6286417325, 6286417340, 6286417341, 6286417343, 6286417345, 6286417360, 6286417361, 6286417363, 6286417365, 6286427310, 6286427311, 6286427313, 6286427315, 6286427320, 6286427321, 6286427323, 6286427325, 6286427340, 6286427341, 6286427343, 6286427345, 6286427360, 6286427361, 6286427363, 6286427365, 6289107100, 6289107120, 6289107140, 6289107160, 6289107210, 6289107220, 6289107240, 6289107260, 6289107510, 6289137100, 6289137120, 6289137140, 6289137160, 6289137210, 6289137211, 6289137213, 6289137220, 6289137221, 6289137223, 6289137240, 6289137241, 6289137243, 6289137260, 6289137261, 6289137263, 6289187510, 6289187540, 6289187560, 6289217510, 6289217540, 6289217560, 6289287410, 6289287415, 6289287420, 6289287440, 6289287460, 6289327210, 6289327220, 6289327240, 628932726, 6289327260, 6289347100, 6289347120, 6289347140, 6289347160, 6289347210, 6289347220, 6289347240, 6289347260, 6289407310, 6289407313, 6289407320, 6289407323, 6289407340, 6289407343, 6289407360, 6289407363, 6289427000, 6289427001, 6289427020, 6289427021, 6289427040, 6289427041, 6289427100, 6289427120, 6289427140, 6289427160, 6289427210, 6289427220, 6289427240, 6289427260, 6289427310, 6289427313, 6289427320, 6289427323, 6289427340, 6289427343, 6289427360, 6289427363, 6289447000, 6289447001, 6289447020, 6289447021, 6289447040, 6289447041, 6289447100, 6289447120, 6289447140, 6289447160, 6289447210, 6289447220, 6289447240, 6289447260, 6289447310, 6289447313, 6289447315, 6289447320, 6289447323, 6289447325, 6289447340, 6289447343, 6289447345, 6289447360, 6289447363, 6289447365, 6289477000, 6289477001, 6289477020, 6289477021, 6289477040, 6289477041, 6289477100, 6289477120, 6289477140, 6289477160, 6289477210, 6289477220, 6289477240, 6289477260, 6289487510, 6289487520, 6289487540, 6289487560, 6289497000, 6289497001, 6289497020, 6289497021, 6289497040, 6289497041, 6289497100, 6289497120, 6289497140, 6289497160, 6289497210, 6289497220, 6289497240, 6289497260, 6289497310, 6289497311, 6289497312, 6289497313, 6289497315, 6289497320, 6289497321, 6289497322, 6289497323, 6289497325, 6289497340, 6289497341, 6289497342, 6289497343, 6289497345, 6289497360, 6289497361, 6289497362, 6289497363, 6289497365, 6289646800, 6289666800, 6289666840, 6289666860, 6289696800, 6289696840, 6289696860, KB443GDM0, KB443GDM1, KB443GDM2, KB663GDM1, KB883GDM1, KB883GDM2, KB883GDM3, KB883GDMO, REG74BCB0, REG77BCB0, RB160PXL4, RB170PXL5, RGE1700P2, RB160PXL0, RB160PXL1, RB170PXL0, RB170PXL4, RB160PXL2, RB160PXL3, RB170PXL1, RB170PXL2, RB170PXL3, RB170PXLW2, RB700PXS0, RHM1870P, RJM1870P, RJM1870P1, REG74BCB1, REG74BCB0, RG74BC0







Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
